HQ Interface Base Board Serial Bluetooth Module For HC-06 HC-05 HC-07

Detail HQ Interface Base Board Serial Bluetooth Module For HC-06 HC-05 HC-07

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK = 10 PCS

Specification:
Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.
With VCC GND TXD RXD foot for the Bluetooth.
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High
level" can control module to re-seach).
Compatible with bluetooth master module". slave module"or master-slave(whole)
module.
Input voltage: 3.3~6V.
Size: 1.55cm*3.98cm.

Note:
Input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly
connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output
"Pulse" ; when bluetooth "connected", output "High level", we can determine the
states from "MCU"
If only the board , No any "Bluetooth Function "

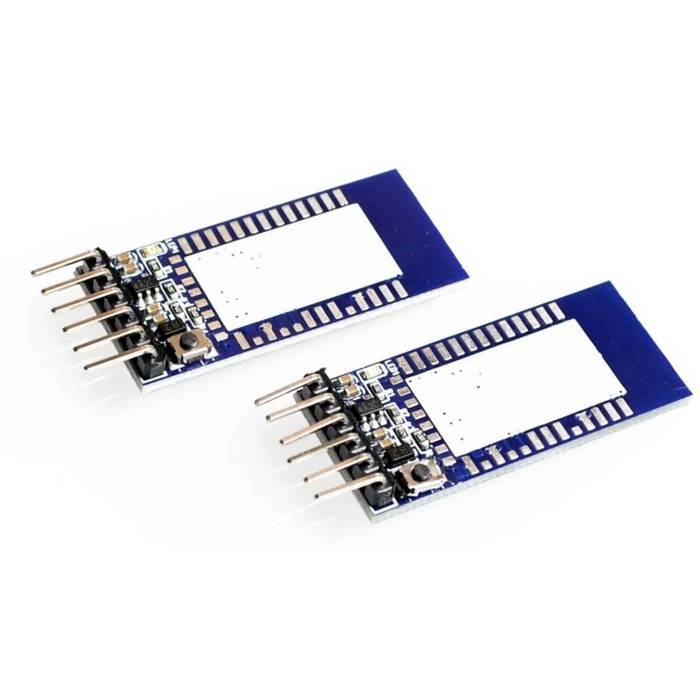

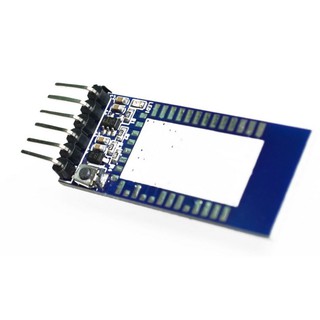

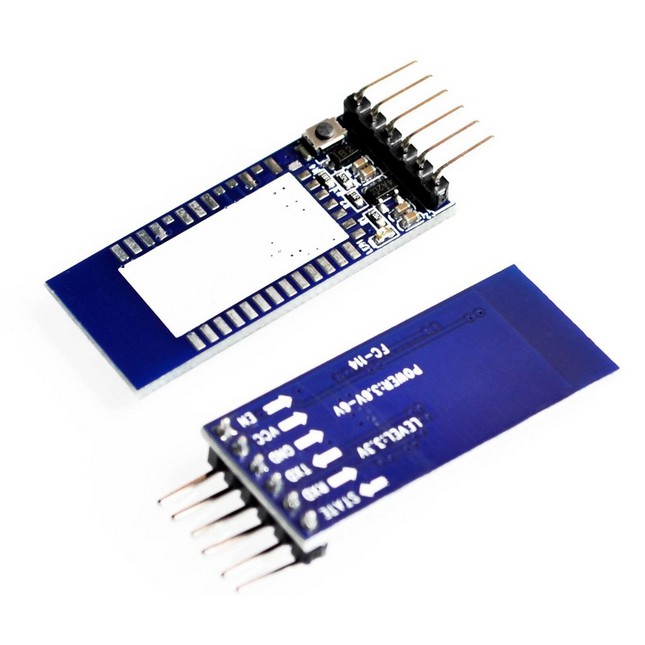

Gambar produk
