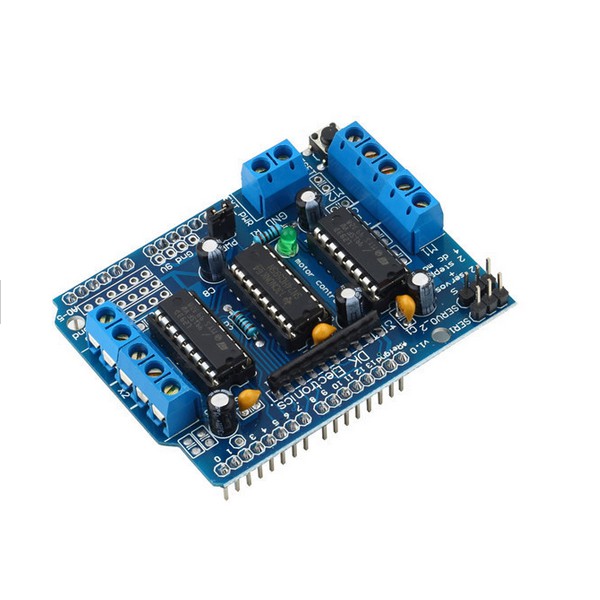

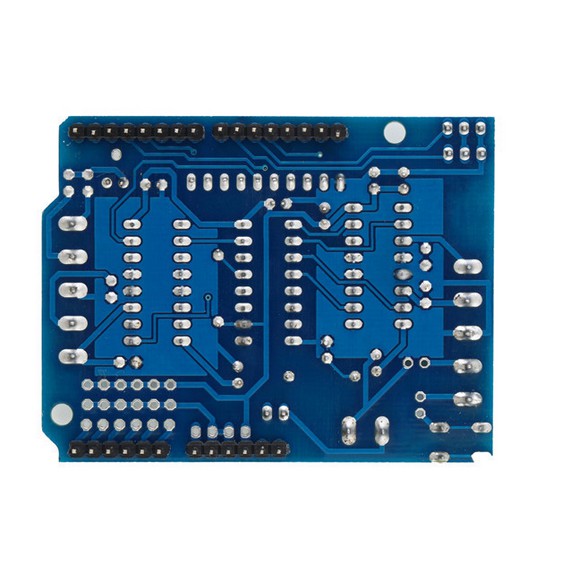

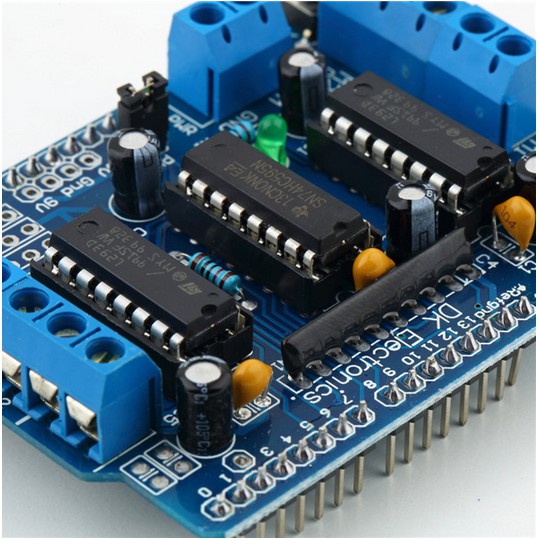

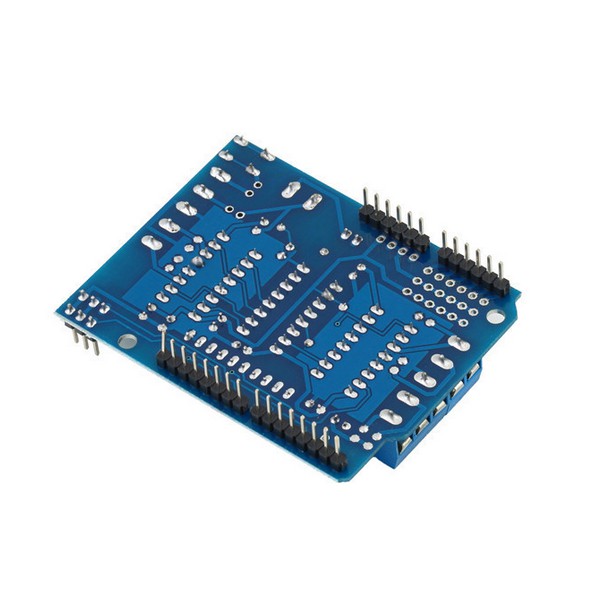

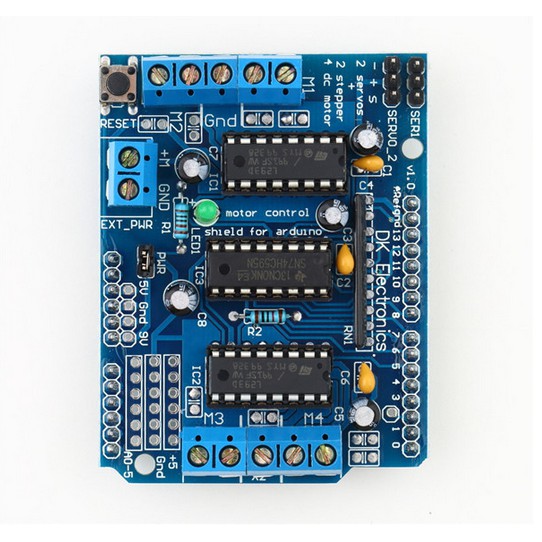

Detail HQ High Quality 1pc New Motor Drive Shield Expansion Board L293D for UNO

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per 9 mei = 25 pieces

Features:

2 interface for 5V Servo connected to the for Arduino\'s high-resolution
dedicated timer - no jitter
Can drive 4 for DC motors or 2 stepper motors or 2 Servo
Up to 4 bi-directional for DC motors with individual 8-bit speed selection
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or
interleaved stepping.
4 H-Bridges: per bridge provides 0.6A (1.2A for peak current) with thermal for
protection, can run motors on 4.5V to 36V for DC
Pull down resistors keep motors disabled during power-up
for Arduino reset button
2 external terminal power interface, for seperate logic/motor supplies
compatible with for Arduino

Package Include:
1 X L293D Motor Drive Shield module Expansion Board
