HQ High-power MOS FET trigger switch tube drive module PWM adjustment

Detail HQ High-power MOS FET trigger switch tube drive module PWM adjustment

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 23 nov = 25 pcs

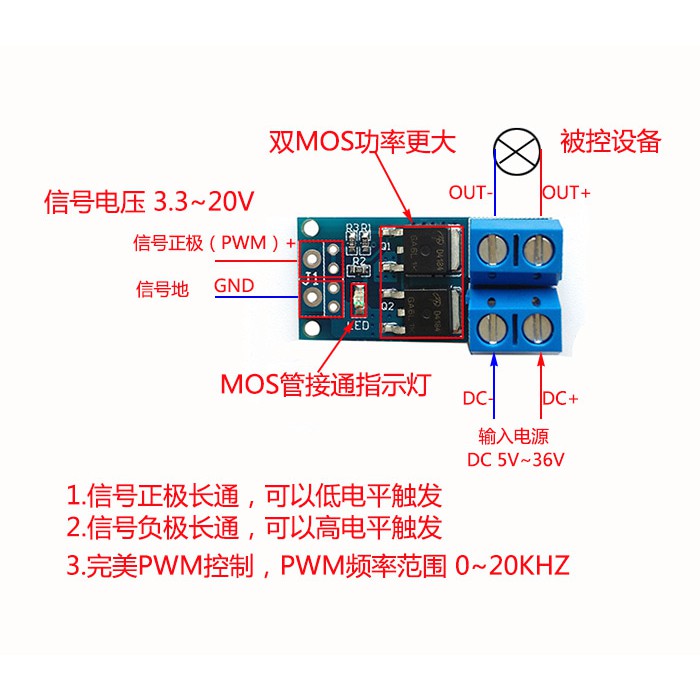

High-power MOS tube FET trigger switch drive module PWM adjustment of the
electronic switch control panel
Module Highlights:

1. adopt imported dual- MOS parallel active output , lower resistance, more
current, strong power, at room temperature . 15A , 400W , to meet the most use
of the equipment;

2. Wide voltage, the perfect support for the PWM ;

3. Easy to control high power devices.

Product specifications and applications:

1: Operating Voltage: DC 5V - 36V;

2: The trigger source: digital high-low (DC3.3V - 20V), can be connected
microcontroller IO port, PLC interfaces, DC power, you can access the PWM
signal, the signal frequency 0--20KHZ perfect support.

3: output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A,
power 400W! Lower auxiliary cooling conditions, the maximum current up to 30A.

4: Applications: You can control the output of power equipment, motors, light
bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc., you can enter
PWM, motor speed control, lamp brightness.

5: life: unlimited switch; Operating temperature: -40-85 ; size: 3.4 * 1.7 *
1.2cm

Gambar produk
