HQ HC-05 6 Pin Wireless Bluetooth RF Transceiver Module

Detail HQ HC-05 6 Pin Wireless Bluetooth RF Transceiver Module

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 2 juni = 100 pcs

Features:
100% Brand new and high quality!

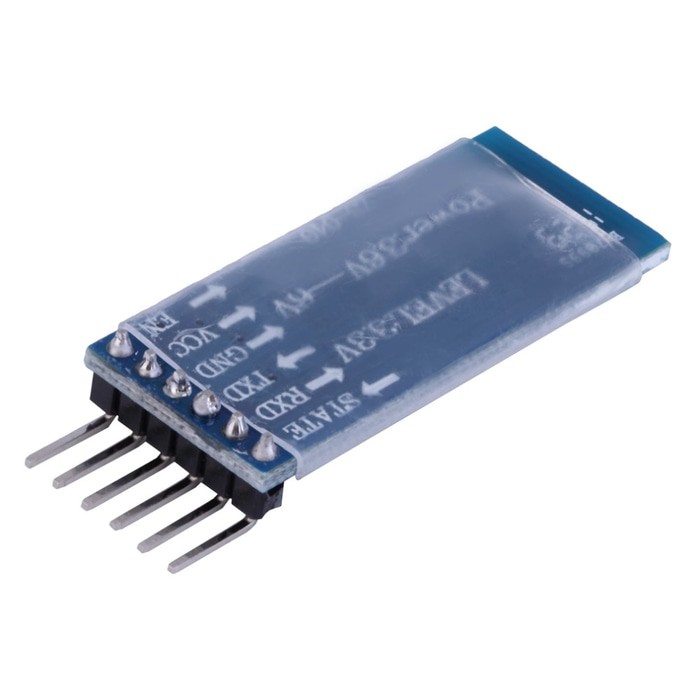

With VCC, GND, TXD, RXD, KEY foot for the Bluetooth

Led indicate Bluetooth connection status, fast flash indicates unpaired, slow
flash indicates AT mode, double flash indicates machine connected

Backplane settings LDO input voltage of 3.6-6V unpaired current is about 30mA,
paired 10mA, input voltage prohibit more than 7V absolute prohibition of reverse
power!

Interface level 3.3V, can be directly connected the various SCM (51, AVR, PIC,
ARM, MSP430, etc.), the 5V MCU also can be connected directly, without MAX232
can not go through the MAX232!

Open to effective distance of 10 meters, over 10 meters is also possible, but
not of this the quality of the connection of the distance do to ensure

The pair later when full-duplex serial use, do not need to know anything about
the Bluetooth protocol, but only supports 8 data bits, 1 stop bit, no parity
communication format, which is the most commonly used communication format does
not support other formats.

Support to establish a Bluetooth connection through AT commands set the baud
rate, passkey, set parameters are saved after.



Specifications:

Input voltage: 3.6-6V

Working current: matching for 30 mA, matching the communication for 10 mA

Output Power Class: Class 2

Size: 43mm x 15mm

Color: Blue



Package Includes:

1pc HC-05 Wireless Bluetooth RF Transceiver Module

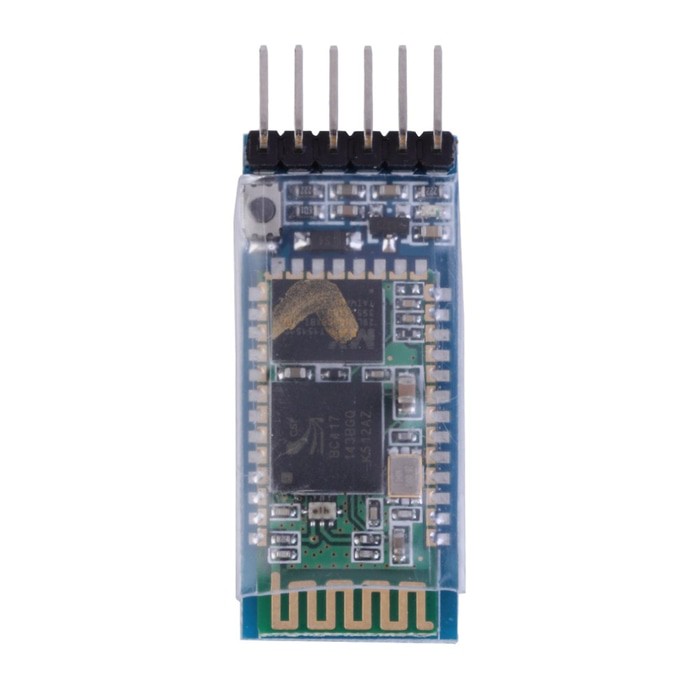

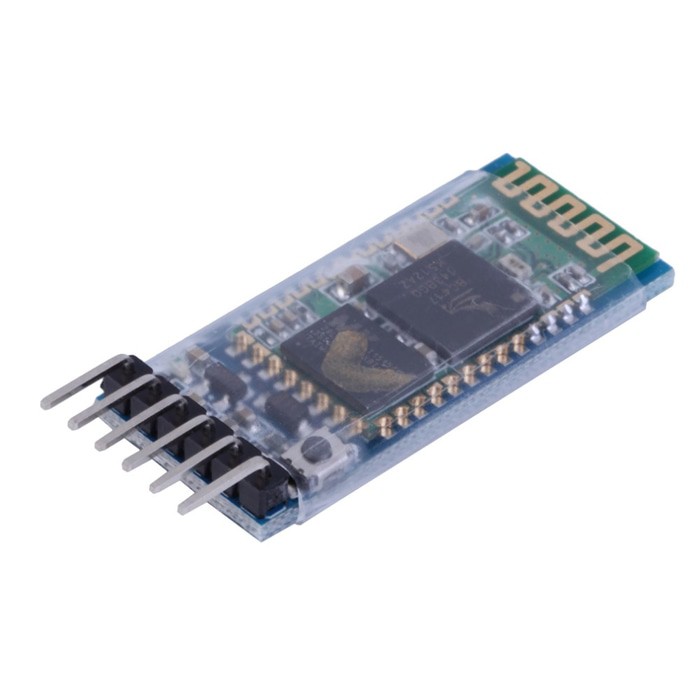

Gambar produk
