HQ FSR402 Resistive Thin Film Pressure Transducer

Detail HQ FSR402 Resistive Thin Film Pressure Transducer

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 9 feb = 10 pcs


The output of the sensor itself is the resistance signal. If you need to obtain
the voltage signal, you can purchase our analog circuit. The analog circuit uses
5 V (compatible with 3.3 V and 5 V ) power supply, the output 0 - power supply
voltage, specific to our customer service Analog circuit instruction manual.

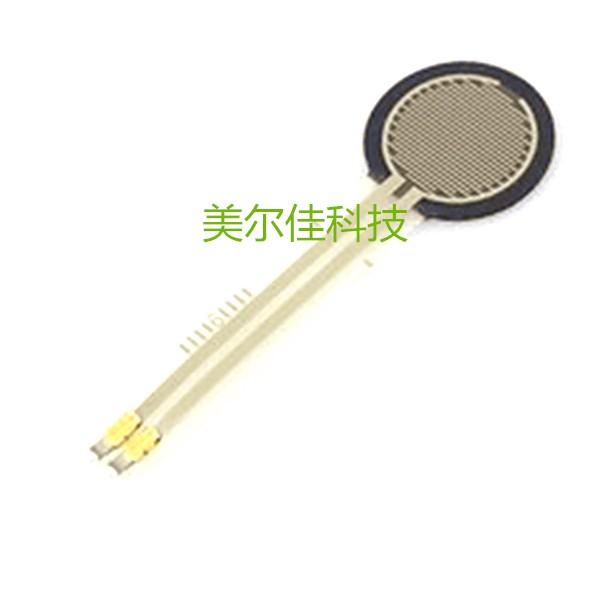

Force Sensing Resistor is a small, low-profile resistive pressure sensor
manufactured by Interlink Electronics.

This pressure sensor converts the pressure applied to the FSR sensor membrane
area to a change in resistance value to obtain pressure information. The higher
the pressure, the lower the resistance. Which allows the use of pressure 0g-10kg
of the occasion.

It can be used for sensing the presence of gripping objects, biped robots,
spider robots, ground sensing, mammalian bite force testing, and its wide range
of applications. However, since the pressure detection is not very accurate, it
is not recommended to use the occasion where accurate pressure measurement is
required.

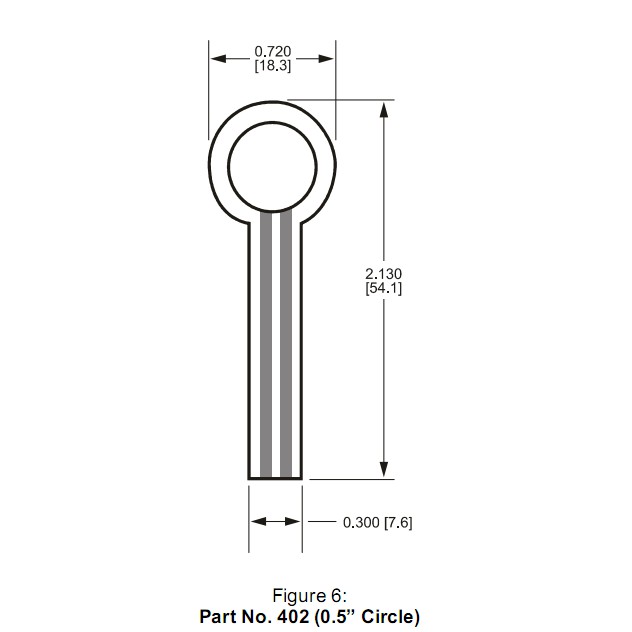

Length (including metal pins): 6cm
Overall width: 1.9 cm
Sensor sensing area diameter: 1.27cm
