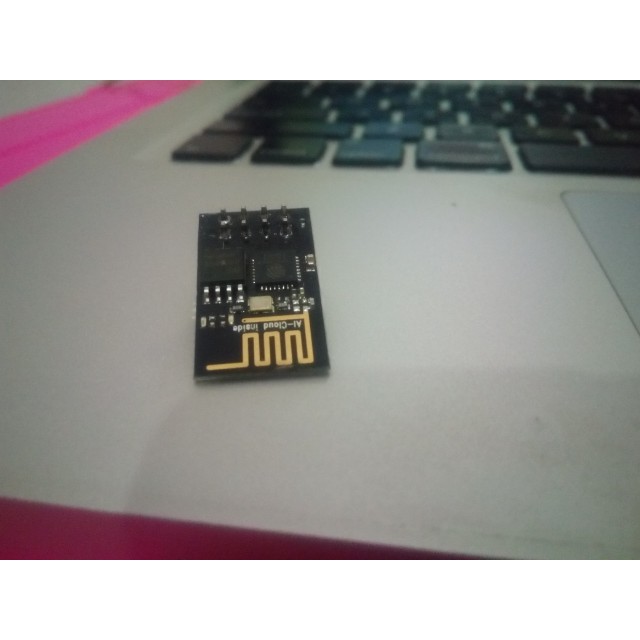

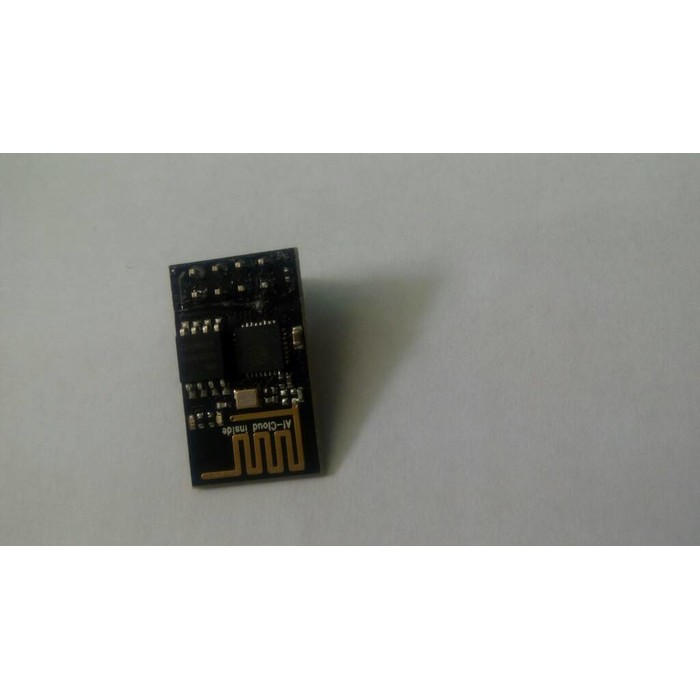

HQ ESP8266 Serial WIFI Module Send Receive LWIP A (PCB Coklat)

Detail HQ ESP8266 Serial WIFI Module Send Receive LWIP A (PCB Coklat)

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per 11 okt = 25 pcs

PCB coklat lebih ampuh
ESP8266 is a highly integrated chip designed for the needs of a new connected
world. It offers a complete and self-contained Wi-Fi networking solution,
allowing it to either host the application or to offload all Wi-Fi networking
functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it
to be integrated with the sensors and other application specific devices through
its GPIOs with minimal development up-front and minimal loading during runtime.
Its high degree of on-chip integration allows for minimal external circuitry,
and the entire solution, including front-end module, is designed to occupy
minimal PCB area.
SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU,
RISC processor, on-chip memory and external memory interfaces, MAC/baseband
processors
Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines
Solutions
Supports APSD for optimal VoIP applications
Patented spurious noise cancellation algorithm for integration in SOC
applications
Supports Bluetooth co-existence interface
Self-calibrated RF to ensure optimal performance under all operating conditions
Zero factory tuning
No external RF components
Spec :
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack, TR switch, balun, LNA, power amplifier and
matching network, PLLs, regulators, DCXO and power management units, +19.5dBm
output power in 802.11b mode, Power down leakage current of 10uA, low power
32-bit CPU could be used as application processor SDIO

Gambar produk
