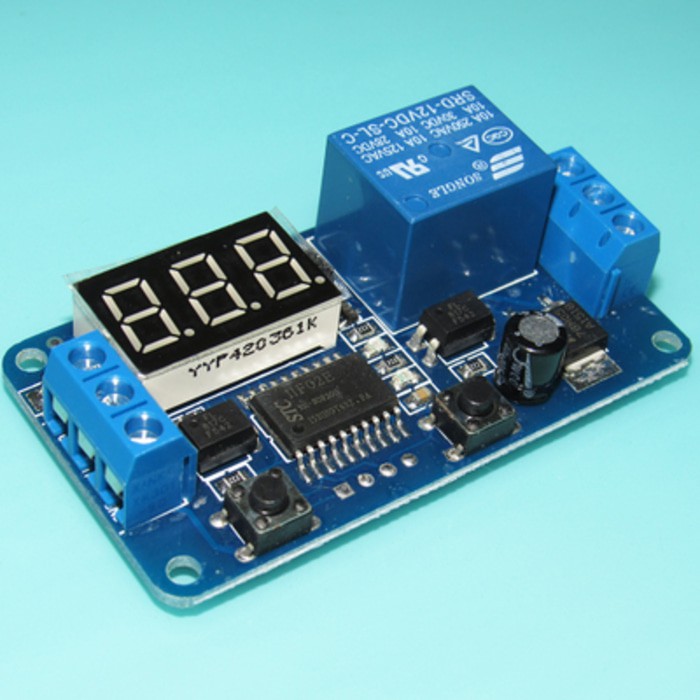

HQ Delay On Off External Trigger Delay Switch 12V

Detail HQ Delay On Off External Trigger Delay Switch 12V

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 8 des = 10 pcs



Operating modes: power, the relay does not work, triggering termination key or
PNP type sensor is triggered when there is a high level trigger (or key moment
for positive power supply), the relay started working countdown delay when the
delay time to , The relay opens. More generally can be described as:signal
triggers the device to work, time to time, the device stops working.





product description:

1. This product is 12v new digital LED display countdown delay module module.
The use of high-quality authentic Songle power relay military-grade double-sided
PCB material, stable performance can be widely used with a variety of control
switch places.

2. Product delay time can be set by itself, can be set by key, set up, the next
power-on after the countdown in accordance with the set value (power-down memory
function);

3. Product precise delay error of 0.01% per second, delay of 0-999 seconds,
every 1 second LED changes;

4.LED digital display normally open trigger delay 12V relay module, can be
triggered by an external signal. When the power supply, the power LED lights,
but the relay does not work, when an external trigger (high or high level
trigger) (such as the button momentary power positive), the relay starts
working, the countdown delay, when the delay time , The relay opens.

(This product can be customized according to customer needs and other similar
requirements).

5. Module is a high-level trigger, counting time 0-999 seconds.

6. This product is widely used, can be used in many fields;

7. Product has low power consumption mode, long press the left button to turn
off the digital display or start display.

8. Products are input and output with optocoupler isolation, enhanced
anti-jamming capability to ensure stability.

Product parameters:
Voltage: Voltage 12V (another 5v optional)
Dime
