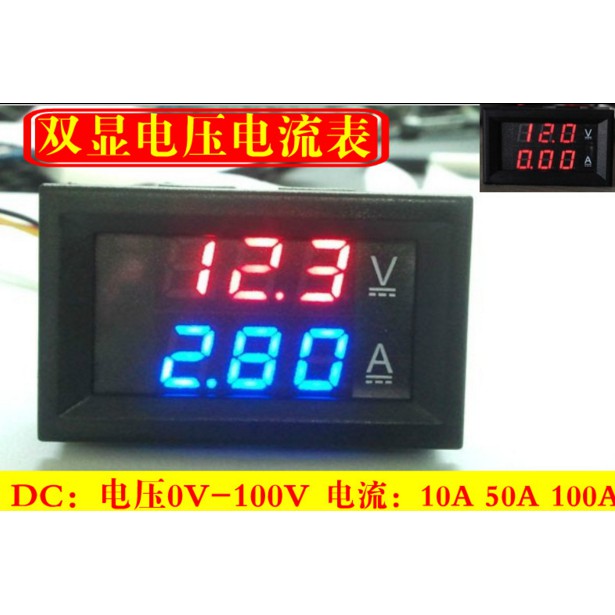

HQ DC0-100V 10A 50A 100A LED DC dual display digital current and voltage

Detail HQ DC0-100V 10A 50A 100A LED DC dual display digital current and voltage

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 27 feb = 25 pcs


Baby Description:
high precision and high reliability for high-end applications
has reverse polarity protection, reversed not burn.
10A shunt voltage meter head is not required (built-splitter), 50A / 100A
voltage meter shunt dispensing head ( note: the current test whether the current
size before you connect the power must be connected to the shunt )
If you need high-pressure version Voltage Meter click on the link:
Technical Parameters:
Voltage measurement range
0.0V to 100V
Current test range
0-10A, 0-50A, 0-100A (3 types of range settings optional )
Power supply range
Note: DC4-30.0V (more than 30V need an external independent power supply)
Voltage error
0.1%
Current error
1%
External shunt specification
75 milliohms
Working current
20 mA
Refresh speed
About 300mS time
Display method
Double three 0.28 "LED digital tube
Display color
Red + red, red + blue. Optional
Lead length
15 cm
Dimensions
29 X 22 mm X 48 , length X width X thickness;
An installation hole
46 x 27 mm
Net weight
G
Gross weight
G
Operating temperature
-10 Deg.] C ~ 65 deg.] C


Why do some poor customer evaluation bad! Many aspects of the customers
themselves did not notice these matters! Many customers beyond the 30V no
external independent power supply direct power supply, resulting in product
burn, (again, while we factory 100% test) according to the customer often appear
in various questions to make the following summary of reference:

Note: The range is 50A or 100A of the table regardless of whether the measured
current is less than 10A must be connected to the shunt to measure current!
Otherwise it will burn the hea
