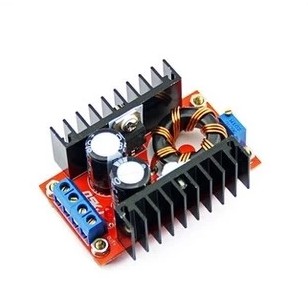

HQ DC-DC car laptop mobile power 10-32V 12-35V adjustable boost SW 150W

Detail HQ DC-DC car laptop mobile power 10-32V 12-35V adjustable boost SW 150W

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per 21 jan = 2 PCS

Disclaimer: This module output power is limited to the module itself with a
carrying capacity is also affected by many factors before and after the class
level power load, etc; the following data for professional equipment measured
results, without considering other factors. Power module is a kind of electronic
components, please no electronic expertise who buy carefully.
Module parameters

Module Properties: non-isolated step-up module

Module Size: Length 65MM * High 23MM * (width 56.5MM including fins)

Input: IN + input positive level, IN- input negative
Output mode: OUT + output positive level, OUT- output negative

Connection: solderless terminal

Input voltage: 10-32V

Output voltage: (1) continuously adjustable (12-35V) Our default shipping
voltage 19V

(2) fixed output (arbitrary choice between 12-35V), purchase please tell the
shopkeeper.

Output Current: 6A (MAX)

Input Current: 10A (MAX) (more than 10A, please enhance heat dissipation,)

Output power: natural cooling 100W (MAX), plus the fan 150W (MAX)

Easy to drive 65W 90W including dual-core laptop

Laptop module temperature with 12V battery with ordinary 19V 3.42A about 45
degrees

Conversion efficiency: 94% (input 16V output 19V 2.5A when measured) (for
reference only)

Operating temperature: Industrial grade (-40 to + 85 ) (ambient temperature
exceeds 40 degrees, lower power use, or plus fan)

Full load temperature rise: 45

No-load current: Typical 25mA

Short circuit protection: None (Please enter install overcurrent protection
device)

Input reverse polarity protection: none, in the input diode in series

Gambar produk
