HQ ARM STM8 Devel Board Minimum System STM8S103F3P6 Module for arduino

Detail HQ ARM STM8 Devel Board Minimum System STM8S103F3P6 Module for arduino

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK 21 nov = 20 PCS

The development board using Micro USB cable supply, compatible with smart phone
lines, data lines is simple and easy to get, but not USB Mini line-powered
Low price, user-friendly design, a full set of data, allowing you to save money,
save time, effort, worry
STM8S core board of the main features:
Use STM8S103F3P6 as the master IC

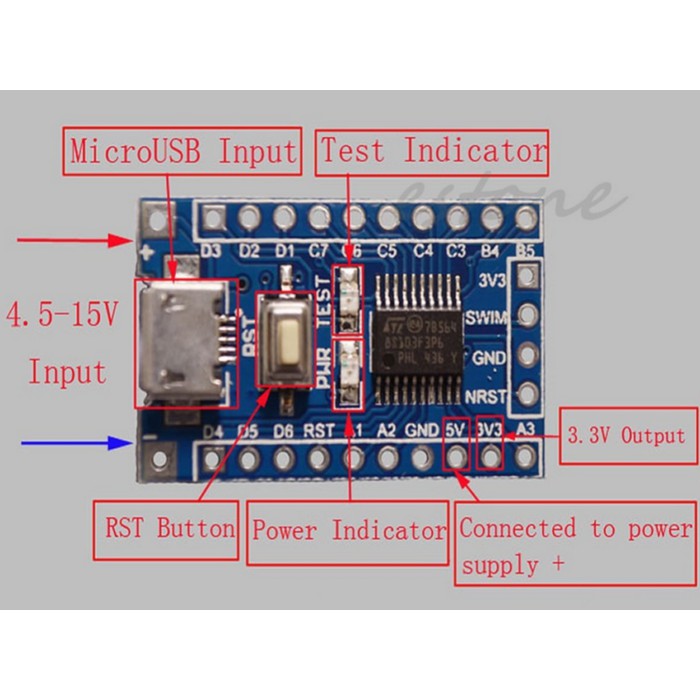

You can use 2.54 pin on the board or power supply pad, the pad when using power
supply, input voltage range 4.5V-15V, can output to the outside through pin 3.3V
Note: 5V pin's voltage is the input voltage of the module

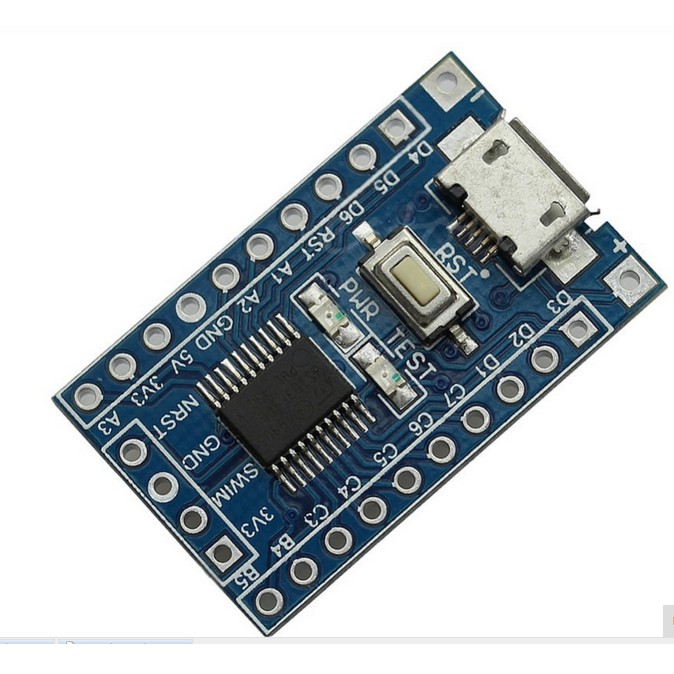

Leads to all pins, the pins next to the pin marked the label, with a reset
button, power LED, and the program demonstrates LED, small but perfectly formed
Support SWIM debug mode
Technical Information:
The core board schematics (PDF format) and tested source. Burned into the test
program, LED flashes, allowing you to detect the core board is working properly
Provide at IAR and STVD two development environments register operation and
routine operation of the library functions. Timer routine, UART transmit
routine, UART receive routines, clock switching routines, AD routines and so on
STM8 Applications
STM8 package library
IAR development environment, STVP programming software
STM8S103F3P6 performance comparison:
STM8S003F3 chips only 128 bytes of EEPROM, STM8S103F3 640 bytes
STM8S003F3 chip FLASH erase only 100 times, STM8S103F3 can erase ten thousand
times
STM8S103F2 chip FLASH only 4K bytes, STM8S103F3 have 8K bytes
Conclusion: STM8S003F3 only suitable for mature products, STM8S003F3 core board
is not suitable for development. However STM8S103F3 suitable for the development
of the use of, our board of this development is the use of this chip
Size:28mm*17mm*5mm/1.1*0.66*0.1

Gambar produk
