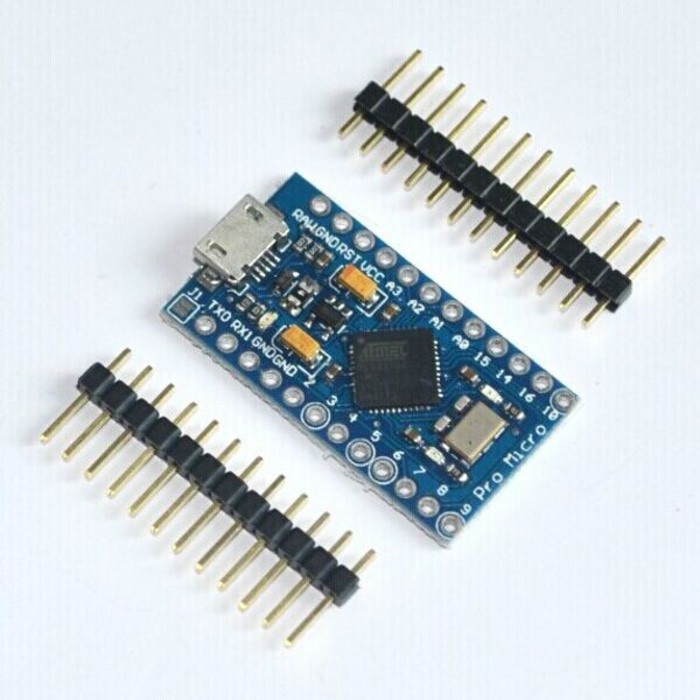

HQ arduino pro micro 5v / 16M Leonardo microcontroller development board

Detail HQ arduino pro micro 5v / 16M Leonardo microcontroller development board

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 1 sept = 30 pcs

Information: micro 5v 16m

Features:
The ATMEGA32U4 operates at 5V / 16MHz
Supported by the Arduino IDE V1.0.1
Micro USB interface on the board programming
Four 10-bit ADC pins
12 digital I / O (5 PWM capability)
Rx and Tx hardware serial connection
Description:

This little board does all the tidiness of Arduino's skills: 4-channel 10-bit
ADC, 5 PWM pins, 12 DIO, and hardware serial connections Rx and Tx you are
familiar with. Running at 16MHz and 5V, this board will remind you a lot of
other Arduino compatible boards you like, but this little guy can go anywhere.
On board there is a voltage regulator, so it can accept voltages up to 12VDC. If
you are supplying an unstable power supply board, be sure to connect the "RAW"
pin to the VCC pin. This latest version fixes Silk Error so that pin 14 is the
correct marker. We have also added a PTC fuse and diode to protect the power
supply circuit and correct the RX and TX LED circuits

Gambar produk
