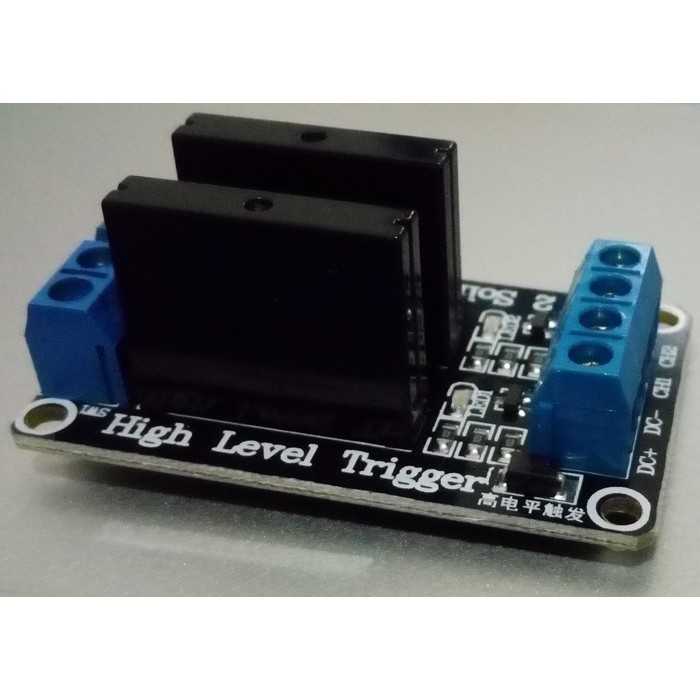

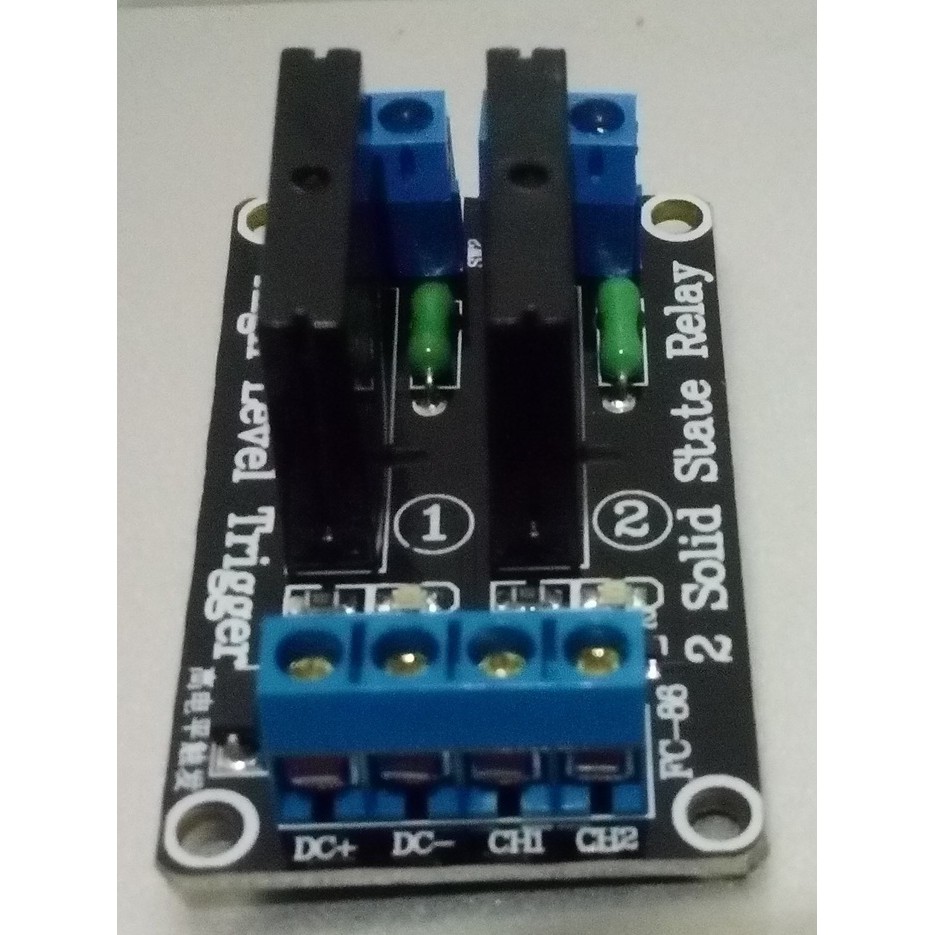

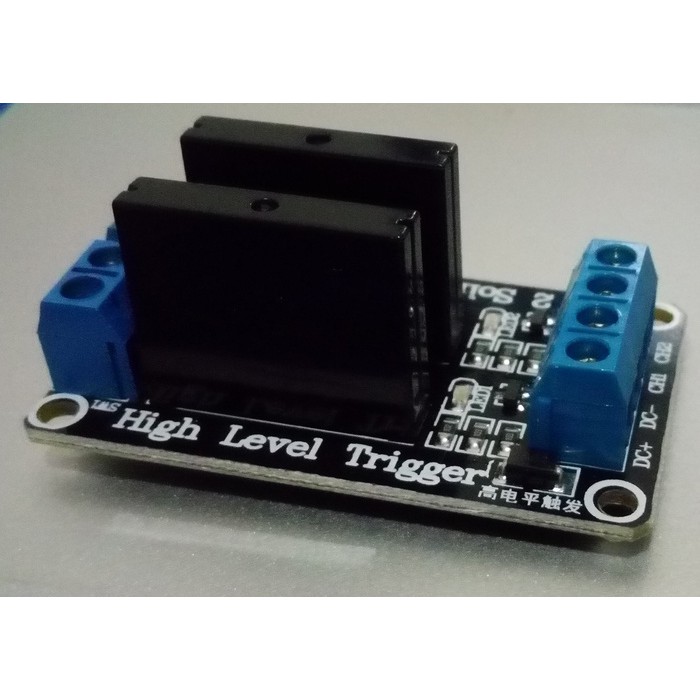

Detail HQ 5V DC 2 Channel Solid-State Relay Board module High Level fuse arduino

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 27 feb = 10 pcs

5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A
Description:
Size: 53*32*23mm/2.08*1.31*0.9"
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3.3-5V state high relay ON)

Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)

Voltage version static current working current trigger voltage trigger current
1 road 5V 0mA 12.5mA 3.3-5V 2mA
2 road 5V 0mA 22.5mA 3.3-5V 2mA

Gambar produk

HQ 5V DC 2 Channel Solid-State Relay Board module High Level fuse arduino
HQ 5V DC 2 Channel Solid-State Relay Board module High Level fuse arduino
HQ 5V DC 2 Channel Solid-State Relay Board module High Level fuse arduino
HQ 5V DC 2 Channel Solid-State Relay Board module High Level fuse arduino
HQ 5V DC 2 Channel Solid-State Relay Board module High Level fuse arduino
HQ 5V DC 2 Channel Solid-State Relay Board module High Level fuse arduino
