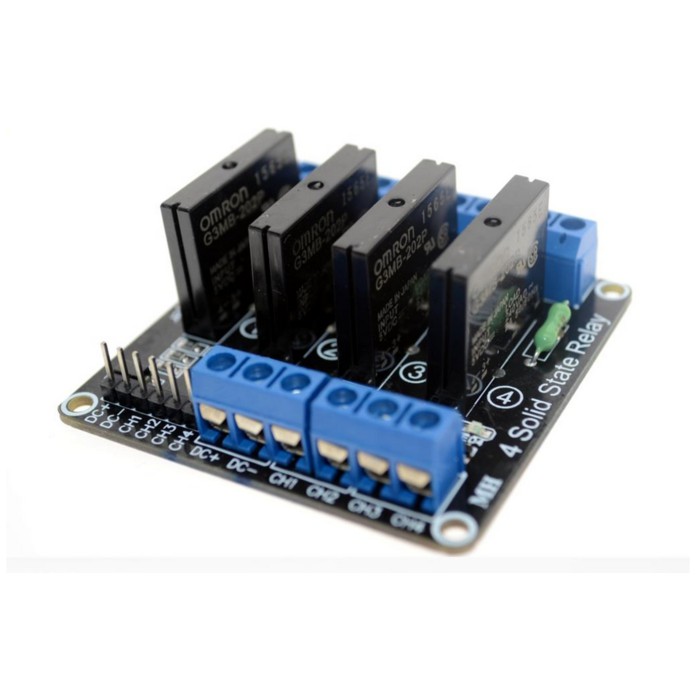

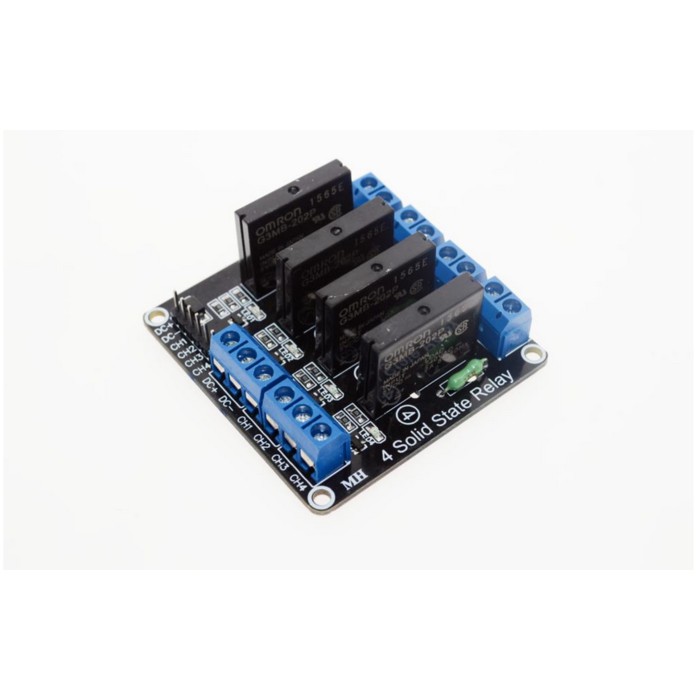

HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino

Elektronik > Remot Kontrol > HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:arduino loverLihat semua produk Elektronik oleh arduino lover
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per 20 mei = 10 PCS

5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A.
Size: 57 * 55 * 25 (L * W * H) Weight: 40g
Input Power: 5V DC (160MA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3.3-5V state high relay ON)

Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH1: 1 relay module signal to trigger the end (high level trigger effective)
CH2: 2-channel relay module signal to trigger the end (high level trigger
effective)
CH3: 3 relay module signal to trigger the end (high level trigger effective)
CH4: 4-channel relay module signal to trigger the end (high level trigger
effective)

Gambar produk

HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino
HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino
HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino
HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino
HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino
HQ 5V 4 Channel OMRON SSR High Level Solid State Relay Module For Arduino
Lihat lebih banyak informasi produk
