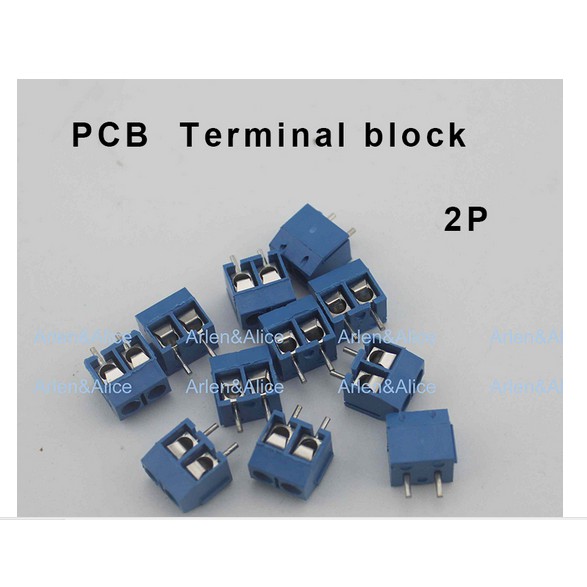

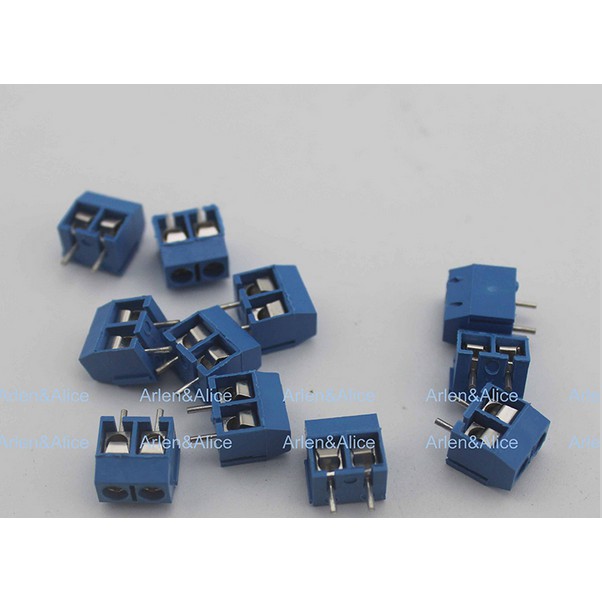

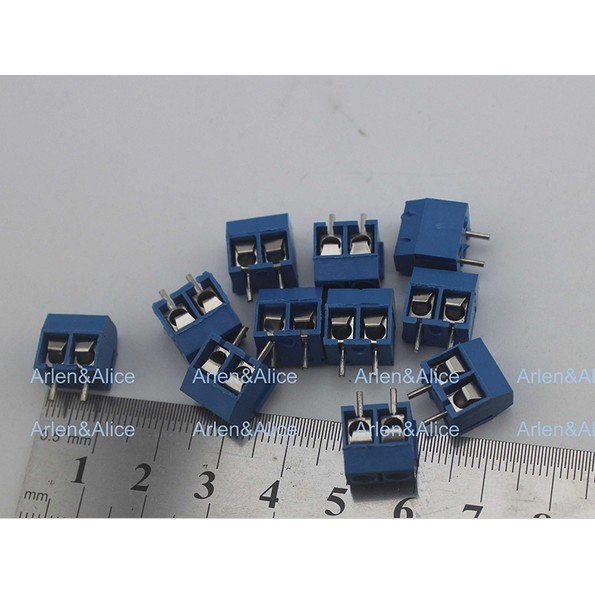

HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:arduino loverLihat semua produk Audio oleh arduino lover
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirSTOCK per28 junii = 1.000 pcs

HIGH QUALITY MATERIAL, ROCSH certificate. bahan plastik kokoh dan licin/
mengkilat.

Pitch:5.0mm
Poles: 2P
Screw: M2.5 Steel Zinc plated
Wire guard: phosphor bronze, Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT, UL94V-0
ELECTRICAL
Rated current: 16A
Withstanding voltage: AC200V/1Min
MECHANICAL
Temp range: -30~+120 Celsius
MAX Soldering: +150 Celsius for 5sec
Torque: 0.4 Nm (35lbin)
Strip length: 4.5-5mm
For AWG 22-14
MAX 2.5MM2

Gambar produk

HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm
HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm
HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm
HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm
HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm
HQ 2 Pin Screw blue PCB Terminal Block Connector 5mm
Lihat lebih banyak informasi produk
