Detail HQ 1-8S new combo power display dual function buzzer for Lipo etc

hai kak. Mohon maaf untuk minimal order 20 ribu ya kak baru bisa kita proses, diluar ongkirstock per 5 juni = 25 pcs

Description:

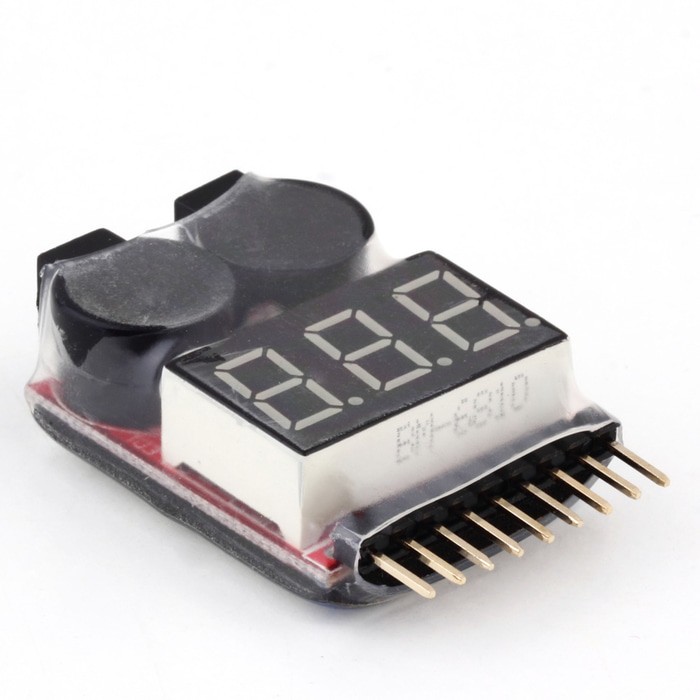

The lithium battery voltage monitor for detecting 1S ~ 8S automatically detect
each lithium batteries voltage and total voltage supports reverse connection
protection.
It allows you to work anytime, anywhere to understand the state of your battery
, So that the battery will not over discharge or overcharge caused by injury.
Whether in the flight process or idle state, can be inserted into the battery
charge and battery charge balance charge to understand the status of the battery
No multimeter is essential Oh!

When the voltage is lower than the set value, the buzzer will sound and the red
LED will flash. The factory default setting is 3.3V. Pressing the button will
change the voltage setting value and automatically save the current setting
value.

Product parameters:

1. For 1S-8S lithium detector
2. The voltage detection accuracy: 0.01V.
3. pack voltage display range: 0.5V ~ 4.5V
4. The total voltage display range: 0.5V ~ 36V
5.1s test mode voltage range: 3.7V ~ 30V of
6. Low voltage buzzer alarm mode 2S - 8S
7. The alarm voltage range: OFF ~ 2.7 ~ 3.8V
8. The size: 40 mm x 25 x 11 Haomi Haomi

9. Super loud alarm sound (using a special frequency, even in the noisy
environment can hear the alarm sound)

10. Weight: 9g

Instructions:

(The side of the digital display). Insert the white balance charging plug of the
battery into the leftmost pin of the power display. The TV display will sound
twice and the screen will show the jumping number. , If there is no response,
plug the plug will be counter-balanced plug on it. The other end has a small
button to set the alarm voltage.
