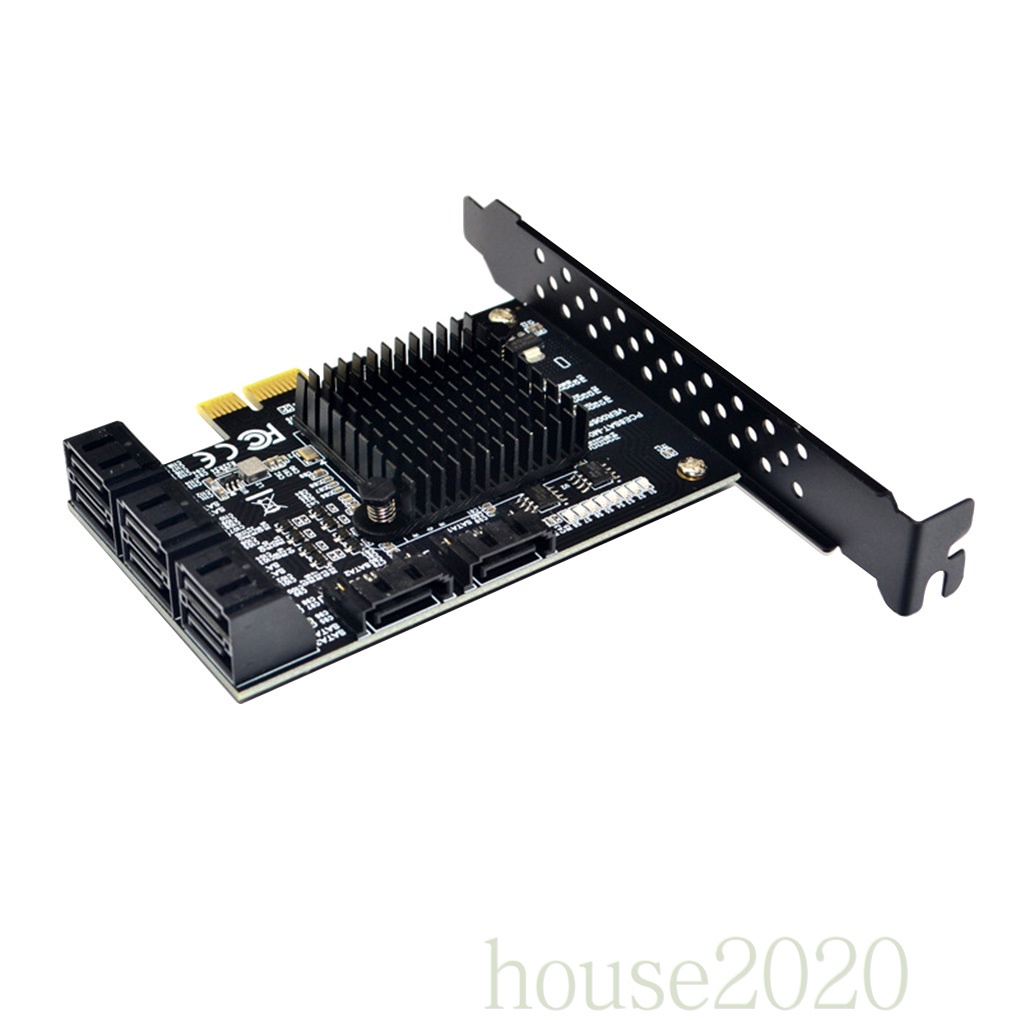

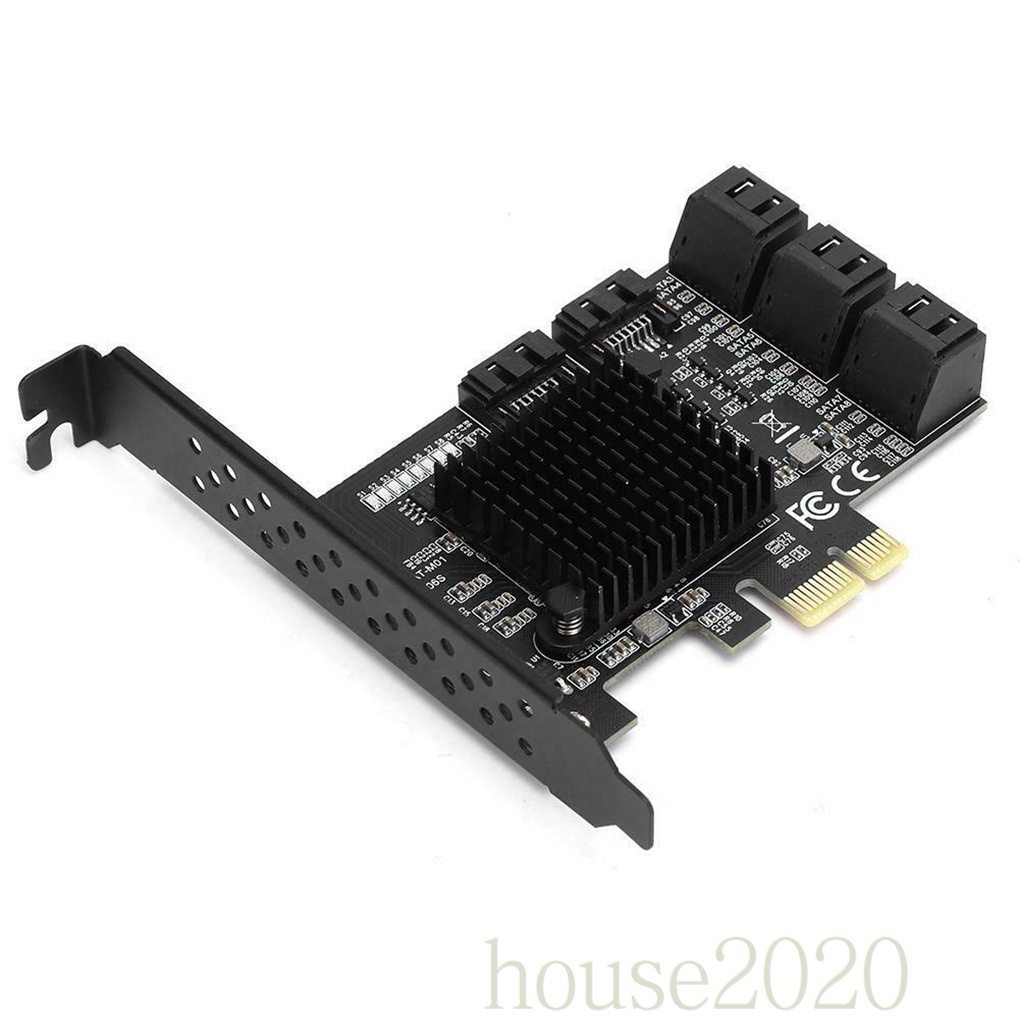

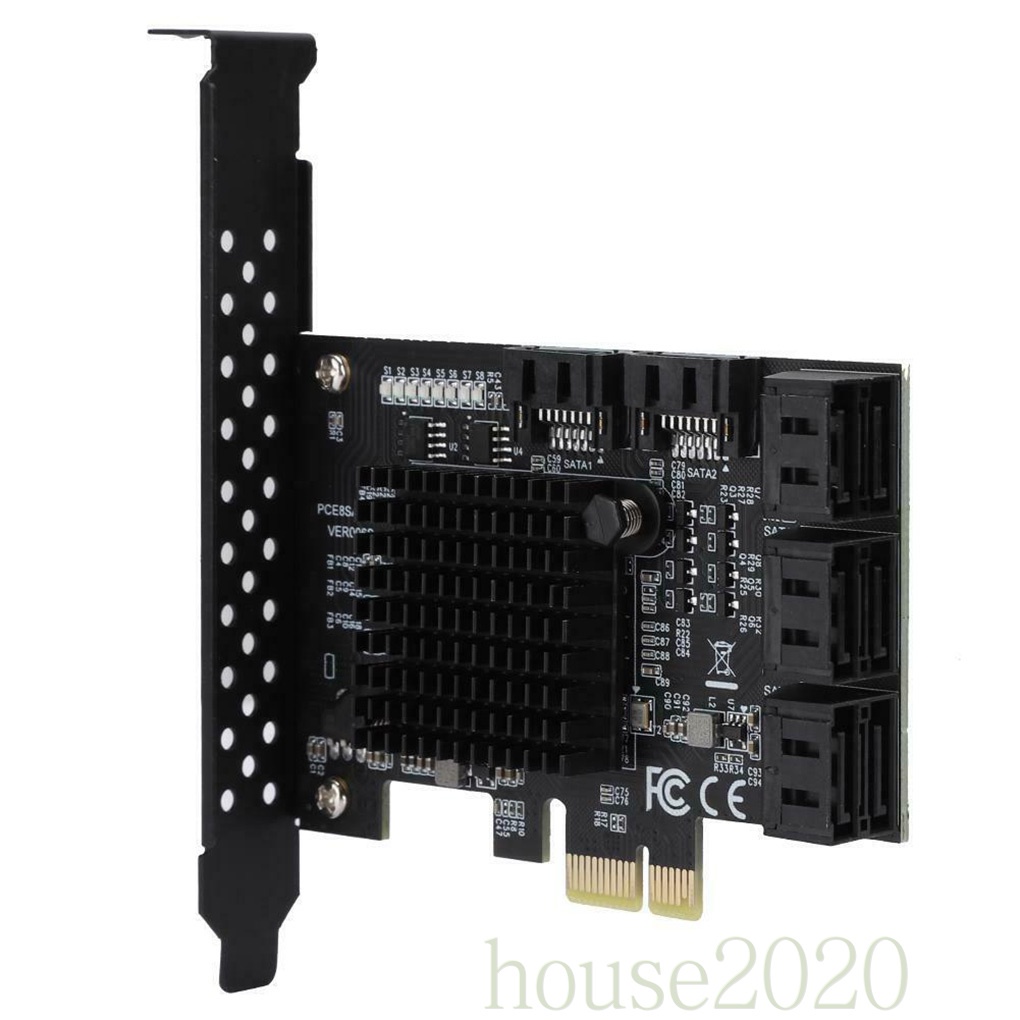

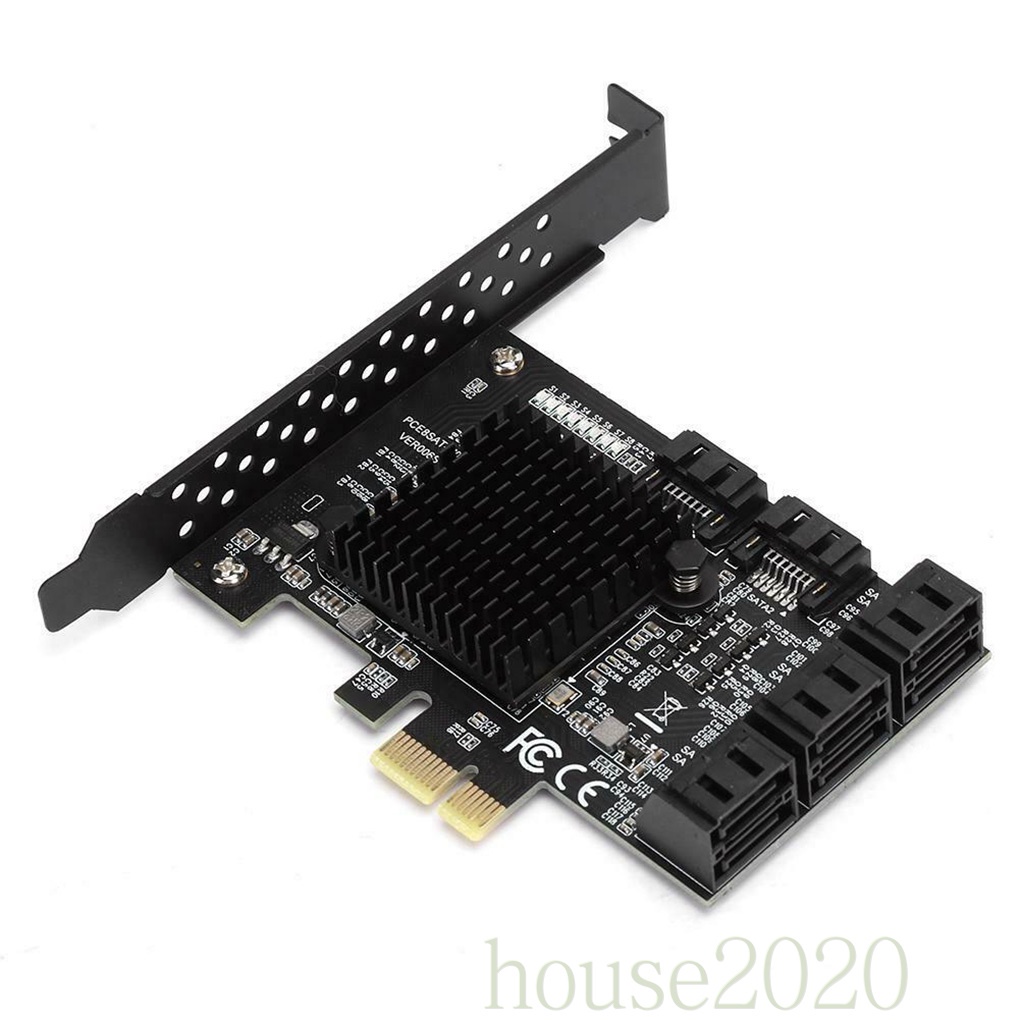

[HOUSE2020]SATA Expansion Card PCI-E Ix 8-port SATA 3.0 Expansion Board with 6Gpbs Transmission Speed

Detail [HOUSE2020]SATA Expansion Card PCI-E Ix 8-port SATA 3.0 Expansion Board with 6Gpbs Transmission Speed

Description:
Compliant with PCI-E specification V2.0 and backward compatible with PCI-E 1x.

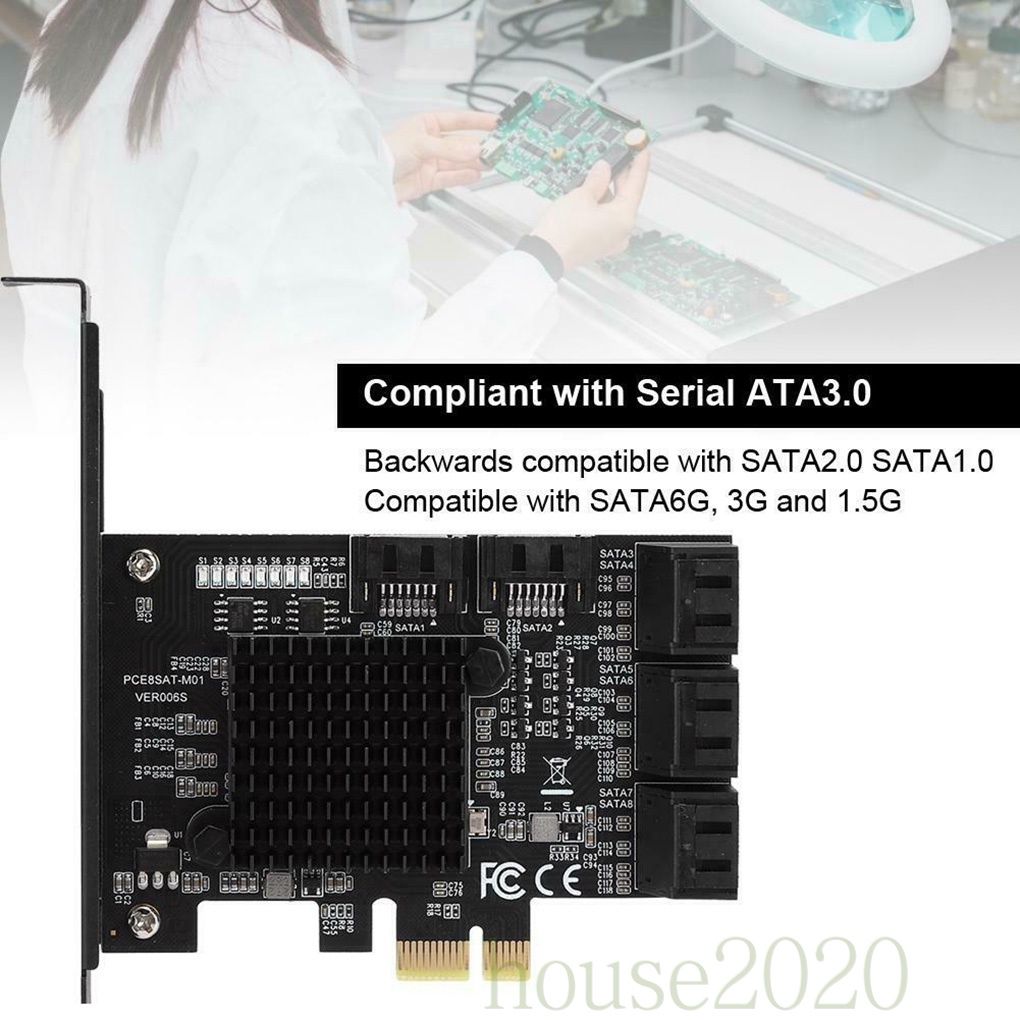

Supports Native Command Queuing (NCQ). Compatible with SATA 6G, 3G and 1.5G hard drives.
Supports 10TB hard disk drives and has 8 SATA interface.
Compatible with many kinds of computer OS, replacement for Windows 10/8.1/8/7(32/64bit)/XP.
The SATA 3.0 expansion board is convenient to connect and use, comes with a CD driver.


Specifications:
Chipset: 88SE9215 chipset.
Ports: 8 SATA 6GB/s Ports.
Support OS: Replacement for Windows 10/8.1/8/7(32/64bit)/XP, replacement for Linux.

Installation instructions
1:Please clean the gold pin of SATA3.0 card by eraser , connect the SATA cable of the chassis into the card.
then connect all the hard disks.
2:Turn off the power of the computer and open the back cover of the PC; Remove the bars corresponding to the free slot on the chassis.
3:Insert the expansion card into the corresponding PCI-E expansion slot of the host
4:Secure the iron strip of the expansion card to the chassis with a screwdriver.
5:Close the chassis and plug in the power cord to boot. After entering the system, install the driver


Note:
There might be a bit color distortions due to different computer resolutions.
There might be a slight errors due to different hand measurement.
The SATA3.0 PCI-E card must be installed in the PCI-E slot of the motherboard, and can not be inserted into the PCI slot.
The fastest speed is 380-450m/s in PCI-E 2.0 . If it is plugged into PCI-E1.0, the speed only runs 200-300m/s. Different computer configurations and sata ssd have different speeds. If all ports are used at the same time, the speed will slow down.
We recommend to use this SATA 3.0 Card in PCIE2.0 or 3.0 slot, so as to get the fastest speed.
SATA Port Multiplier is not supported if the driver is not installed.
We must install the driver to recognize all the hard disks.
Be sure to turn off the power of the computer before inserting or removing the card, and then insert the card to avoid damage to the motherboard or expansion card.

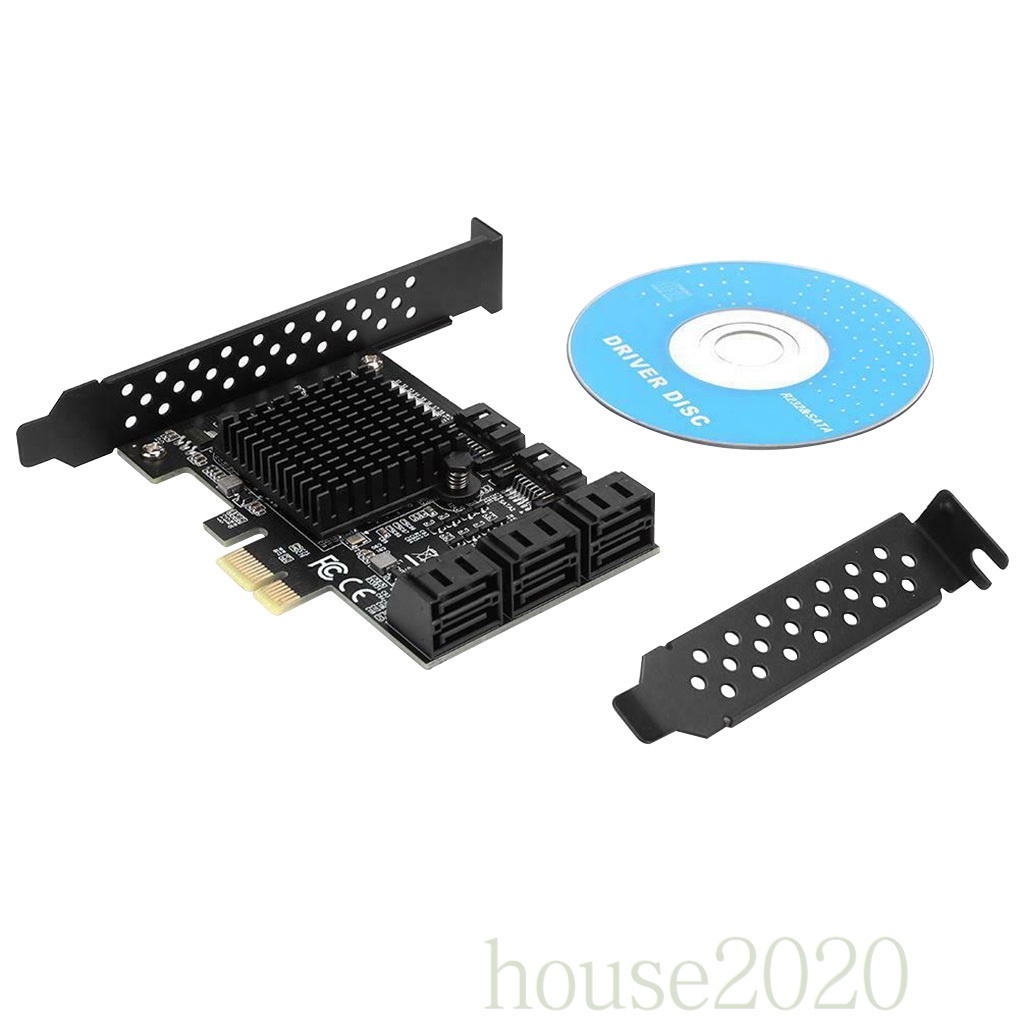

Package included:
1x SATA 3.0 Expansion Card.

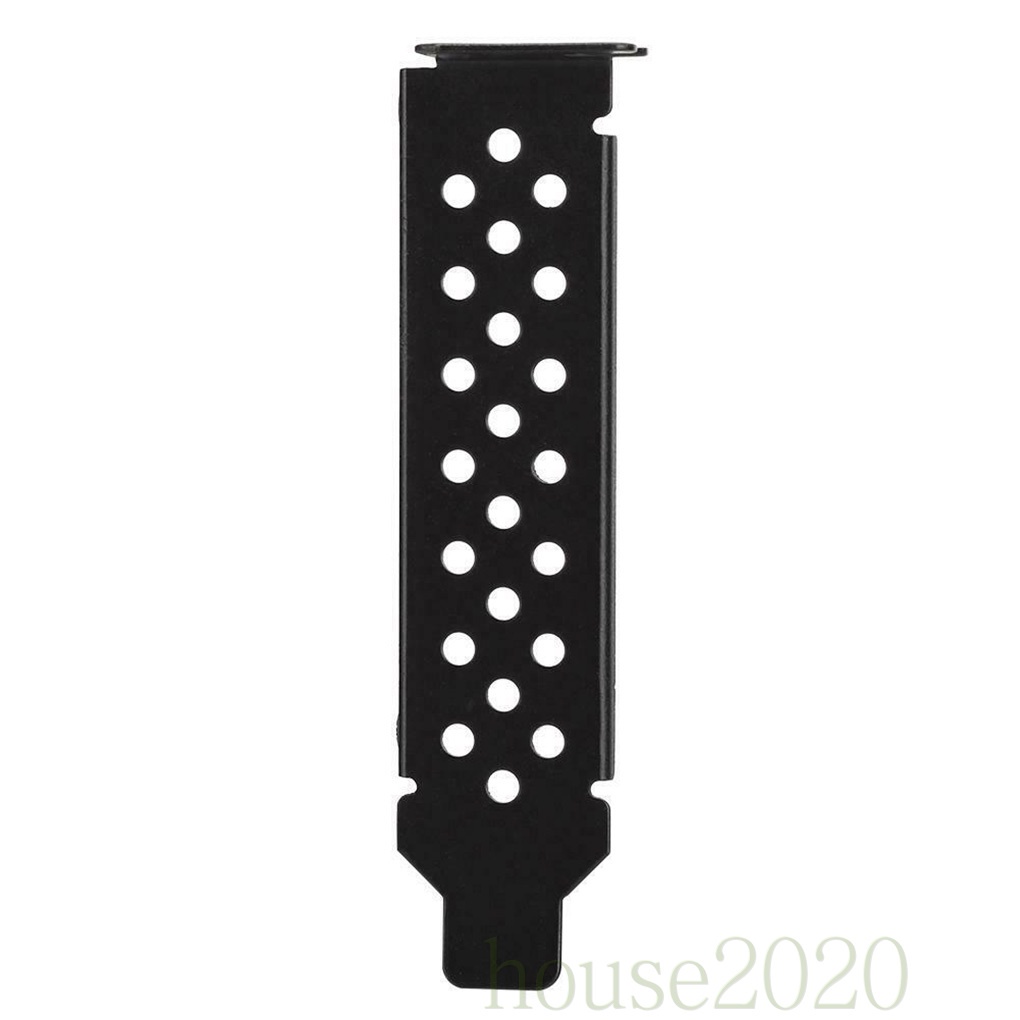

1x Low Profile Bracket.
1x Driver CD.
