[HOUSE2020]12V Server Power Supply PCI-E 12x6pin Adapter Breakout Board with Digital Voltage Display

Detail [HOUSE2020]12V Server Power Supply PCI-E 12x6pin Adapter Breakout Board with Digital Voltage Display

Description:
This power supply board features a LED screen that can display the voltage in real time, convenient to read.
This power supply breakout board is designed with a 4pin floppy drive and has 12 6-pin ports, meets your different needs.
This PCI-E breakout board is designed with a button operation, just press the white button to turn on the power switch.
This power supply breakout board is convenient to connect and use, it is suitable for many types of computer OS.
This server power supply board can be used on many kinds of common servers, it is powerful and safe to use.


Specifications:
Material: Plastic, Metal.
Color: Green.

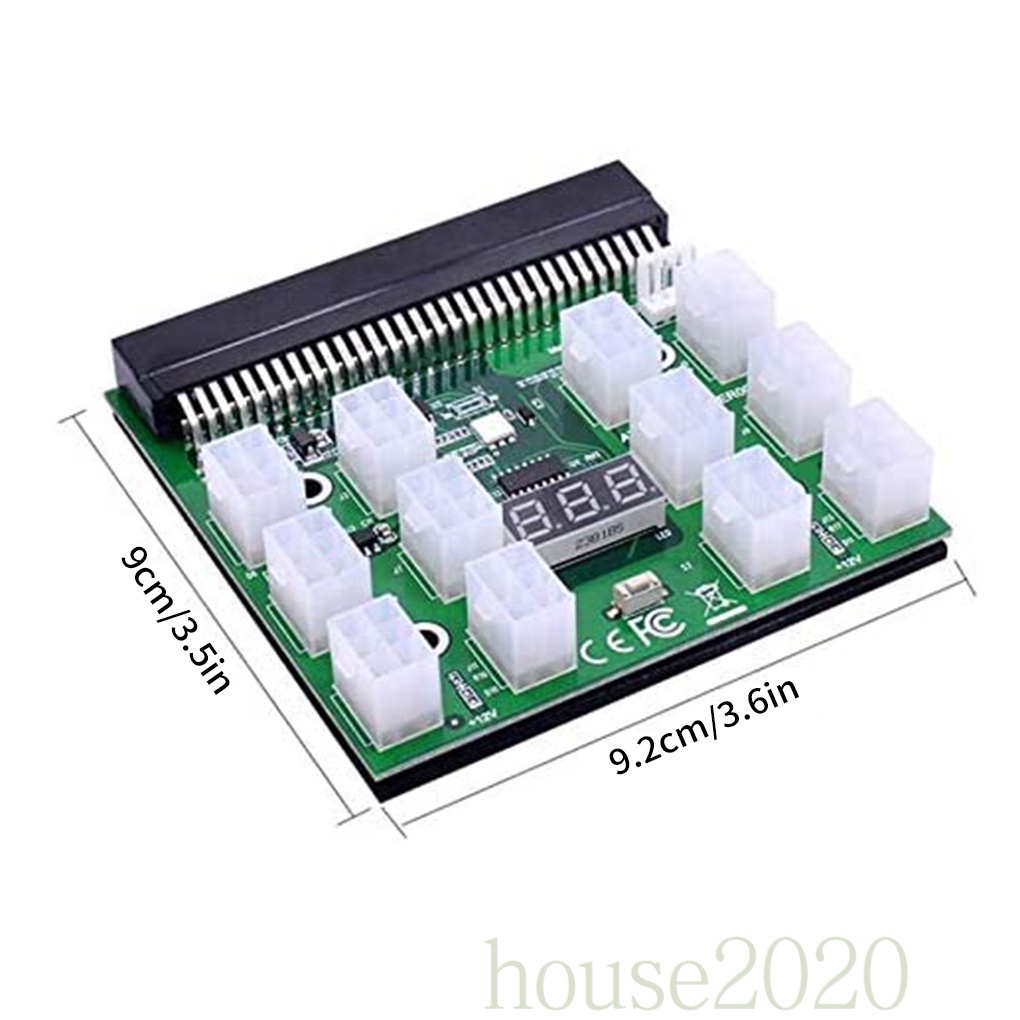

Breakout Board Size: 92*90*17mm.
Output: 12V.
Support system: Replacement for Windows system, replacement for Linux, replacement for Mac.
Compatibility: Compatible with GPU breakout board GPU mining power supply.

Applicable to common server power to:
DPS-1200FB A
DPS-1200QB A
PS-2751-5Q
PS-2751-LF-1F
HSTSN-PL12
DPS-700LB D
PS-2112-5L
DPS-750RB A


Note:
There might be a bit color distortions due to different computer resolutions.
There might be a slight errors due to different hand measurement.
When the floppy drive power line is connected to the main power supply, the power switch is invalid. The switch will turn on with the power supply.
The matching wire is customized, please do not insert any cable at random.
When inserting the line, we must recognize the direction, do not insert the reverse or insert partial position, prevent the burning of the equipment. When inserting the line, hold the socket of the equipment first and then insert the cable, so as to avoid the connect in the socket forcibly and damage the pin.


Package included:
1x Power Supply Server Adapter Breakout Board.
