Detail Hot Bed 3D Printer Heat Controller High Power Mosfet

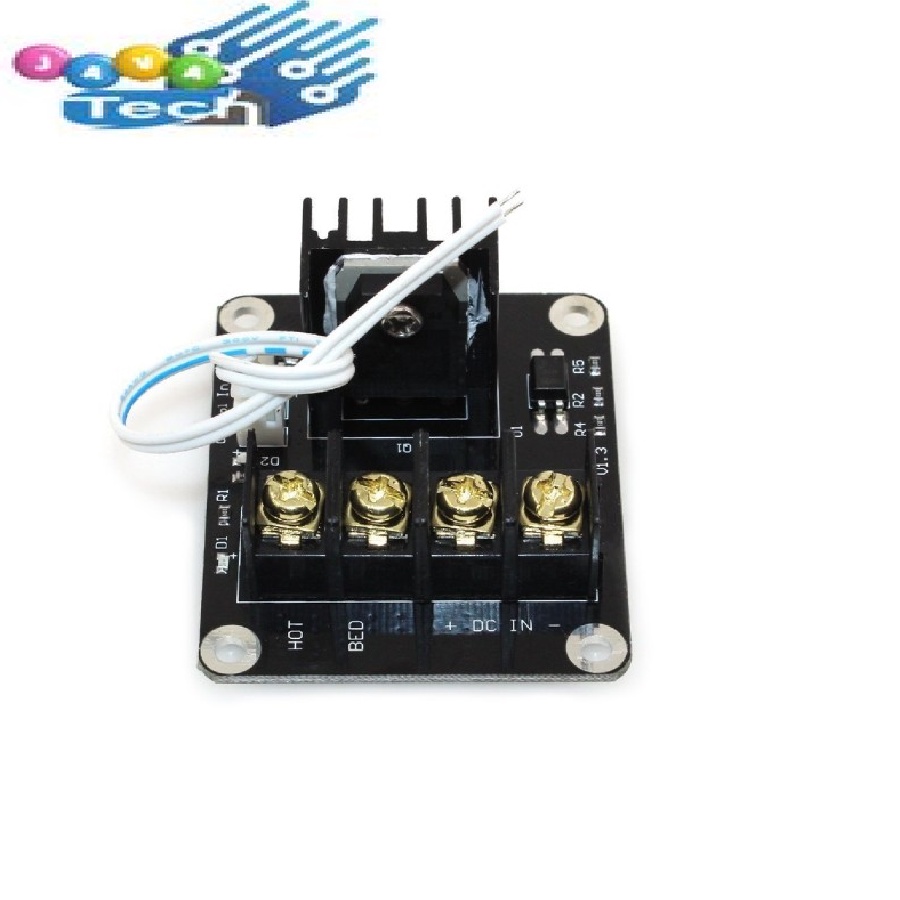

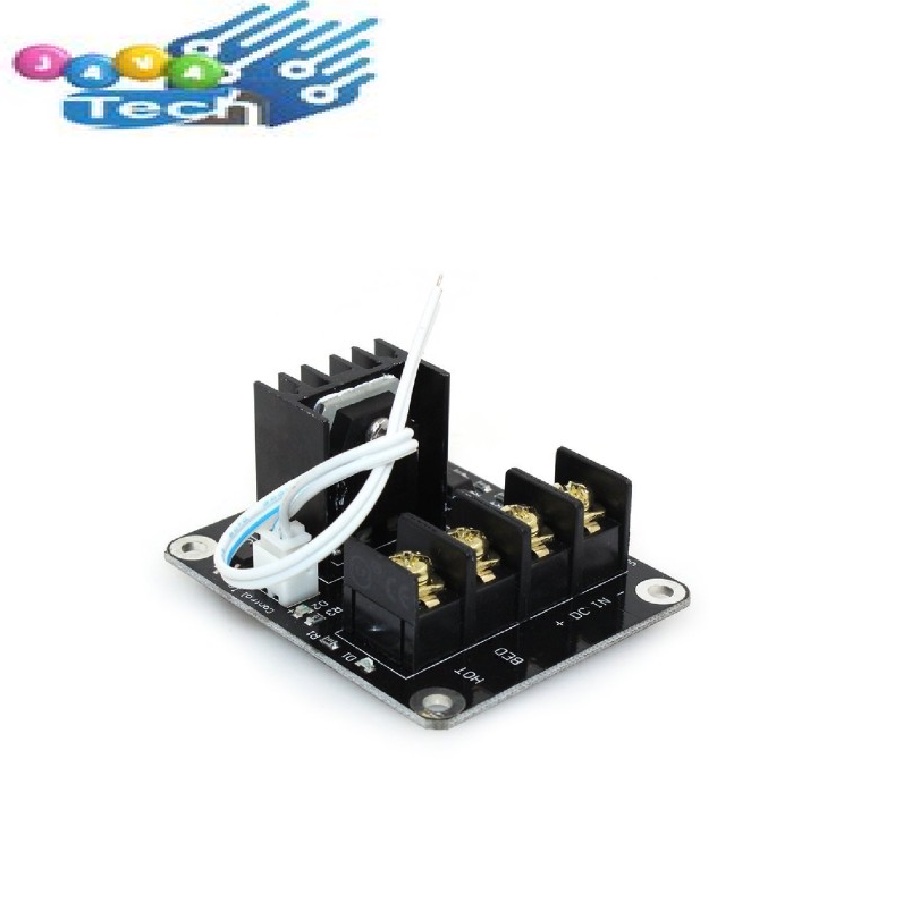

Features:Heated bed power module
Based on powerful MOSFET HA210NO6

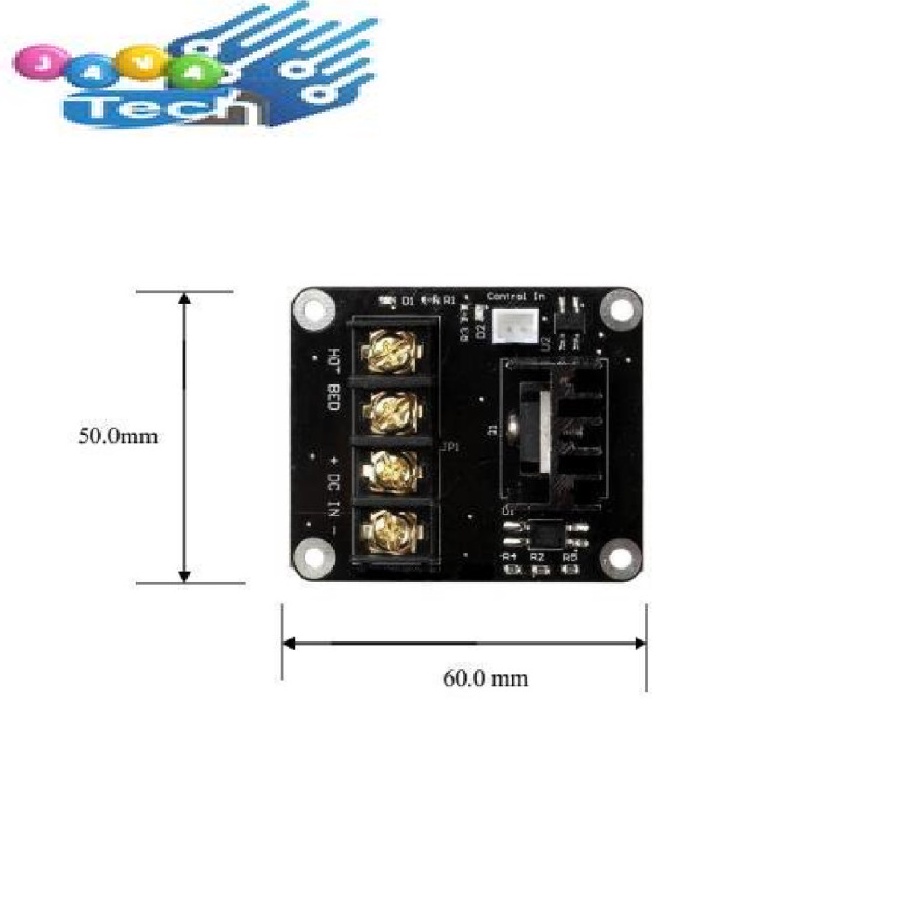

Size: 60*50mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 54*43mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-24V
Maximum current with active cooling: 210A
Style 2:
Size: 70*45mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 62.8*37.8mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-50V
Maximum current with active cooling: 210A

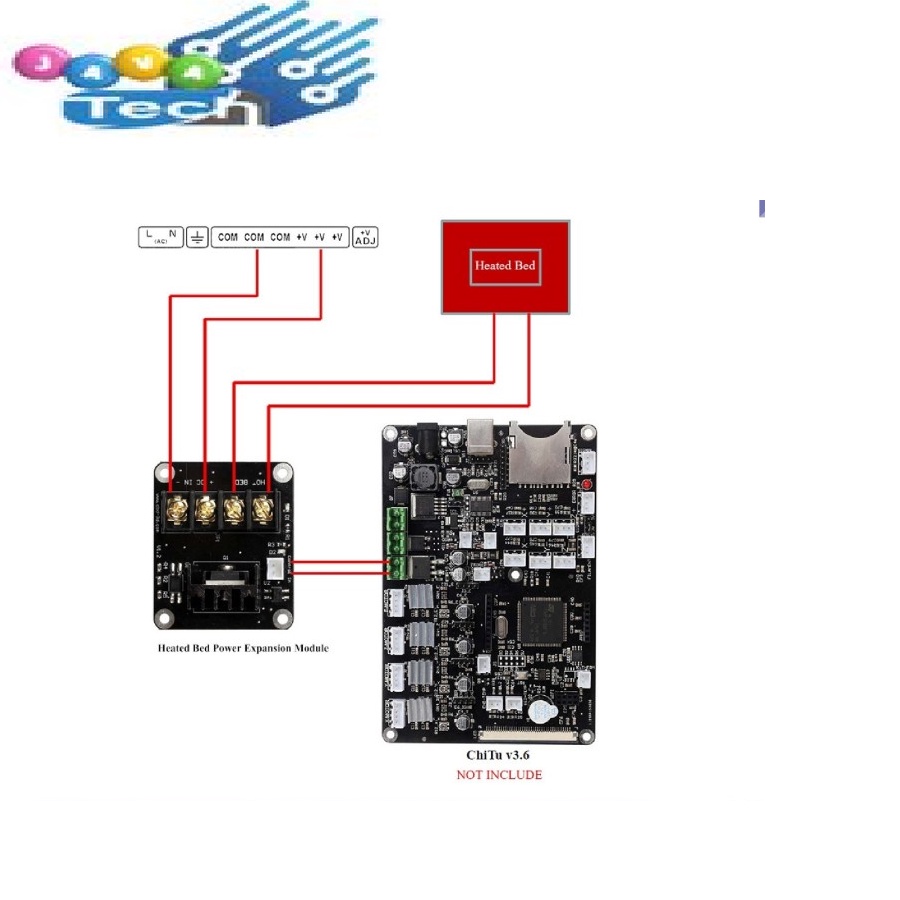

This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Under the premise of normal cooling, it work stable under I(Max)=25A, the current must not exceed 25A while the process working
