    Detail HLK-PM01 AC-DC Isolated Power Supply 5VDC/3W

    Environment Condition:
    -Operation Temperature: -20+60
    -Store Temperature: -40+80
    -Relative humidity: 595 %
    -Atmospheric pressure: 80106 Kpa
    -Sea level elevation: 2000 m
    -Vibration: Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

    Electrical Characteristic:
    -Input characteristics (test at room temperature 20 ).
    -Rated input voltage: 100-240 VAc
    -Input voltage range: 90-264 VAc
    -Maximum input current: 0.2 A
    -Input current surge: 10 A
    -maximum input voltage: 270 VAc
    -Enter slow start: 50 mS
    -Input Low Voltage Efficiency: Vin=110VAcOutput full-load69 %
    -Input High Voltage Efficiency: Vin=220VAcoutput full-load70 %
    -Long-term reliability: MTBF100.000 h
    -Load rated output voltage: +5.01 VDc
    -Full rated output voltage: +5.02 VDc
    -Short-term maximum output current: 1000 mA
    -The maximum output current for a long time: 600 mA
    -Voltage Regulation: 0.2 %
    -Load Regulation: 0.5 %
    -Output ripple and noise: (mVp-p) 50 mV
    -Switch overshoot amplitude: (Rated input voltage and output load plus 10%)5 %VO
    -Output over-current protection: 150-200% of the output maximum load A
    -Output short circuit protection: Direct short circuit at the normal output, automatically resume normal -operation after a short circuit removal

    Safety Characteristics
    -Designed with the input of 0.5A UL certified insurance;
    -PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
    -Safety standards: Compliance with UL1012, EN60950, UL60950
    -Insulation voltage: I / P-O / P: 2500VAC
    -Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 70% RH
    -Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
    -Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
    -RF radiation Immunity: IEC / EN 61000-4-3

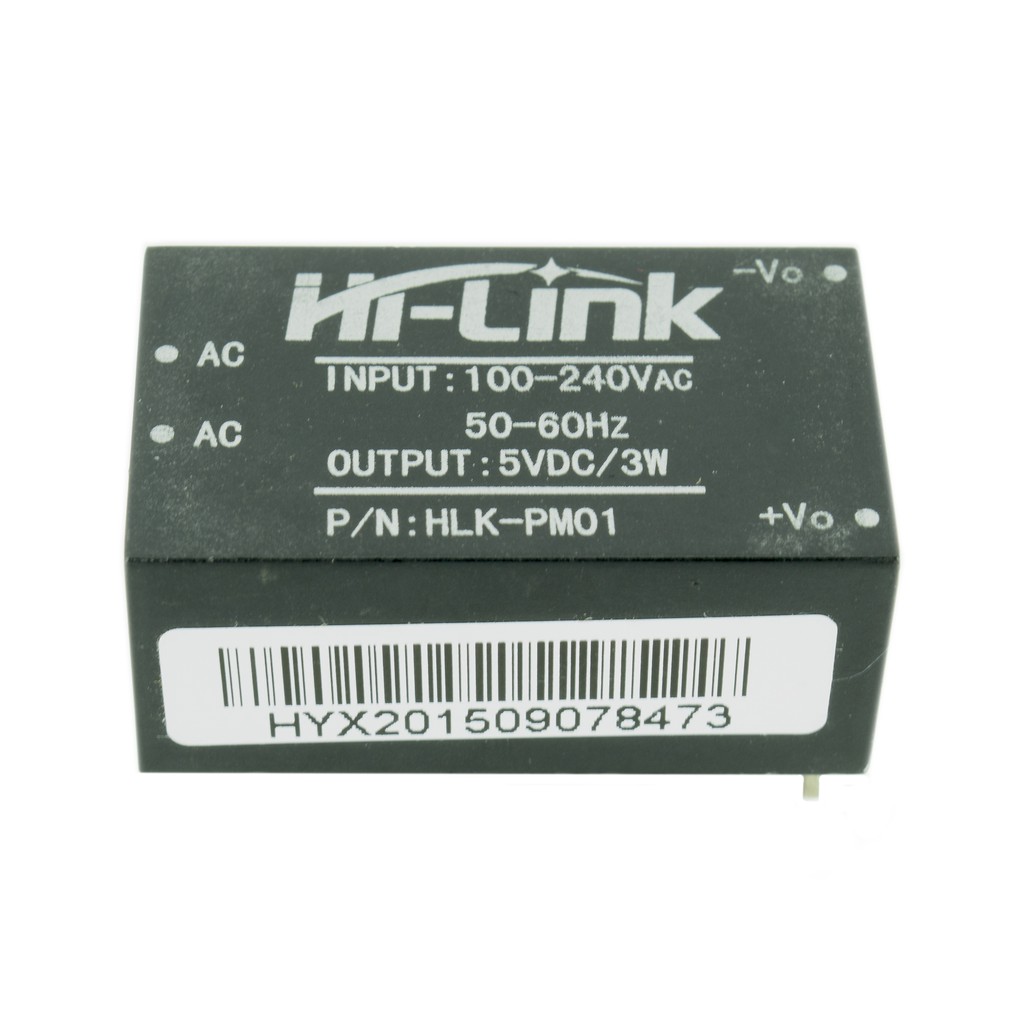

    Gambar produk
