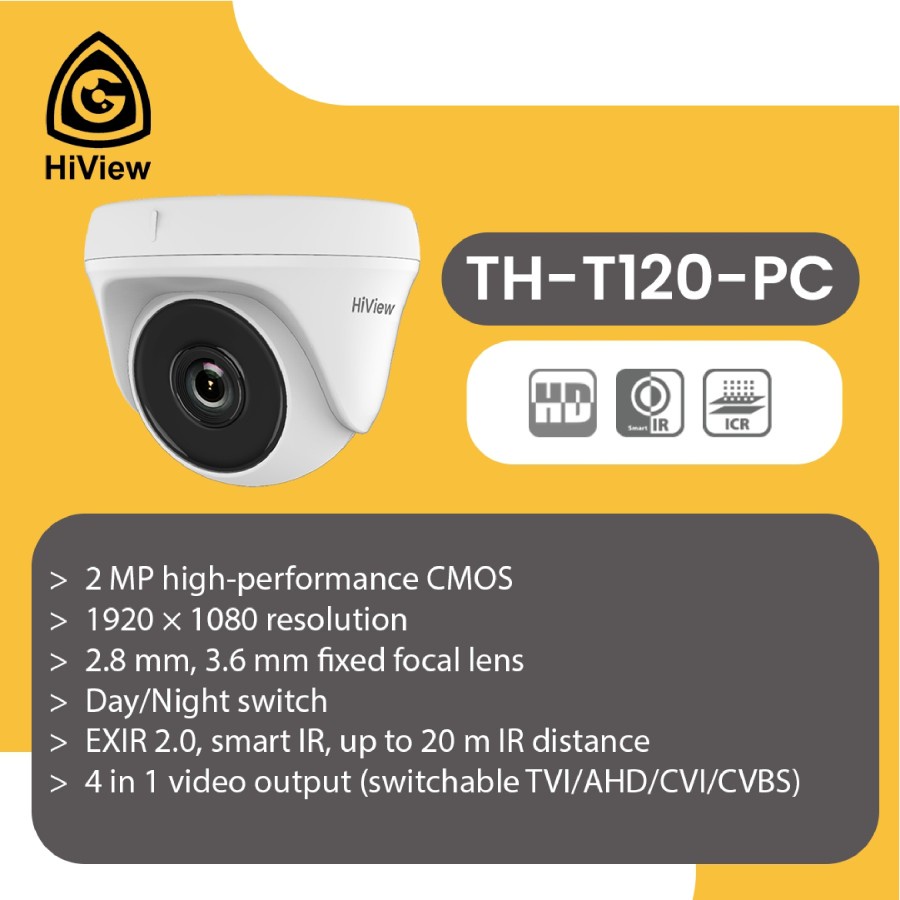

HIVIEW TH T120 PC 2MP INDOOR CAMERA

Detail HIVIEW TH T120 PC 2MP INDOOR CAMERA

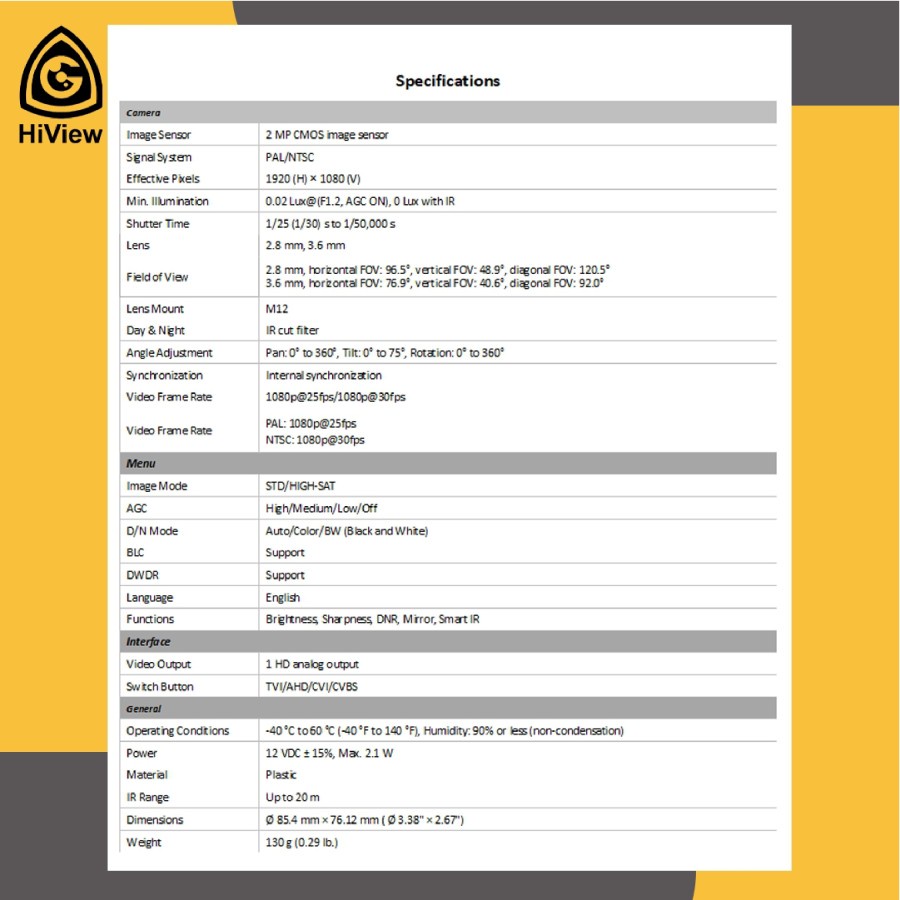

Specifications:

CAMERA
Image Sensor: 2MP CMOS
Signal System: PAL/NTSC
Effective Pixel: 1920 (H) x 1080 (V)
Min. Illumination: 0.02 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: 1/25 (1/30)s to 1/50,000s
Lens: 2.8mm, 3.6mm
Field of View:
- 2.8mm, horizontal FOV: 96.5", vertical FOV: 48.9", diagonal FOV: 120.5"
- 3.6mm, horizontal FOV: 76.9", vertical FOV: 40.6", diagonal FOV: 92.0"
Lens Mount: M12
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synhronization: Internal synchronization
Video Frame Rate: 1080p@25fps/1080p@30fps
Video Frame Rate: PAL: 1080p@25fps, NTSC: 1080p@30fps

MENU
Image Mode: STD/HIGH-SAT
AGC: High/Medium/Low/Off
D/N Mode: Auto/Color/BW (Black and White)
BLC: Support
DW DR: Support
Language: English
Functions: Brightness, Sharpness, DNR, Mirror, Smart IR

INTERFACE
Video Output: 1 HD analog output
Switch Button: TVI/AHD/CVI/CVBS

GENERAL
Operating Conditions:P -40°C to 60°C (-40°F to 140°F, Humidity: 90% or less (non-condensation)
Power: 12VDC ±15%, Max. 2.1W
Protection Level: IP66
Material: Plastic
IR Range: Up to 20m

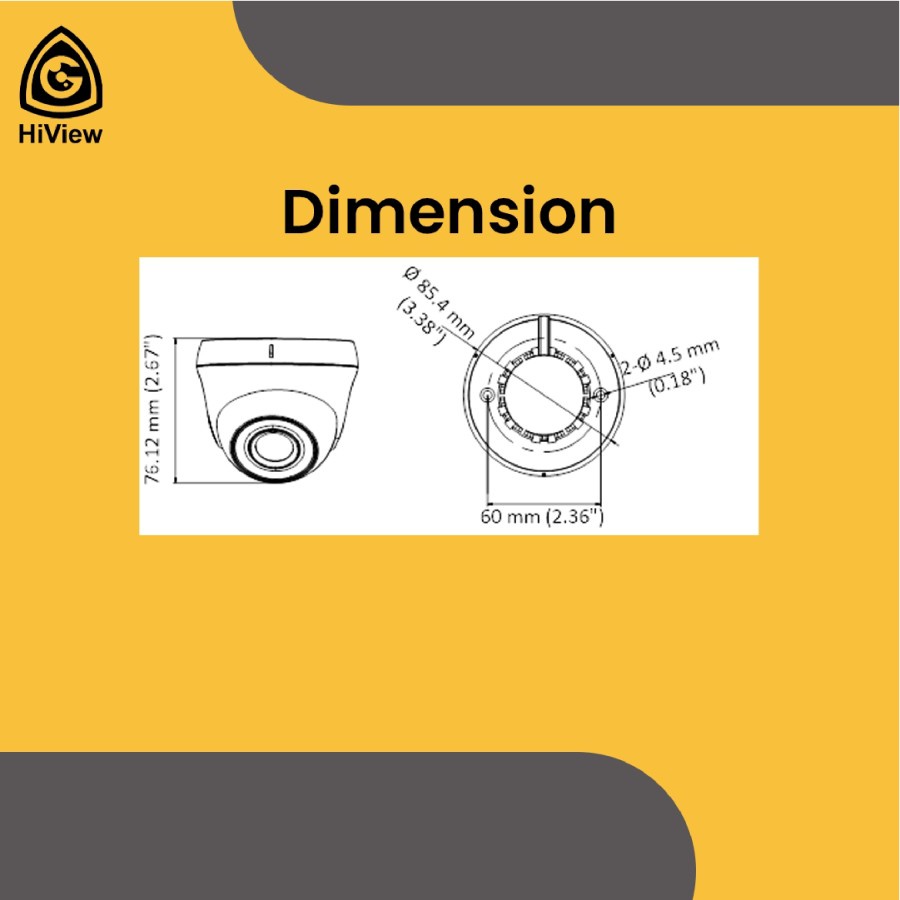

Dimensions: Ø85.4mm x 76.12mm (Ø3.38" x 2.67")
Weight: 130g (0.29 lb.)

Gambar produk
