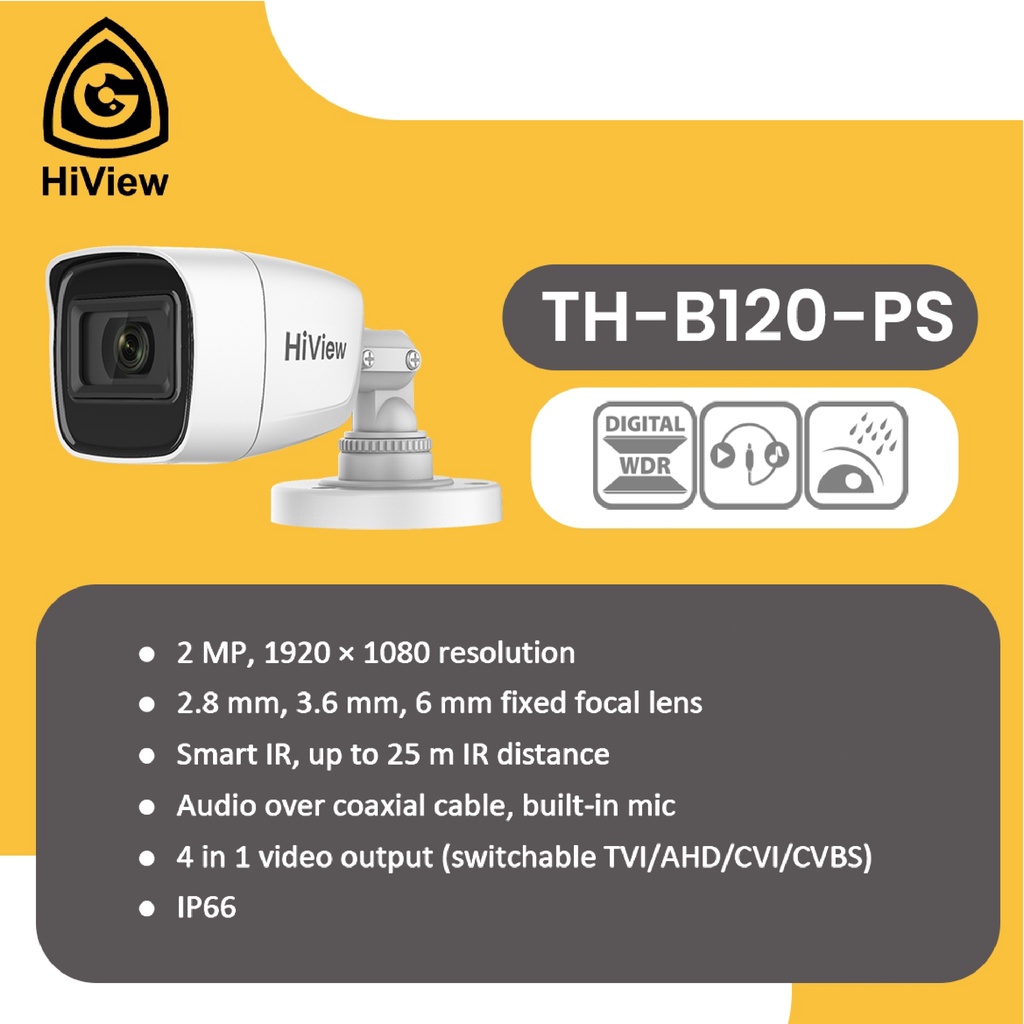

HIVIEW TH B120 PS 2MP OUTDOOR CAMERA

Detail HIVIEW TH B120 PS 2MP OUTDOOR CAMERA

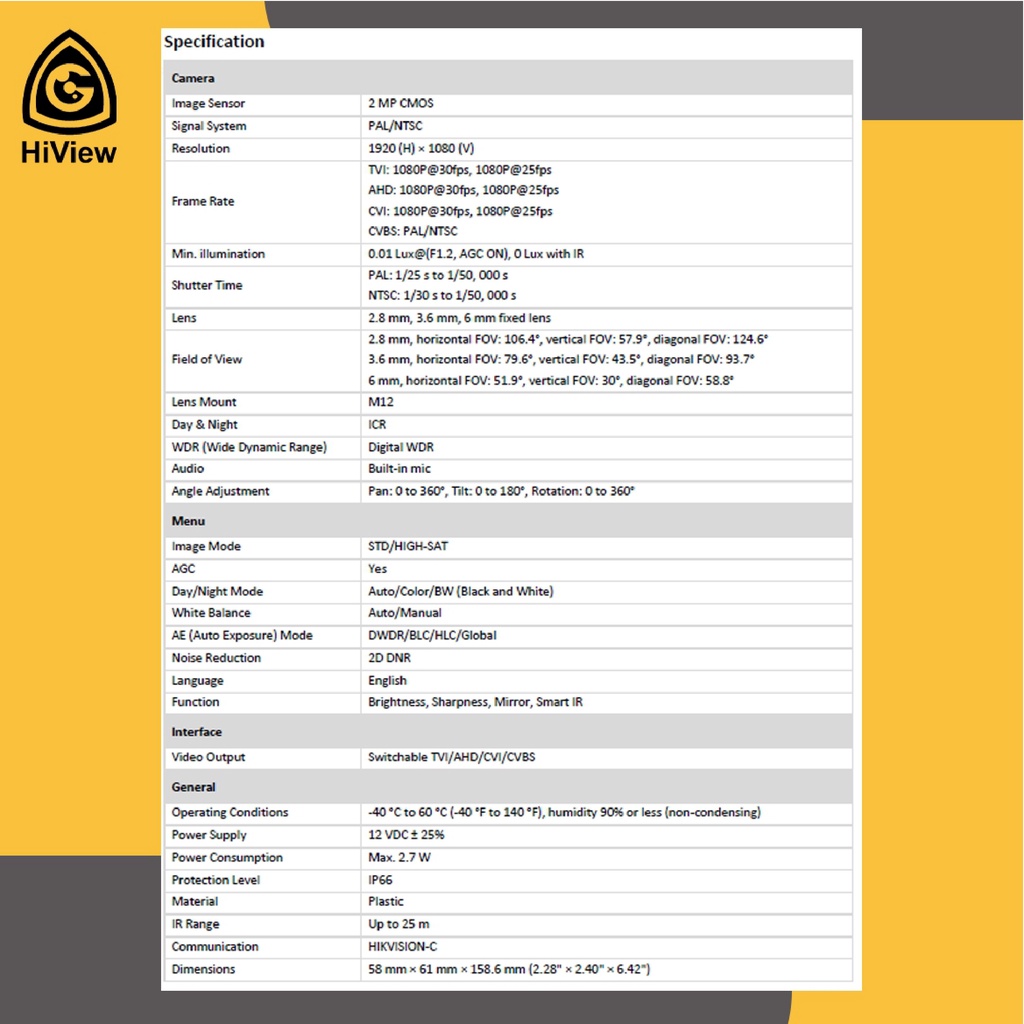

Specifications:

CAMERA
Image Sensor: 2MP CMOS
Signal System: PAL/NTSC
Resolution: : 1920 (H) x 1080 (V)
Frame Rate:
- TVI: 1080p@30fps, 1080p@25fps
- AHD: 1080p@30fps, 1080p@25fps
- CVI: 1080p@30fps, 1080p@25fps
- CVBS: PAL/NTSC
Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 (1/30) s to 1/50,000s, NTCS: 1/30 s to 1/50,000 s
Lens: 2.8mm, 3.6mm, 6mm fixed lens
Field of View:
- 2.8mm, horizontal FOV: 96.5", vertical FOV: 48.9", diagonal FOV: 120.5"
- 3.6mm, horizontal FOV: 76.9", vertical FOV: 40.6", diagonal FOV: 92.0"
Lens Mount: M12
Day & Night: ICR
WDR (Wide Dynamic Range): Digital WDR
Audio: Built-in mic
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

MENU
Image Mode: STD/HIGH-SAT
AGC: Yes
Day/Night Mode: Auto /Color/BW (Black and White)
White Balance: Auto/Manual
AE (Auto Exposure) Mode: DWDR/BLC/HLC/Global
Noise Reduction: 2D DNR
Language: English
Functions: Brightness, Sharpness, Mirror, Smart IR

INTERFACE
Video Output: Switchable TVI/AHD/CVI/CVBS

GENERAL
Operating Conditions:P -40°C to 60°C (-40°F to 140°F, Humidity: 90% or less (non-condensing)
Power Supply: 12 VDC ±25%
Power Consumption: Max. 2.7 W
Protection Level: IP66
Material: Plastic
IR Range: Up to 25m
Communication: HIKVISION-C

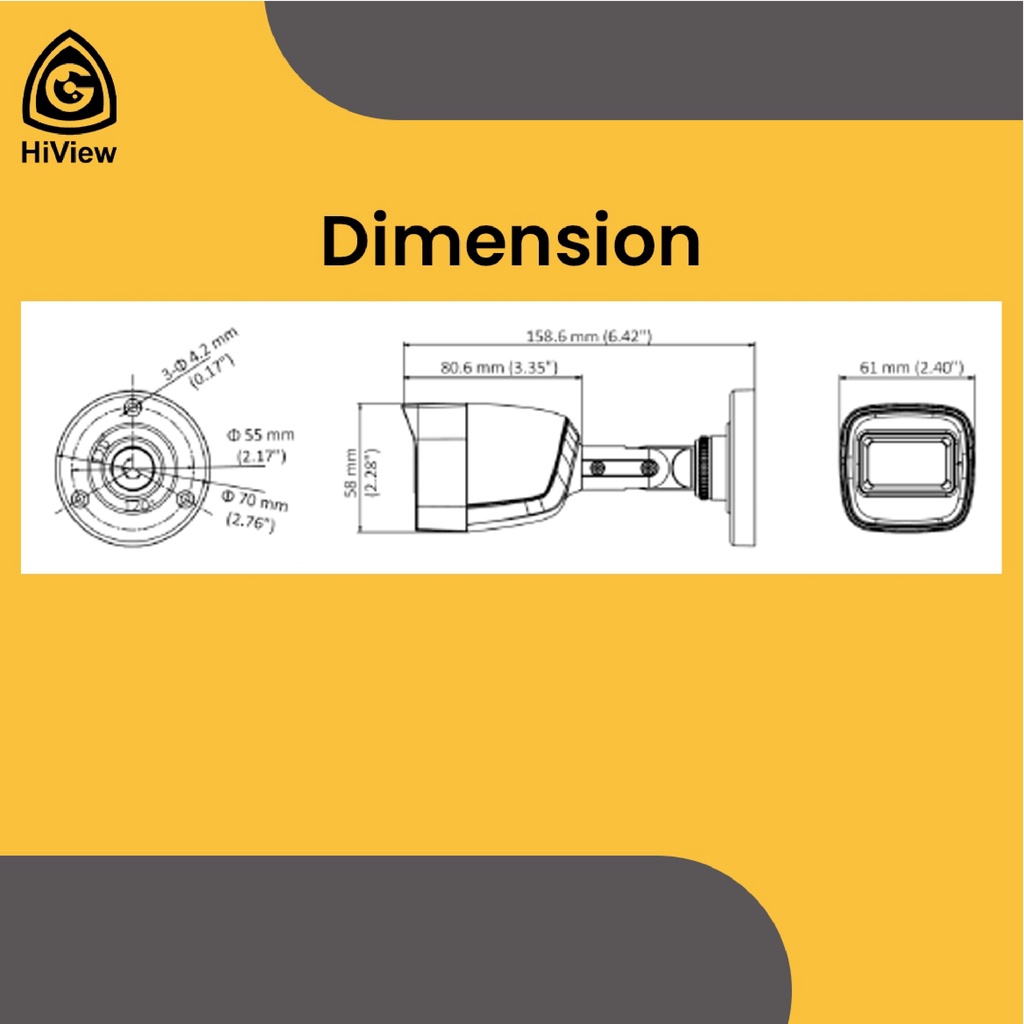

Dimensions: 58mm x 61mm x 158.6mm (2.28" x 2.40" x 6.42")
