FO - Hioso HA7304 Mini 4 Port Epon ONU OLT SFP

Detail FO - Hioso HA7304 Mini 4 Port Epon ONU OLT SFP

NOTE

- Garansi toko 2 minggu setelah barang diterima
- Ongkir ditanggung pembeli




Overview

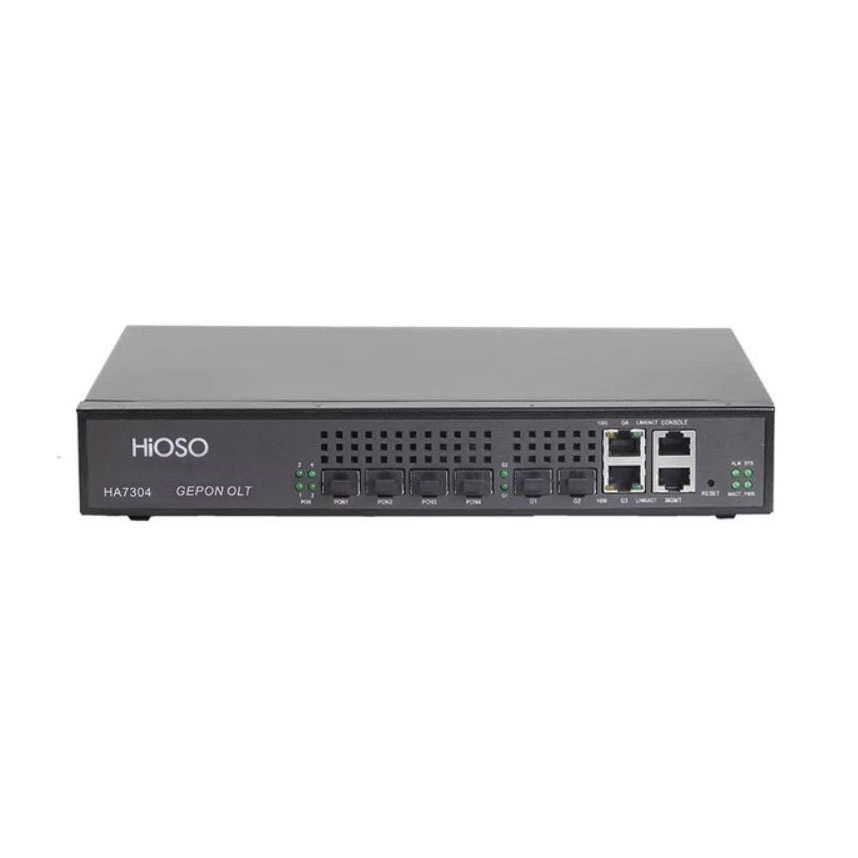

HA7304 is a small standalone type 4 SFP PON ports OLT. HA7304 works with HA7200

series ONU (also other brands EPON ONUs which support CTC) and ODN, to establish
a

passive optic network. The whole system supports 4-PON, 256 ONUs.

HA7304 applies to counties, towns and villages fiber network access. It is also
applied to

FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access.

HA7304 meets China Telecom CTC EPON standards.

Feature

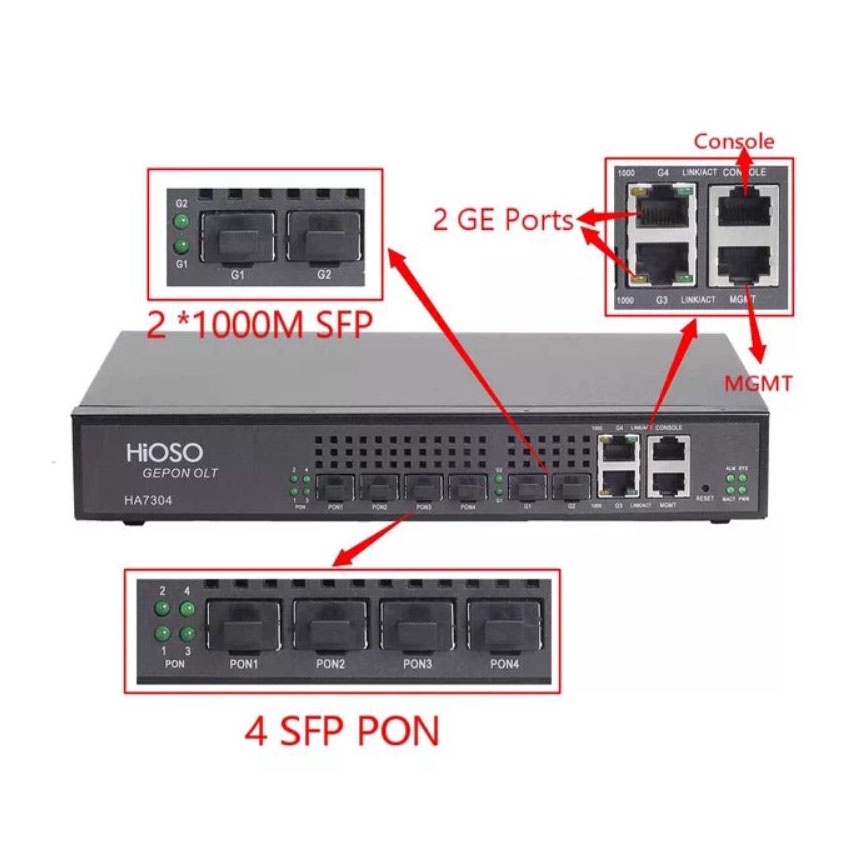

 Supply 4 SFP PON ports, 2 1000M SFP ports, 2 1000M RJ45 uplink ports

 Each PON port support 1.64 split ratio, total 256 ONUs access

 Distance can reach 20km under 1:32 split ratio, maximum 1:64 under 10km.

 Support to work with ctc standards ONUs

 Support WEB/SNMP/CLI management

 Apply for town,village fiber network and surveillance, apply for FTTX network

Application

1000M point to multi-point optic passive network

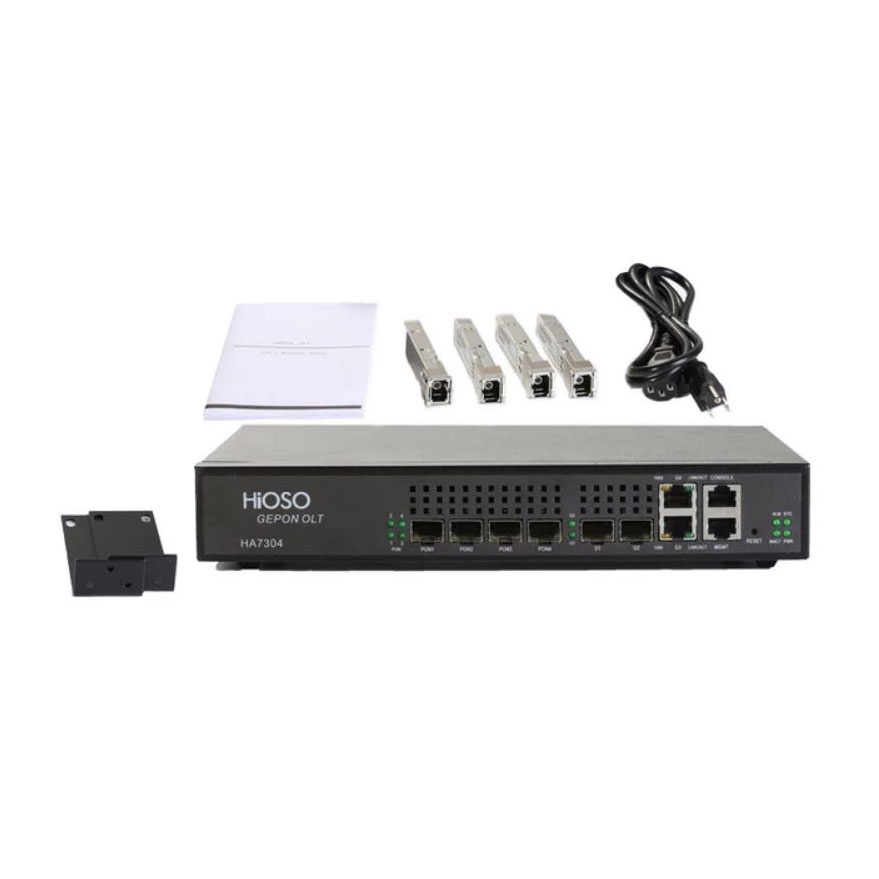

Isi paket

1 x HA7304

4 x SFP PX20+++ (9db)

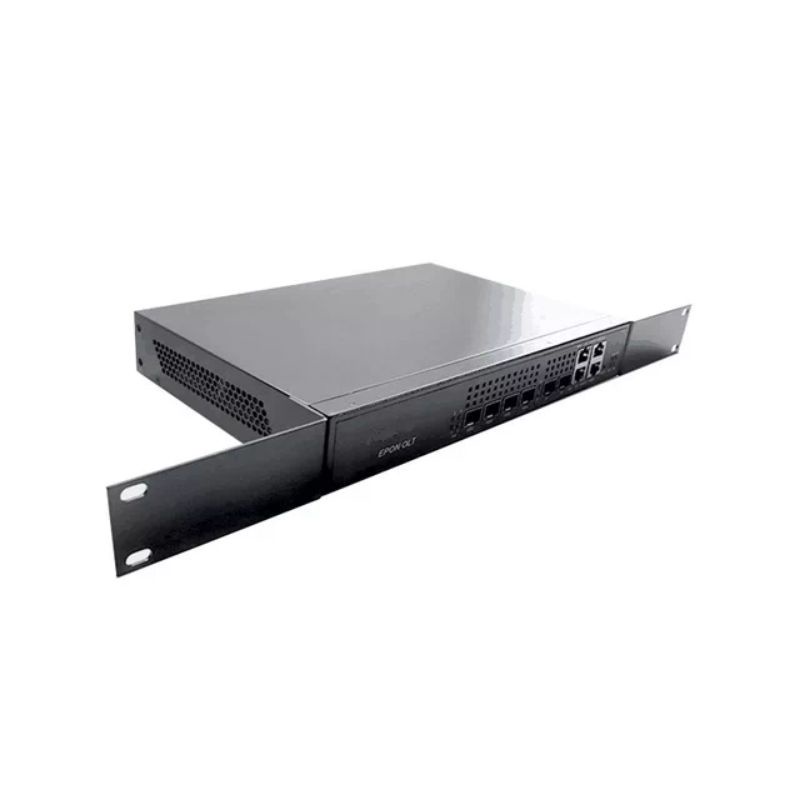

2 x Bracket

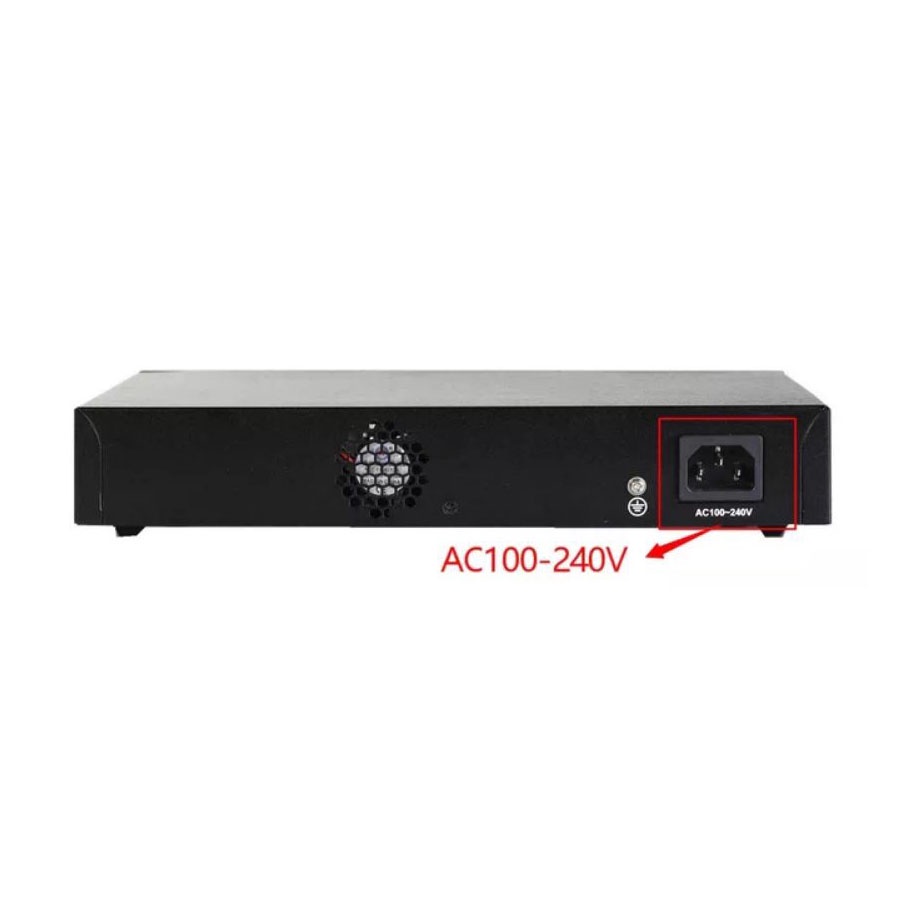

1 x Kabel Power

1 x Manual

Gambar produk
