Hioso HA7302CST 2 PORT EPON OLT SFP PX20++9db FTTH ISP

Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > Hioso HA7302CST 2 PORT EPON OLT SFP PX20++7db FTTH ISP
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Hioso HA7302CST 2 PORT EPON OLT SFP PX20++9db FTTH ISP

Overview Of Hioso 2Port EPON OLT SFP PX20+++ 7db 2Pcs FTTH ISP

HIOSO 2PORT EPON OLT

* Packaged for different FTTH solutions by Kosmoswave.
* OLT is a Fiber To The Home (FTTH) network element that provides a PON interface to the core IP/Ethernet and network operations.

Parameter Specifications
HA7302CST is a standalone 2-PON OLT
Working with HA7200 series ONU and ODN to establish a passive optic network
It supports 2-PON, 64 ONUs access
It supports 10~20km transmission distance at the base of high bandwidth
Full line speed L2/L3 transition capacity
It supports SNMP management

Operating Wavelength
1310RX/1490TX
Optical power +0 ~ +7dBm
Receiving sensitivity -27dBm
Max distance 20km
Max splitter ratio 1:32
Capacity 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC 8K
Uplink port 2 10/100/1000 Ethernet RJ45 ports
PON port 2 SC fiber ports
Control port RJ45 console port, to debug the device
MTBF 100,000 hours

EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time
operation)

Protocols supported
Support IEEE802.3, IEEE802.3u, IEEE802.3ab
Support IEEE802.1Q VLAN
Support IEEE 802.1P QoS
Management CLI and GUI, SNMP, WEB
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc


Happy shopping

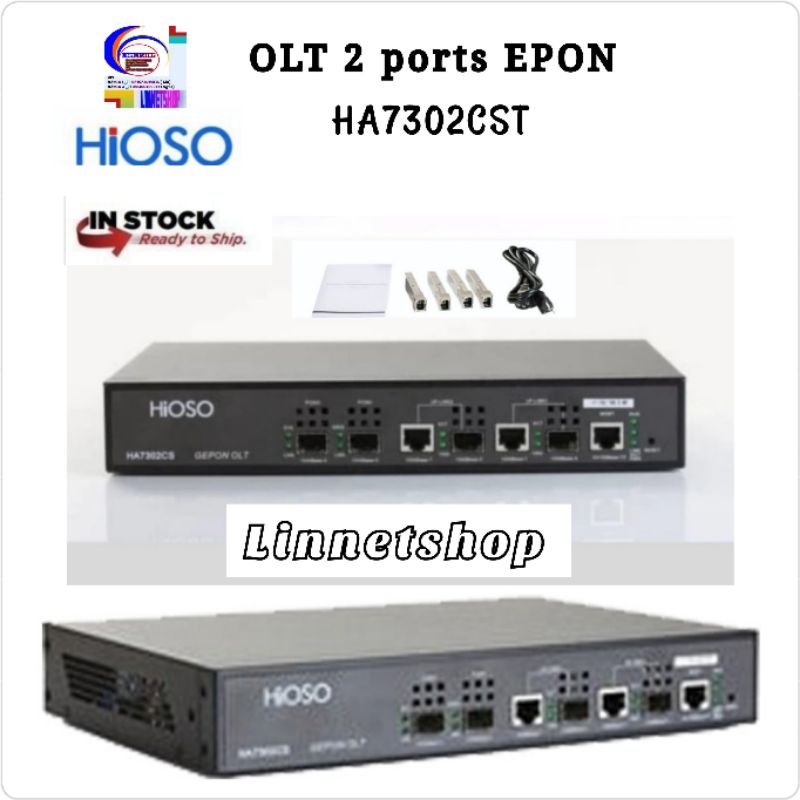

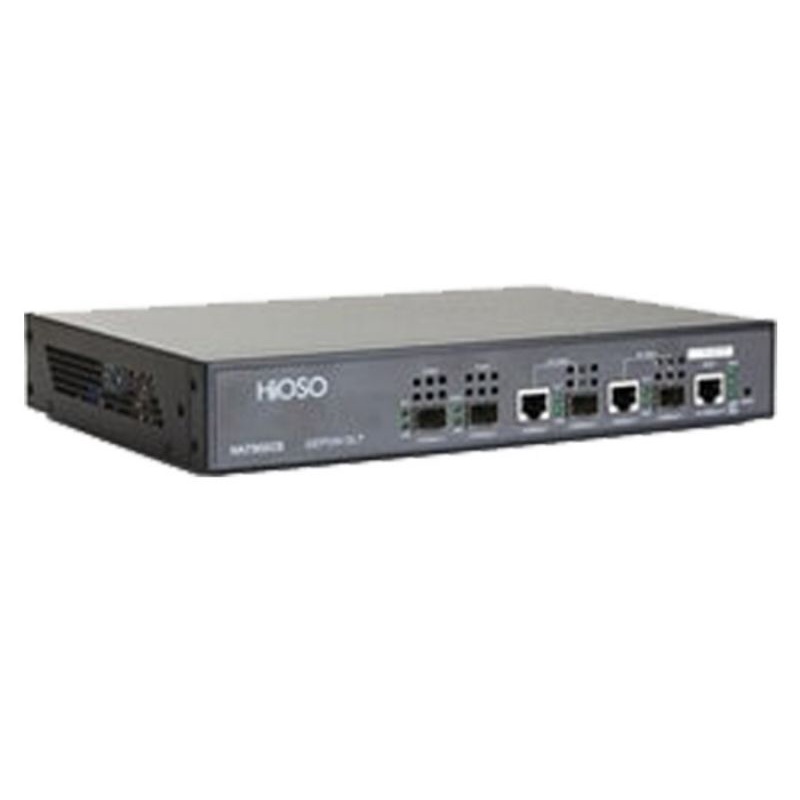

Gambar produk
