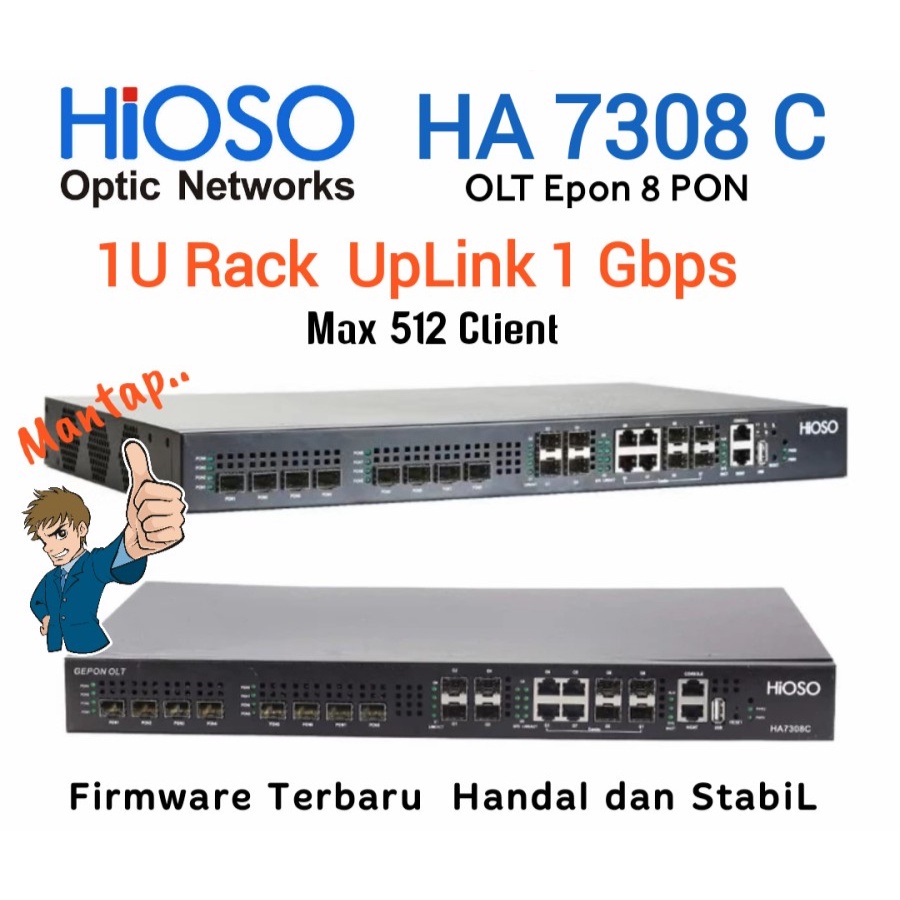

HIOSO EPON OLT HA7308C 8P PON

Detail HIOSO EPON OLT HA7308C 8P PON

The following is about HA7308C Rack Type 8 PON OLT related Parameter, I hope to help you better understand HA7308C Rack Type 8 PON OLT .

Parameter

Specification
1310(RX) /1490(TX)
Optical power : +2.5 ~ +7dBm
Receiving sensitivity : -27dBm
Max distance : 20km
Max splitter ratio : 1:64
Capacity : 8 SFP PON, each PON supports max 64pcs ONU, total 512pcs ONU
MAC : 16k
Uplink port : 4 SFP ports + 4 Combo(SFP/TP) ports
PON port : 8 SFP 1000M fiber ports
Control port : 1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device
1 USB port
MTBF : 100,000 hours
EPON traits : Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
Protocols supported : Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree
Support IEEE 802.1P QoS、IEEE802.3X Flow Control
Support IEEE802.3ad Trunk、IEEE802.1W RSTP
Network management : Support GUI management based on SNMP
Support WEB management and Telnet GUI management based on CLI
Other functions : Support 1GMPv1/v2 protocol report, query and leave message mouse
Support DHCP Snooping
Support Ipv4 address learning based at DHCP Snooping
Support ARP Snooping, QoS etc

Working Environment

Parameter

Specification

Power : Dual AC100~240V 50/60HZ
Power Consumption : 35W
Operating temperature : -10—55 C
Storage temperature : -40—70 C
Humidity : 5%--90% non-condensing
Dimension : 440mm(length) * 260mm(width) * 44mm(height)
