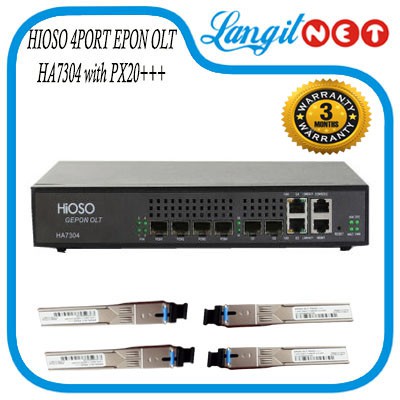

HIOSO EPON OLT HA7304 WITH PX20 4-PON port-SFP

Detail HIOSO EPON OLT HA7304 WITH PX20 4-PON port-SFP

HA7304 is a small standalone type 4 SFP PON ports OLT. HA7304 works with HA7200 series ONU and ODN, to establish a passive optic network. The whole system supports 4-PON, 256 ONUs.

HA7304 applies to counties, towns and villages fiber network access. It is also applied to FTTH/FTTB/FTTO projects, for IP phone, Ethernet data and IPTV services access. It supports WEB management. HA7304 meets China Telecom EPON standards.
Feature
Supply 4SFP PON ports, 2 1000M SFP ports, 2 1000M RJ45 uplink ports
Each PON port support 1.64split ratio, total 256 ONUs access
Distance can reach 20km under 1:32 split ratio
Support to work withHA400/HA7200 series ONUs to establish passive network
Support WEB management
1U rack design, inside fan,better for heat dissipating and reliability operating
Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

Application
The above is the Description for HA7304 Standalone 4PON EPON OLT. If you want to know more about epon olt, epon, etc., you can contact us.
Parameter of this HA7304 Standalone 4PON EPON OLT
The following is about HA7304 Standalone 4PON EPON OLT related Parameter, I hope to help you better understand HA7304 Standalone 4PON EPON OLT.

Parameter
Specification
Operating wavelength
1310(RX) /1490(TX)
Optical power
+2.5 ~ +3dBm
Receiving sensitivity
-30dBm
Max distance
20km
Max splitter ratio
1:64
Capacity
4 PON, maximum 256pcs ONU
MAC
8k
Uplink port
2 SFP ports + 2 TP ports
PON port
4 SFP PON ports
Control port
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device
1 USB port
MTBF
100,000 hours

EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
