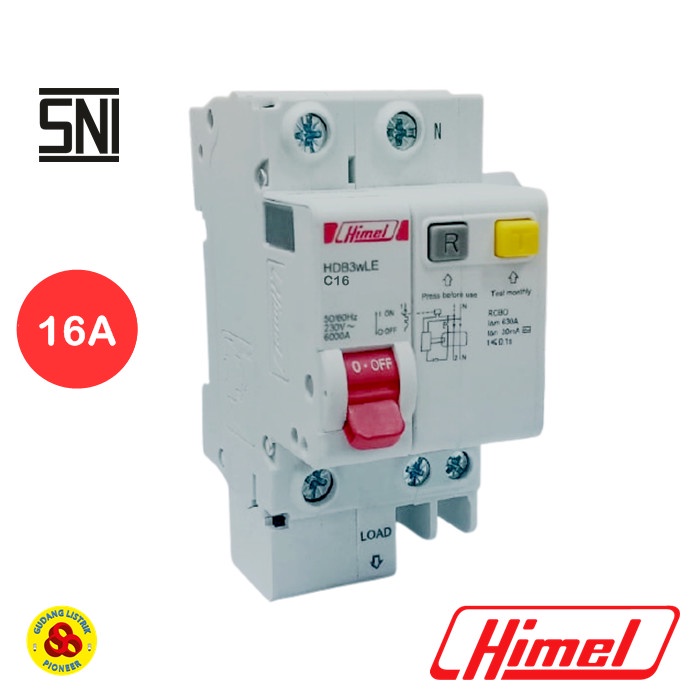

Himel RCBO 1P + N 16A C 6kA 30mA SNI HDB3WLEN1C16 Himel 16Amp

Merek: Himel | Lihat selengkapnya produk Elektronik dari Himel
Elektronik > Kelistrikan > Kelistrikan Lainnya > Himel RCBO 1P + N 16A C 6kA 30mA SNI HDB3WLEN1C16 Himel 16Amp
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:GUDANGLISTRIK_INDONESIALihat semua produk Elektronik oleh GUDANGLISTRIK_INDONESIA
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Himel RCBO 1P + N 16A C 6kA 30mA SNI HDB3WLEN1C16 Himel 16Amp

Residual Current OPERATED Circuit Breaker (RCBO)
Sensitifitas 30mA
Rate Ampere : 16A
1Pole+N
RCBO


Poles : 1P + N
rated current : 16 A
- Manual reset earth leakage
- Manual reset overcurrent
rated operational voltage : 230 V AC 50...60 Hz
Input overvoltage protection : 280 V +/- 5 % AC
Residual current : 30 mA
Curve code : C
Magnetic tripping limit : 5...10 x In
Breaking capacity : 6.0 kA
rated insulation voltage : 500.0 V between phases
Protection type : - Short-circuit protection
- Overload protection
- Earth-leakage protection
- Residual current breaker with overcurrent protection (RCBO)
Clamping connection capacity : <= 16 mm²
Provision for padlocking : Handle padlockable in on and off position
Height : 94 mm
Width : 44.5 mm
Depth : 74.5 mm


Environmental characteristic : - High temperature: category 2 28 cycles conforming to IEC 60068-2
- Humidity resistant: category 2 28 cycles conforming to IEC 60068-2
Dielectric test voltage : 2.0 kV 50...60 Hz 1 min
Shock resistance : 30 gn (duration = 11.0 ms) for 3 shocks
IP degree of protection : IP20
Electrical shock protection class : Class II
Standards : IEC 61009-1
Product certifications : CE

Gambar produk

Himel RCBO 1P + N 16A C 6kA 30mA SNI HDB3WLEN1C16 Himel 16Amp
Himel RCBO 1P + N 16A C 6kA 30mA SNI HDB3WLEN1C16 Himel 16Amp
