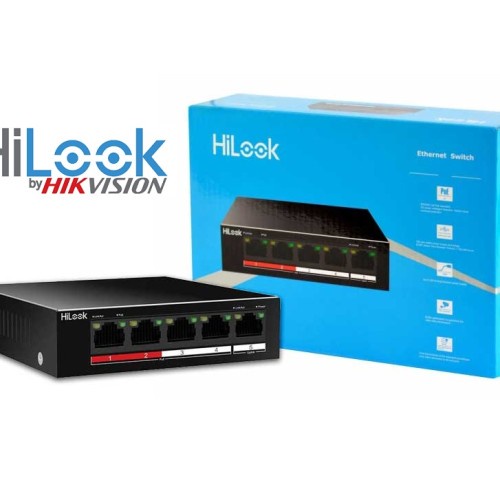

HILOOK Switch Hub POE 4 Port NS 0105P 35 B Fast Ethernet Unmanaged

Detail HILOOK Switch Hub POE 4 Port NS 0105P 35 B Fast Ethernet Unmanaged

4 Port Fast Ethernet Unmanaged POE Switch

- Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
- All ports support 6 kV lighting protection
- 35 W PoE power budget
- Maximum transmission distance is 250 meters
- MAC address auto learning and auto aging

General
Shell
Metal material, fan-free design
Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Power Supply
48 VDC, 0.8 A
Storage Humidity
5% to 95% (no condensation)
Net Weight
0.2 kg (0.4 lb)
Gross Weight
0.48 kg (1.06 lb)
Dimension (L × H × D)
105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating Humidity
5% to 95% (no condensation)
Power Consumption In Idle
3 W
Network Parameters
Port Number
4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode
Store-and-forward switching
Working Mode
Standard mode (default); Extend mode
MAC Address Table
1 K
Switching Capacity
1 Gbps
Packet Forwarding Rate
0.744 Mpps
Internal Cache
448 Kbits
High Priority Ports
Ports 1 to 2
Ports For Long-Distance Transmission
Ports 1 to 4
PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at
PoE Power Pin
Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE Port
Ports 1 to 4
Max. Port Power
30 W
PoE Power Budget
35 W
Max. Power Consumption
38 W
