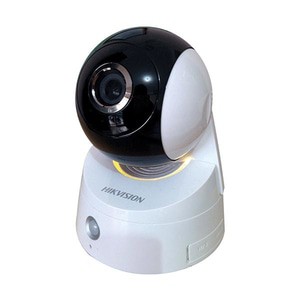

Detail Hikvision Pan & Tilt IP Camera DS-2CD2Q10FD-I (W) CCTV IPCamera
Model
parameters
DS-2CD2Q10FD-I(W)
1.0 Megapixel CMOS PT Camera
Camera
Image Sensor
1/4" Progressive Scan CMOS
Min. Illumination
0.01Lux @(F1.2,AGC ON) ,0 Lux with IR
Shutter Speed
1/25 s to 1/100,000 s
Lens
4mm@ F2.0, Angle of view: 79 (2.8mm, 6mm optioanl)
Lens Mount
M12
Day &Night
IR cut filter with auto switch
Pan & Tilt
Pan:0 - 360, Tilt: -15 - 90
Digital Noise Reduction
3D Digital Noise Reduction
WDR
Digital WDR
Compression Standard
Video Compression
H.264 / MJPEG
H.264 encoding level
BaseLine Profile/Main Profile
Video Bit Rate
32Kbps~16Mbps
Audio Compression
G.711/G.726/MP2L2
Audio Bit Rate
64Kbps(G.711) / 16Kbps(G.726) / 32~128Kbps(MP2L2)
Max. Resolution
1280 720
Frame Rate
50 Hz: 25 fps (1280 720), 25 fps (704 576), 25 fps (640 480)
60 Hz: 30 fps (1280 720), 30 fps (704 576), 30 fps (640 480)
