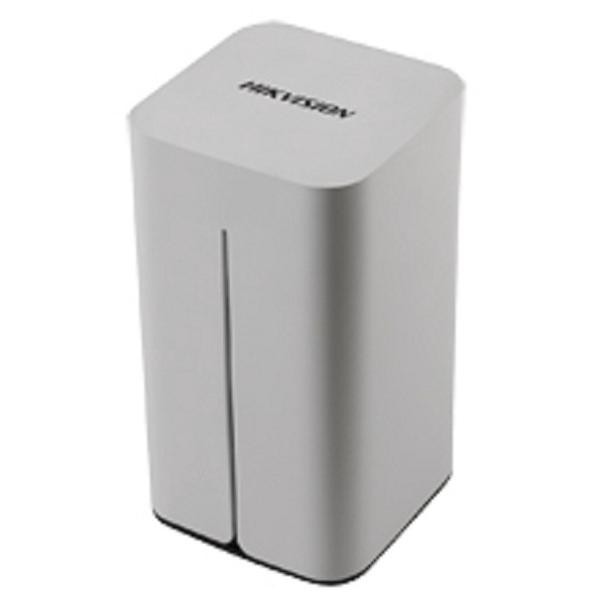

Hikvision NVR Ds-7108ni-e1/v/w Nvr

Detail Hikvision NVR Ds-7108ni-e1/v/w Nvr

Model DS-7108NI-E1/V/W
Video/Audio
Input
IP video Input 8-ch
Video Compression H.264, MPEG4
Protocol
HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON,
HUNT, ONVIF (version 2.4), PANASONIC, PELCO, PSIA, RTSP,
SAMSUNG, SANYO, SONY, VIVOTEK ,ZAVIO
Network
Incoming Bandwidth 50Mbps
Outgoing Bandwidth 80Mbps
Protocol IPv6, UpnP, SNMP, NTP, SADP, DDNS, SMTP, NFS, iSCSI.
Video/Audio
Output
Recording Resolution 6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF
/QCIF
HDMI Output
(with audio output)
1-ch, resolution: 1920 1080P /60Hz, 1600 1200 /60Hz, 1280 1024 /60Hz,
1280 720 /60Hz, 1024 768 /60Hz
Playback Resolution 6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF
/QCIF
Synchronous Playback 8-ch
Record
Record Type
Manual, Continuous, Motion Detection, Alarm, Motion Detection & Alarm,
Motion Detection - Alarm, VCA.
Playback Type
Instant Playback, Normal Playback, Event Playback, Tag Playback, Log
Playback, Smart Playback, External file Playback.
Backup Mode Normal, Event
Hard disk
SATA 1 SATA interface for 1 HDD
Capacity 2.5-inch, 500G / 1T
External
Interface
Network Interface 1 RJ-45 10 /100 Mbps WAN interface; 3 RJ-45 10 / 100M LAN
interfaces.
USB Interface 1 USB 3.0
Wireless
Frequency Band 2.4GHz
Antenna Structure 2 2MIMO
Transmission Rate 300Mbps
Transmission Standard IEEE 802.1b/g/n
Others
Power Supply 12VDC
Consumption 12 W
Working Temperature 0 C ~ +40 C (+32 F ~ +104 F)
Working Humidity 10 % ~ 90 %
Dimensions
(W D H)
87 87 157 mm (3.4 3.4 6.2 inch)
Weight 0.53 Kg (1.2lb)




Connectable to the third-party network cameras like ACTI, Arecont,
AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA,
SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.
Up to 8 network cameras can be connected.
Support live view, storage, and playback of the connected camera with up
