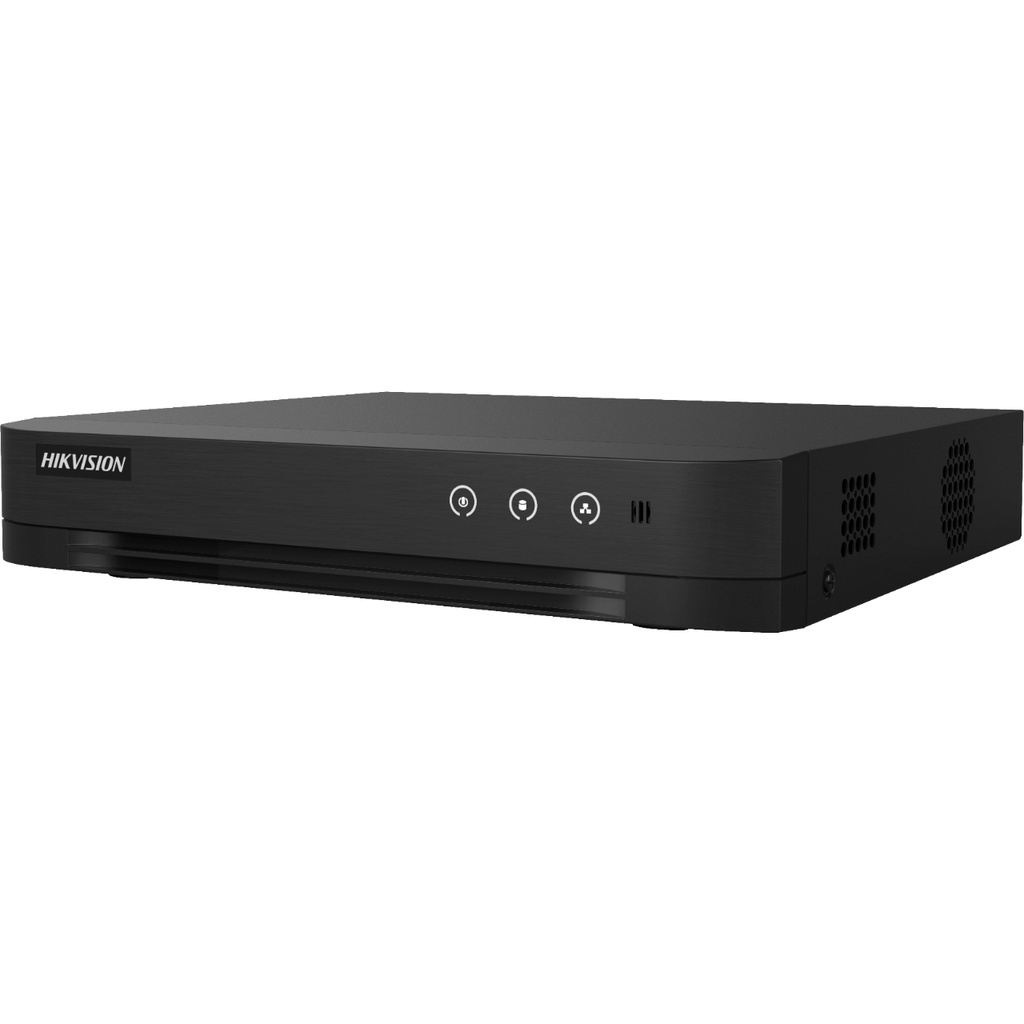

Hikvision iDS-7204HQHI-M1/E 4 Channel 1080p 1U H.265 AcuSense DVR

Detail Hikvision iDS-7204HQHI-M1/E 4 Channel 1080p 1U H.265 AcuSense DVR

SPECIFICATION :

Motion Detection 2.0
Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle AnalysisUp to 2-ch

Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution

When 1080p Lite mode is not enabled:

4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
Frame Rate

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access:

4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

For 3 MP stream access:

3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

For 1080p stream access:

1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N)

For 720p stream access:

720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode is enabled:

4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Video Bitrate32 Kbps to 6 Mbps
Dual-streamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video and Audio
IP Video Input

1-ch (up to 5-ch)

Enhanced IP mode on:

2-ch (up to 6-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

*: The 3 MP signal input is only available for channel 1.
AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS InputSupport
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA simultaneous output
Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback4-ch

Network
Total Bandwidth72 Mbps
Remote Connection32
Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA1 SATA interface
CapacityUp to 10 TB capacity for each disk
Alarm In/OutN/A
USB InterfaceReal panel: 2 × USB 2.0
General
Power Supply12 VDC, 1.5 A
Consumption≤ 8 W (without HDD)
Working T
