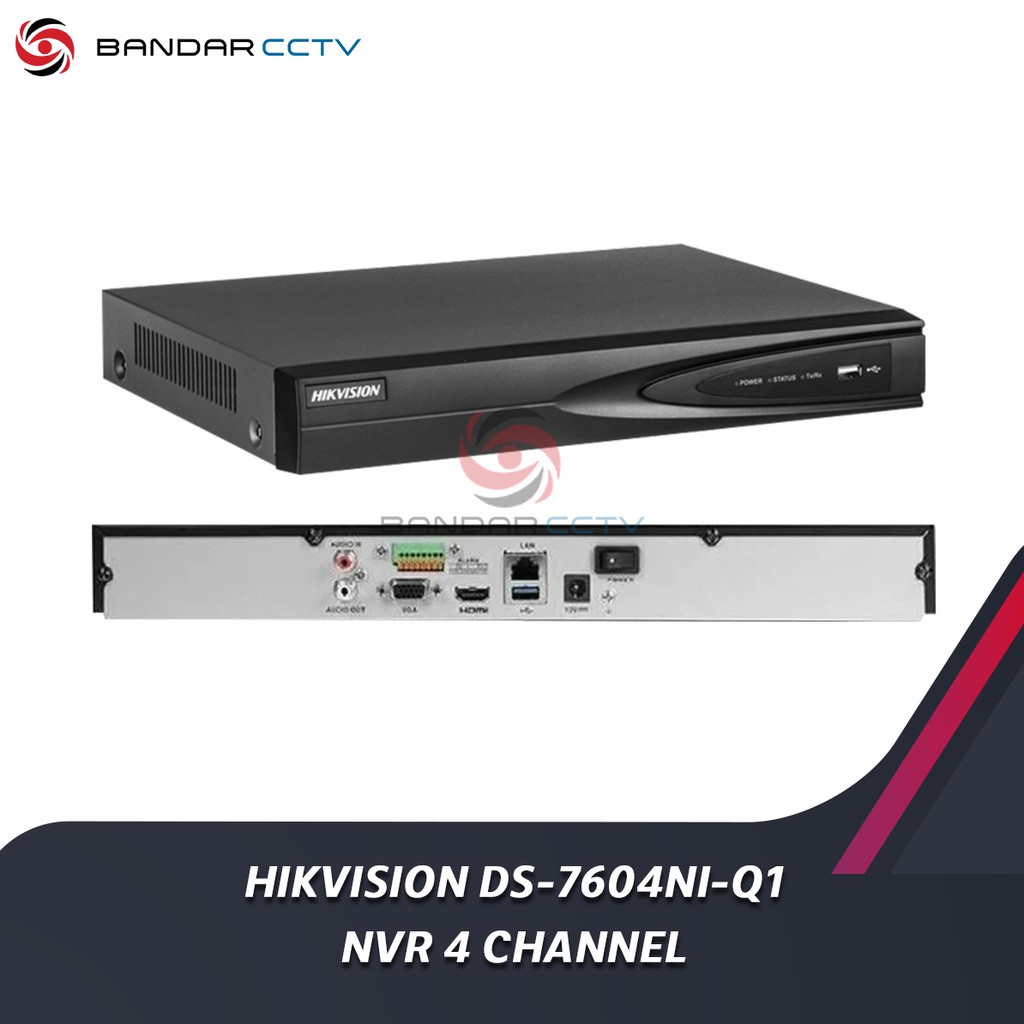

Hikvision DS-7604NI-Q1 NVR 4 Channel

Detail Hikvision DS-7604NI-Q1 NVR 4 Channel

Hikvision DS-7604NI-Q1 NVR 4 Channel
DS-7604NI-Q1
Embedded NVR 4CH

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
• 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
• Support dual-os to ensure high reliablility of system running
• Plug & Play with up to 4 independent PoE network interfaces
• Support various VCA detection alarm and VCA search
• Support H.265/H.264/MPEG4 video formats

SPESIFICATION :

• Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 kO) (using the audio input)
• IP video input : 4Ch
• Incoming bandwidth : 40mbps
• Outgoing bandwidth : 80Mbps
• HDMI Output : 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
• Recording Resolution : 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Audio Output : 1-ch, RCA (Linear, 1kO)
• VGA Output : 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
• Capability : 4-ch/1080P
• Live view / Playback resolution : 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• SATA : 1 SATA interface
• Capacity : Up to 6TB capacity for each HDD
• Network interface : 1, RJ45 10M / 100M Ethernet interface
• USB interface : 2, USB2.0
• Interface : 4 independent 10 /100 Mbps PoE Ethernet interfaces
• Power Supply : 48 VDC
• Consumption : = 10 W
• Working Temperature/Humidity : -10 oC ~ +55 oC (+14 oF~ + 131 oF)
• Chassis : 315 mm chassis
Dimension : 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Garansi Hikvision 2 tahun
