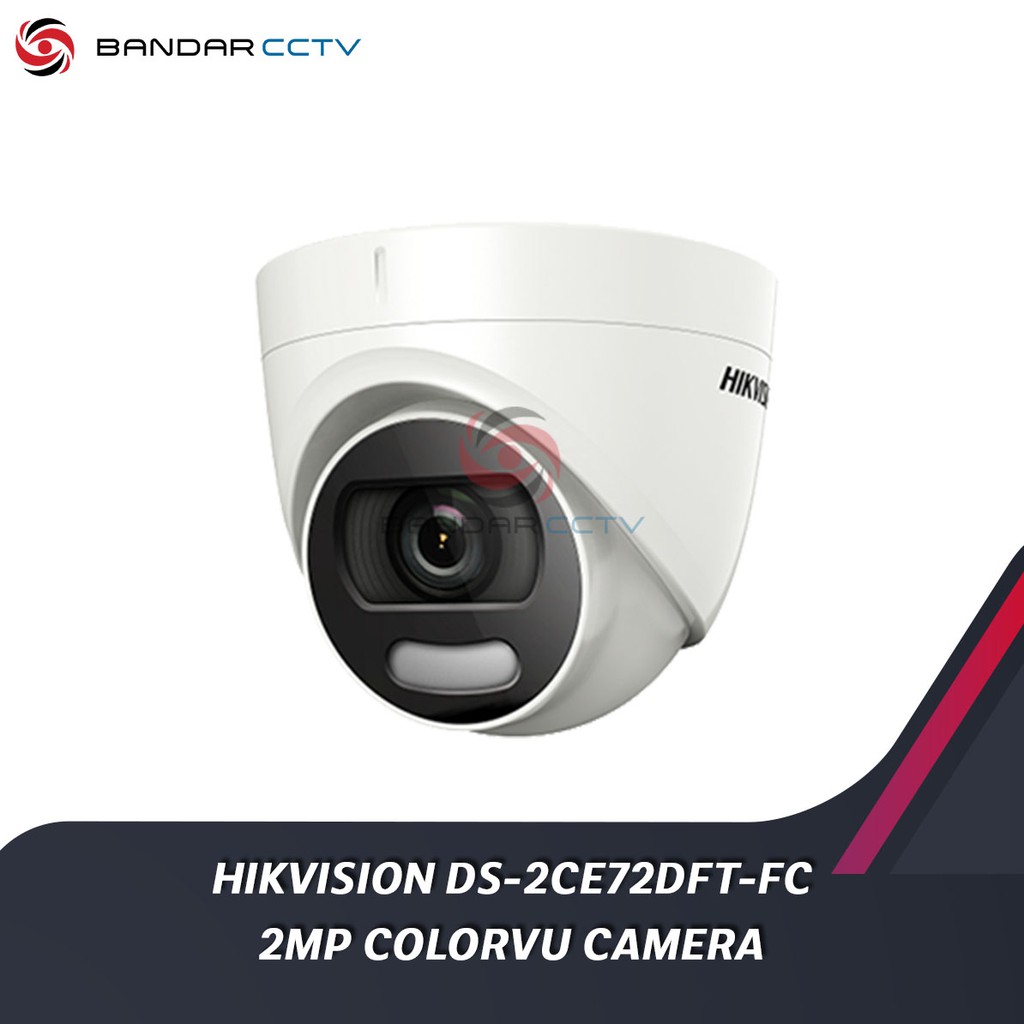

HIKVISION DS-2CE72DFT-FC 2MP COLORVU CAMERA

Detail HIKVISION DS-2CE72DFT-FC 2MP COLORVU CAMERA

Camera
Image Sensor
2 MP CMOS
Signal System
PAL/NTSC
Frame Rate
TVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@30fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC
Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.0008 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens
3.6 mm, 6 mm fixed lens
Horizontal Field Of View
3.6 mm, horizontal FOV: 83.0°, vertical FOV: 44.4°, diagonal FOV: 98.0° 6 mm, horizontal FOV: 51.0°, vertical FOV: 28.5°, diagonal FOV: 58.7°
Lens Mount
M16
Day & Night
Color
WDR (Wide Dynamic Range)
≥120 dB
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
White Light
AUTO/OFF
Image Mode
STD/HIGH-SAT
AGC
Support
White Balance
ATW/MANUAL
HLC
Yes
BLC (Backlight Compensation)
Yes
Language
English
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Operating Condition
-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Power Supply
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption
Max. 3 W
Protection Level
IP67
Material
Enclosure: Plastic Main Body: Metal
IR Range
Up to 20 m
Communication
HIKVISION-C
Dimensions
Φ 109.82 mm × 85.56 mm (Φ 4.32" × 3.37")
Weight
Approx. 336 g (0.74 lb.)

GARANSI RESMI HIKVISION

Gambar produk
