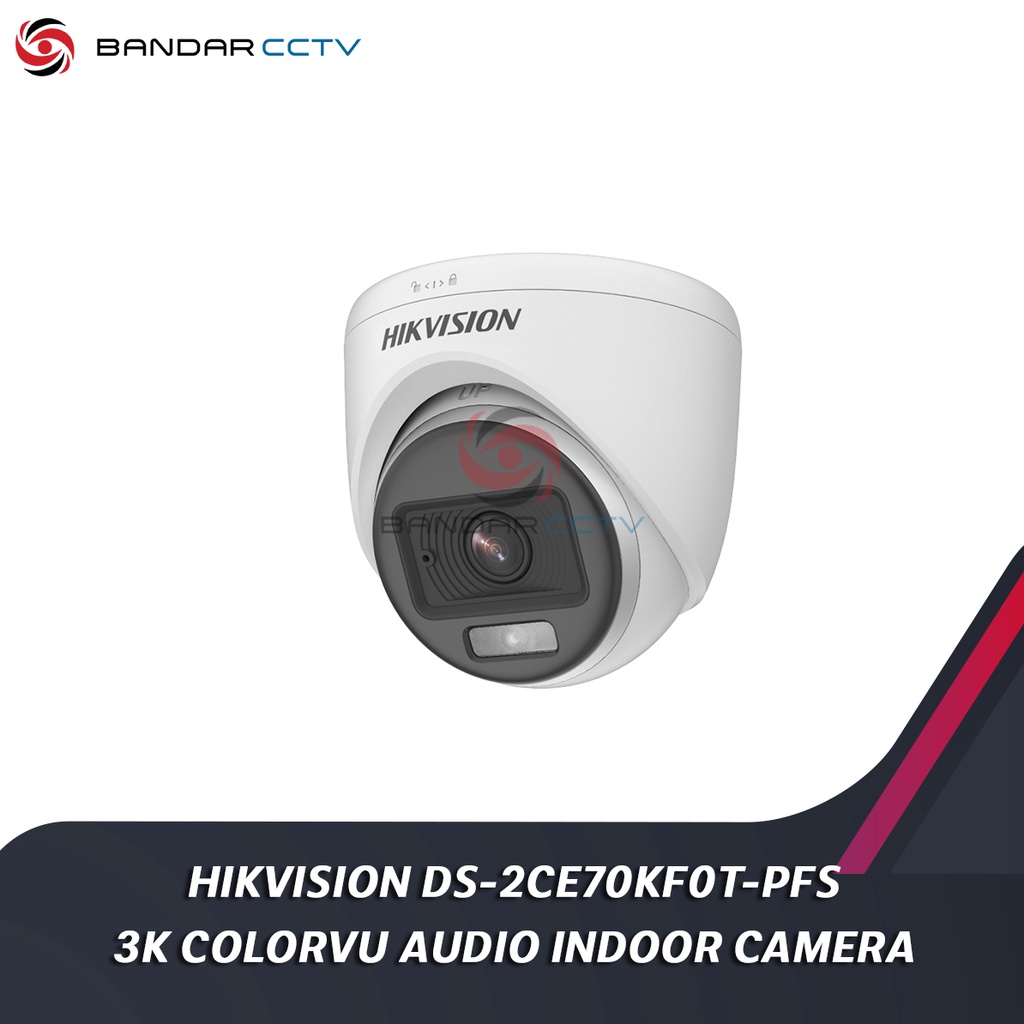

Hikvision DS 2CE70KF0T PFS 3K ColorVu Audio Fixed Turret Indoor Camera

Detail Hikvision DS 2CE70KF0T PFS 3K ColorVu Audio Fixed Turret Indoor Camera

3K ColorVu Indoor Audio Fixed Turret Camera
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- High quality audio with audio over coaxial cable, built-in mic

Camera

Image Sensor
3K CMOS
Signal System
PAL/NTSC
Resolution
2960 (H) × 1665 (V)
Frame Rate
TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps
AHD: 5 MP@20fps, 4 MP@25fps/30fps
CVI: 4 MP@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens
2.8 mm, 3.6 mm fixed focal lens
Field Of View
2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
Lens Mount
M12
Light Alarm
Solid Light Alarm (White Light)
Day & Night
24/7 Color Imaging
WDR (Wide Dynamic Range)
Digital WDR
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°


White Light
Auto/Off
Image Mode
STD/HIGH-SAT/HIGHLIGHT
AGC
Yes
Day/Night Mode
Color
White Balance
Auto/Outdoor/Global/Manual
AE (Auto Exposure) Mode
BLC;HLC;Global;HLS;DWDR
Noise Reduction
2D DNR
Language
English
Function
Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light

Interface

Video Output
Switchable TVI/AHD/CVI/CVBS
Audio In
Built-in mic

General

Operating Conditions
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%,

*You are recommended to use one power adapter to supply the power for one camera.

Consumption
Max. 2.5 W
Material
Plastic
White Light Range
Up to 20 m
Communication
HIKVISION-C
Dimension
Φ 85.02 mm × 81.25 mm (Φ 3.35" × 3.2")
Approx. 165.5 g (0.36 lb.)
