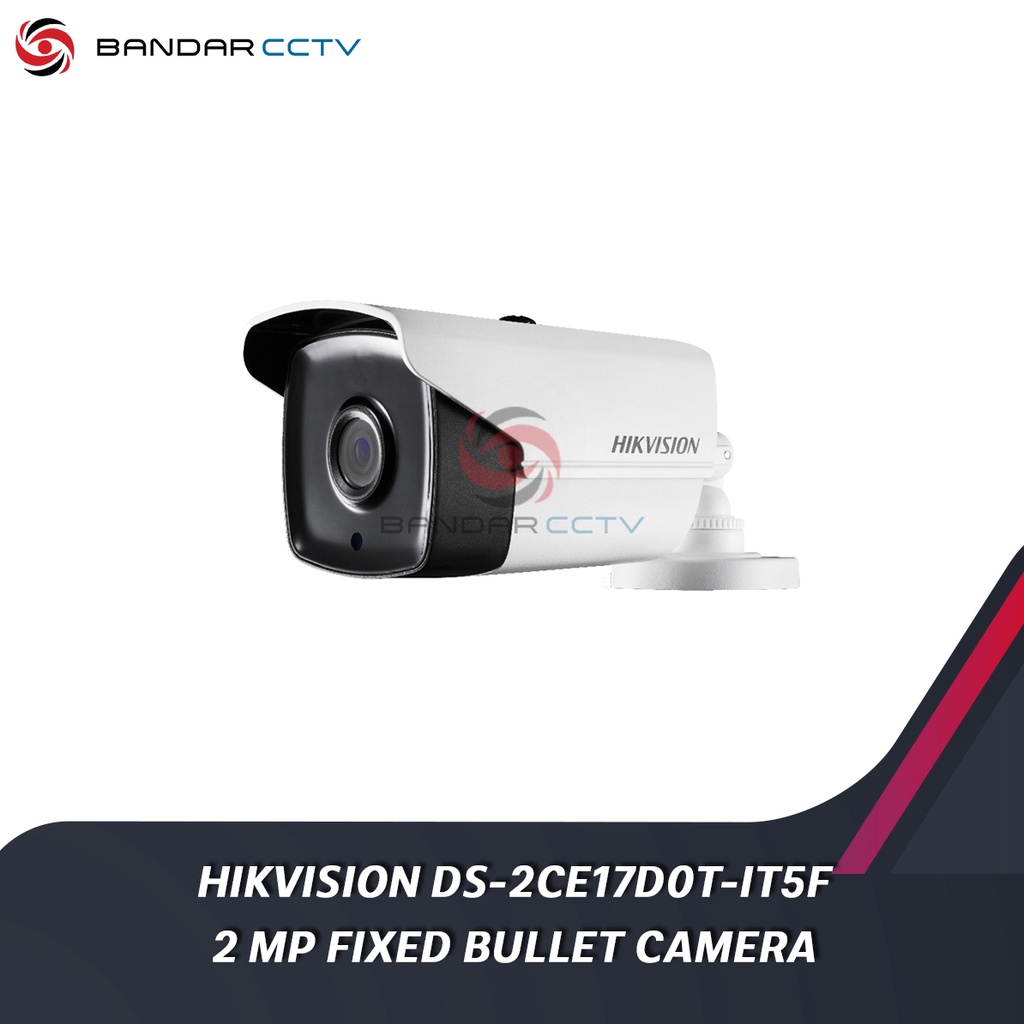

Hikvision DS 2CE17D0T IT5F 2 MP Fixed Bullet Outdoor Camera

Detail Hikvision DS 2CE17D0T IT5F 2 MP Fixed Bullet Outdoor Camera

2 MP Fixed Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
- Up to 80 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)

Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s

NTSC: 1/30 s to 1/50,000 s

Day & Night
ICR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOV
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°

12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1°

Lens Mount
M12
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
DWDR/BLC/HLC/Global
Noise Reduction
Yes
White Balance
Auto/Manual
AGC
Yes
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Front Cover: Metal

Main Body: Plastic

Dimension
78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
Approx. 320 g (0.71 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ± 25%
Consumption
Max. 4.7 W
IR Range
Up to 80 m
Approval
Protection
IP67
