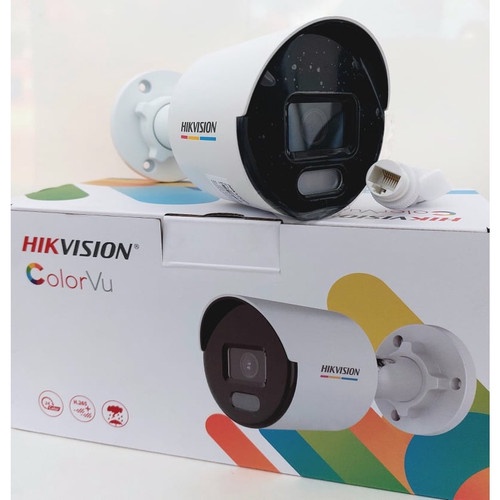

Hikvision DS-2CD1027G0-LUF IP Camera CCTV Colorvu 2MP

Detail Hikvision DS-2CD1027G0-LUF IP Camera CCTV Colorvu 2MP

DS-2CD1027G0-L(UF) IPCamera Colorvu + Audio
Built-in memory card slot, support microSD card, up to 256 GB

Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Wide Dynamic Range Digital WDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 105.2°, vertical FOV 56.5°, diagonal FOV 125.1°
4 mm, horizontal FOV 83.6°, vertical FOV 46.2°, diagonal FOV 97.5°
Lens Mount M12
Focus Fixed
Aperture F1.0
DORI
DORI
2.8 mm, D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m
4 mm, D: 53.4 m, O: 21.2 m, R: 10.7 m, I: 5.3 m
Illuminator
Smart Supplement Light Yes
White Light Range Up to 30 m
Video
Max. Resolution 1920 × 1080
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Compression -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
-UF: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160
Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate -UF: 8 kHz/16 kHz
Environment Noise Filtering -UF: Yes
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone -UF: Yes
Hardware Reset -UF: Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply
12 VDC ± 25%
PoE: 802.3af
