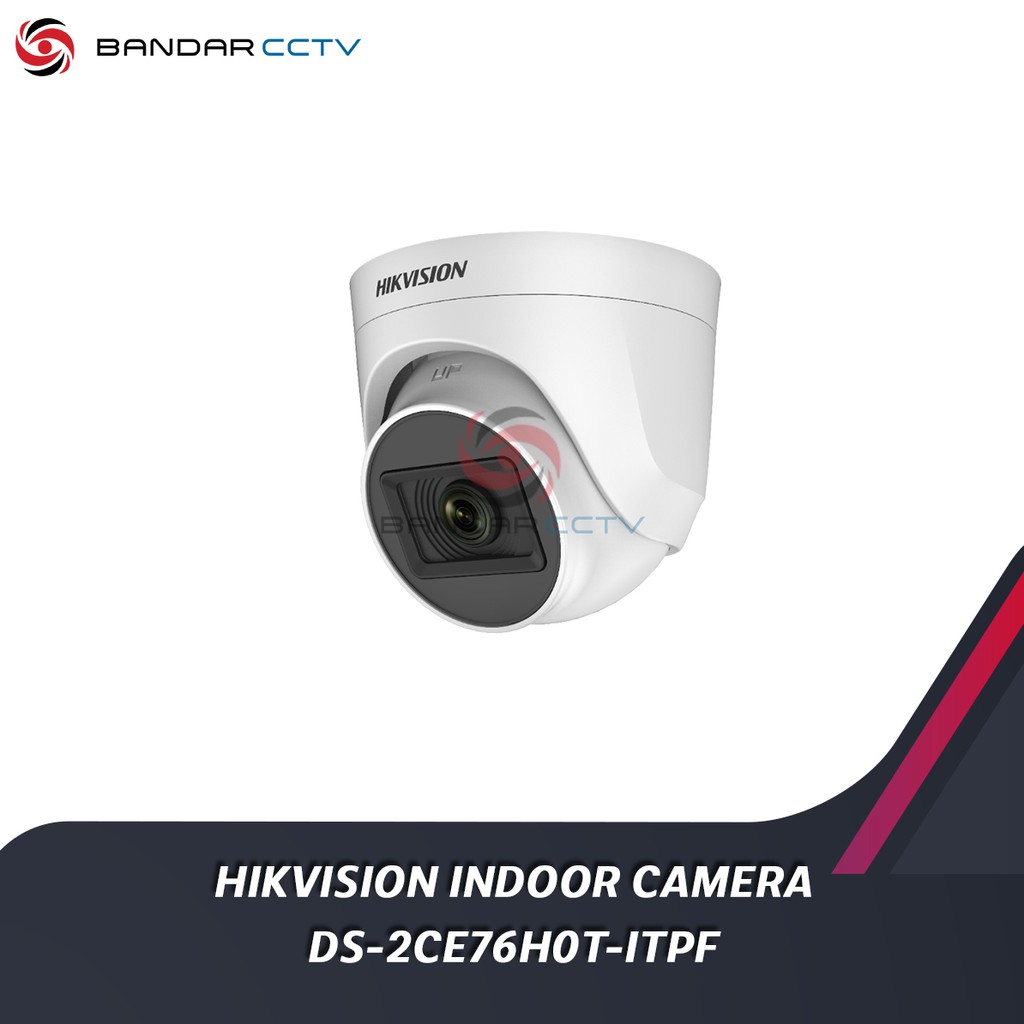

Hikvision 5MP Indoor Camera DS 2CE76H0T ITPF

Detail Hikvision 5MP Indoor Camera DS 2CE76H0T ITPF

GARANSI RESMI HIKVISION

Camera
Image Sensor
5 MP CMOS image sensor
Max. Resolution
2560 (H) × 1944 (V)
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night
ICR
Angle Adjustment
Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°

2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

Lens Mount
M12
Image Parameters Switch
STD/HIGH-SAT
Image Settings
Brightness, Sharpness, DNR, Mirror, Smart IR
Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
Digital WDR
Image Enhancement
BLC, HLC
White Balance
ATW/MANUAL
AGC
Support
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Plastic
Dimension
Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Approx. 143 g (0.32 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication
HIKVISION-C
Language
English
Power Supply
12 VDC ±25%
Consumption
Max. 4.3 W

IR Range
Up to 20 m

Gambar produk
