High Voltage Pulse Generator Inverter Module Transformer Pulse

Detail High Voltage Pulse Generator Inverter Module Transformer Pulse

***Deskripsi 1000KV
Input voltage: DC 3,7V-7.4V
Input current: 1-2A
Output current: 500ma
High voltage pulse type: high and low pressure integral
Output voltage: about 50-100 million volts (please note security when using the it )
High voltage bipolar discharging distance: 10-20mm
The output high voltage line length: About 100mm
The input power line length: About 100mm (red for positive)
Size: 88*25mm

** Deskripsi 50KV
Size : Length:64mm Diameter:24mm
Input Voltage:DC 3.7-6V
Input Current:2A-3A
Input Wire Length:10cm
High Voltage Form:pulse DC type
Output Voltage:50kV
Output Current:0.05A
Output Wire Length:8cm
High Voltage Polarization Discharging Distance:1-2cm

** Deskripsi 400KV
Description:
1. Volume: 56x24mm
2. Input voltage: 3.7V-6V
3. Input current: 4A
4. Input line length: about 2 cm
5. High voltage type: pulse DC type
6. Output voltage: about 400KV (please pay attention to safety when using)
7. High-voltage pole discharge distance: 1.5cm-2cm
8. Output Cuurent : 0.5A

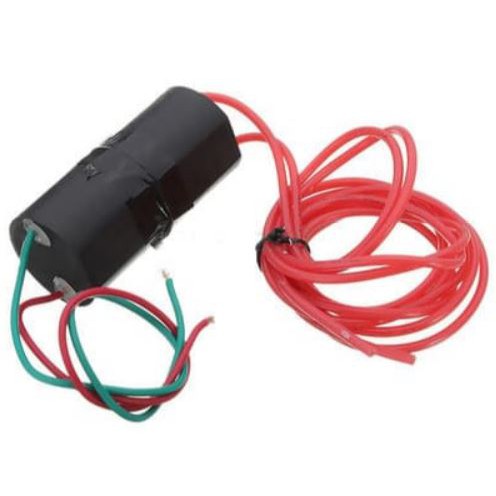

***Deskripsi 500KV
Input voltage: 6V-12V
Input current: 0.5A-1A
Input line length: about 23 cm
High voltage type: pulse DC type
Output voltage: about 500KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output line length: about 48 cm
High-voltage two-pole discharge distance: 1.5 cm - 2 cm
Baby features: universal high voltage package, input does not need to be divided into positive and negative.
About input power: NiCd/NiMH battery pack, 6V or 12V lead-acid battery, etc. (using 12V battery for best results)
SIZE: length 70mmX diameter 32mm

*** Deskripsi 20000V
Input voltage: DC 12V
Output voltage: 20000V not adjustable
Rated power: 5W
Mounting hole diameter: 5mm
Hole center distance: 112mm
Size: 60 * 70 * 30mm
Note: The red and black wires are small inputs, the red is the 12V power supply positive input, the black is the negative input, the thick red wire i

Gambar produk
