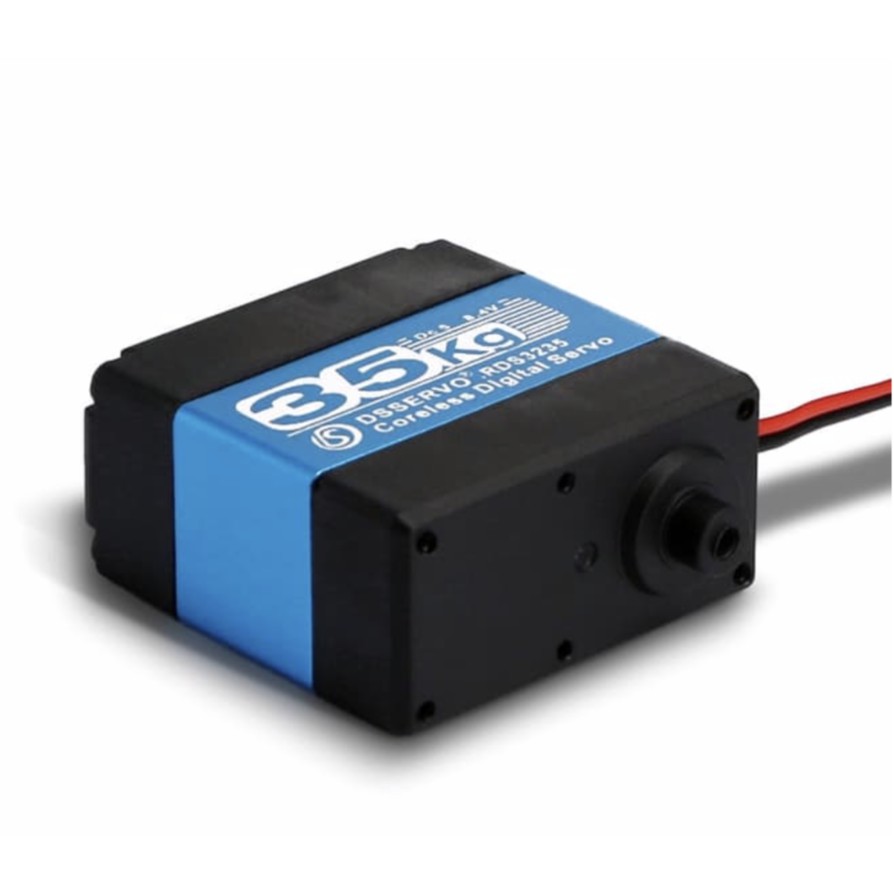

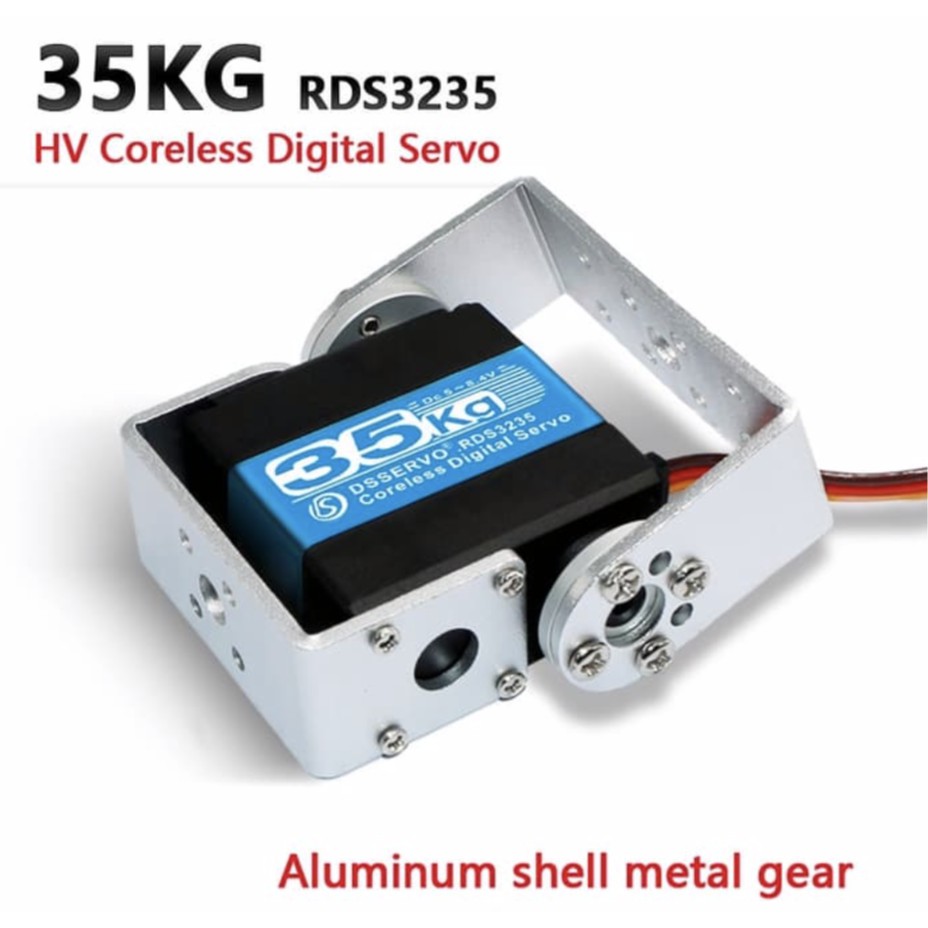

Detail High torque servo 35kg RDS3235 35 kg RDS 3235 RDS3235MG MG Arm Robot
SPECIFICATIONS :
Size : 40*20*40 (servo)

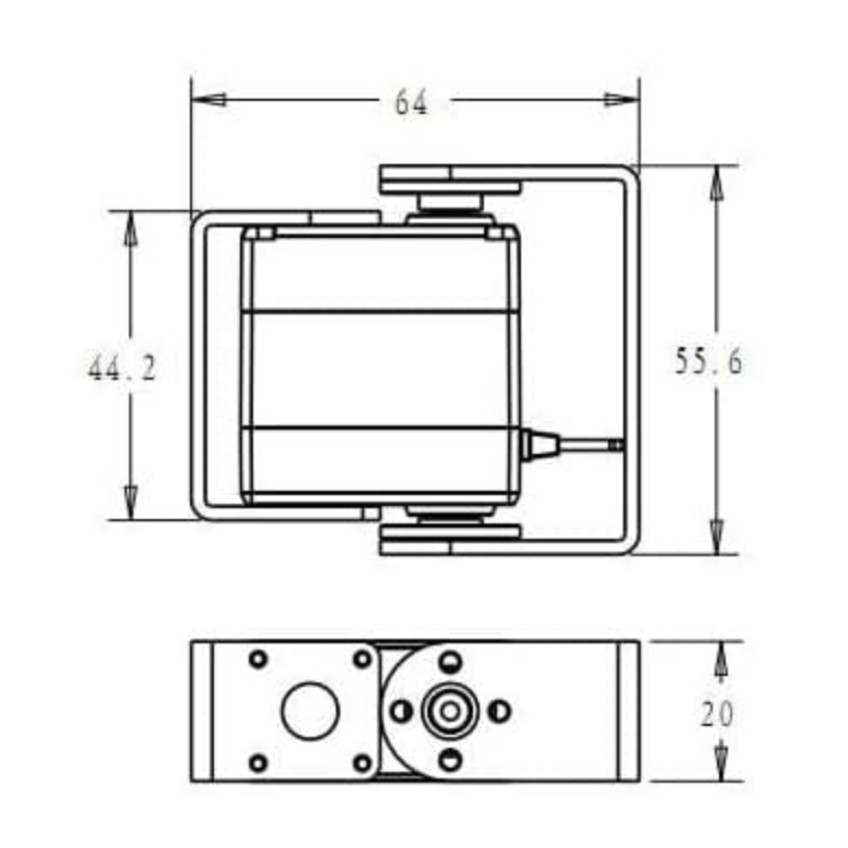

64*55.6*20 (Assembly the metal brackets size)
Weight : 60g
Wire length : 320mm
Speed : 0.13sec/60 degree at(5v)
0.12sec/60 degree at(6v)
0.11sec/60 degree at(7.4v)
Torque : 29kg.cm.at (5v)
32kg.cm.at (6v)
35kg.cm.at (7.4v)
Voltage : 5v-7.4v
Dead Zoon setting : 2 Microseconds ( RDS3235 )
3 Microseconds ( RDS3135 )
Features:
- Durable Metal Gear
- Dual Ball Bearing
- Programmable Digital Amplifier with Mosft Drive
- Bottom Side Axial Mount Hole
- Original factory product
- Less Noise
-Contains: Long Holder Aluminum & Short Holder Aluminum & Circle Holder-25T & Circle Holder -Orientation Angle : maximum 180 deg
-Mechanical Angle : 270 deg
(Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)
