High Power DC DC Step Up 10-60V to 12-80V Boost Converter I 1200W 20A

Detail High Power DC DC Step Up 10-60V to 12-80V Boost Converter I 1200W 20A

PSU-0122

Deskripsi:

Modul Step Up DC untuk menaikkan tegangan
Power: 1200watt
Input: 10-60v DC
Output: 12-80v DC
Arus: max 20A


**Aplikasi:
1. Universal power supply utk laptop dan peralatan elektronik lain dalam mobil
2. Mengecas aki 12v dan 24v
3. Menghidupkan peralatan elektronik yang bertegangan tinggi (12-80V DC) dan
rakus daya
4. Power driver untuk LED sampai 1200watt
5. Mengubah tegangan panel surya 12v menjadi tegangan yang lebih tinggi


**Spesifikasi:
Module Properties: non-isolated step-up module (BOOST)

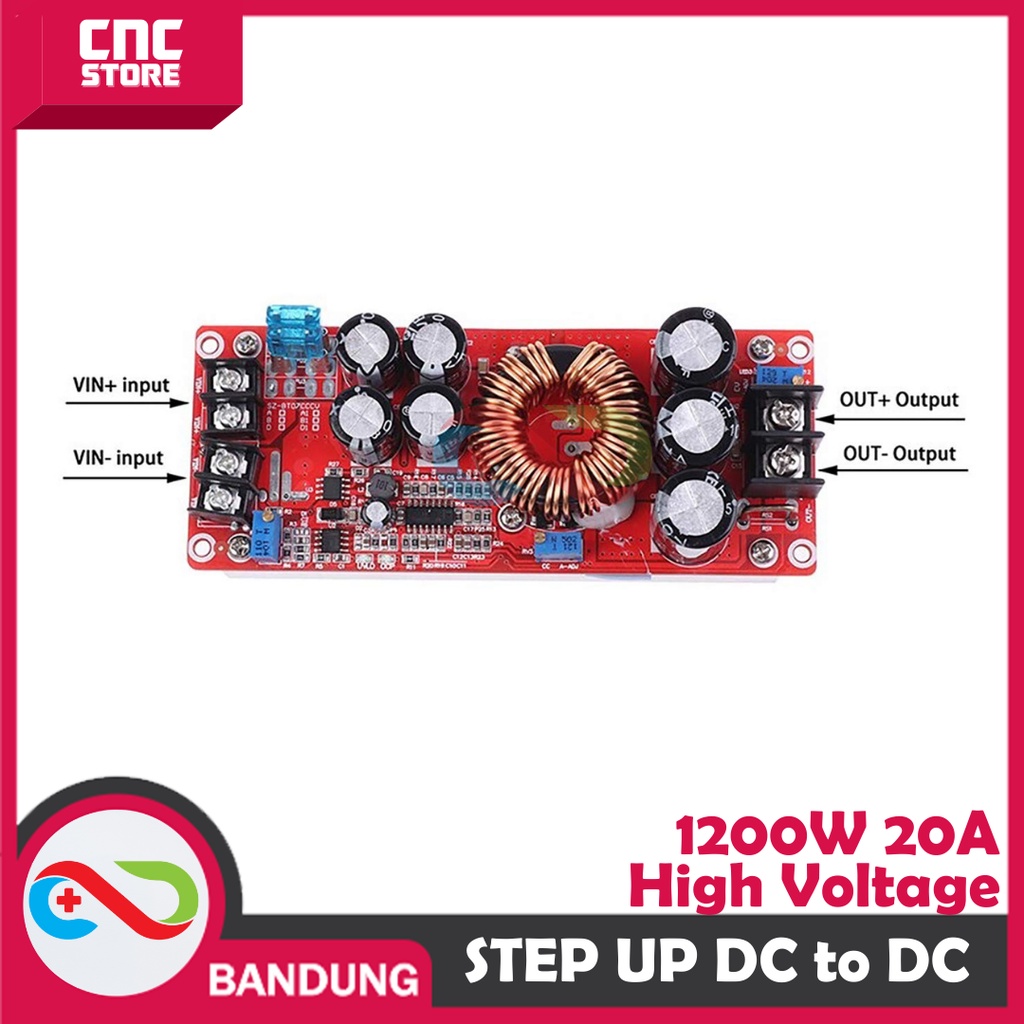

Wiring: solderless terminal
Input voltage: DC 10-60V (direct input 10-60V without jumper cap selection
voltage)
Output voltage: 12-80V continuously adjustable
Input current: 20A (MAX) more than 10A please strengthen the heat dissipation
Output current: 18A (MAX) more than 10A please strengthen the heat dissipation
Conversion efficiency: 92% ~ 97%
Working frequency: 150KHz
Output ripple: 2% (MAX)
Working temperature: -40 ~ +85 C

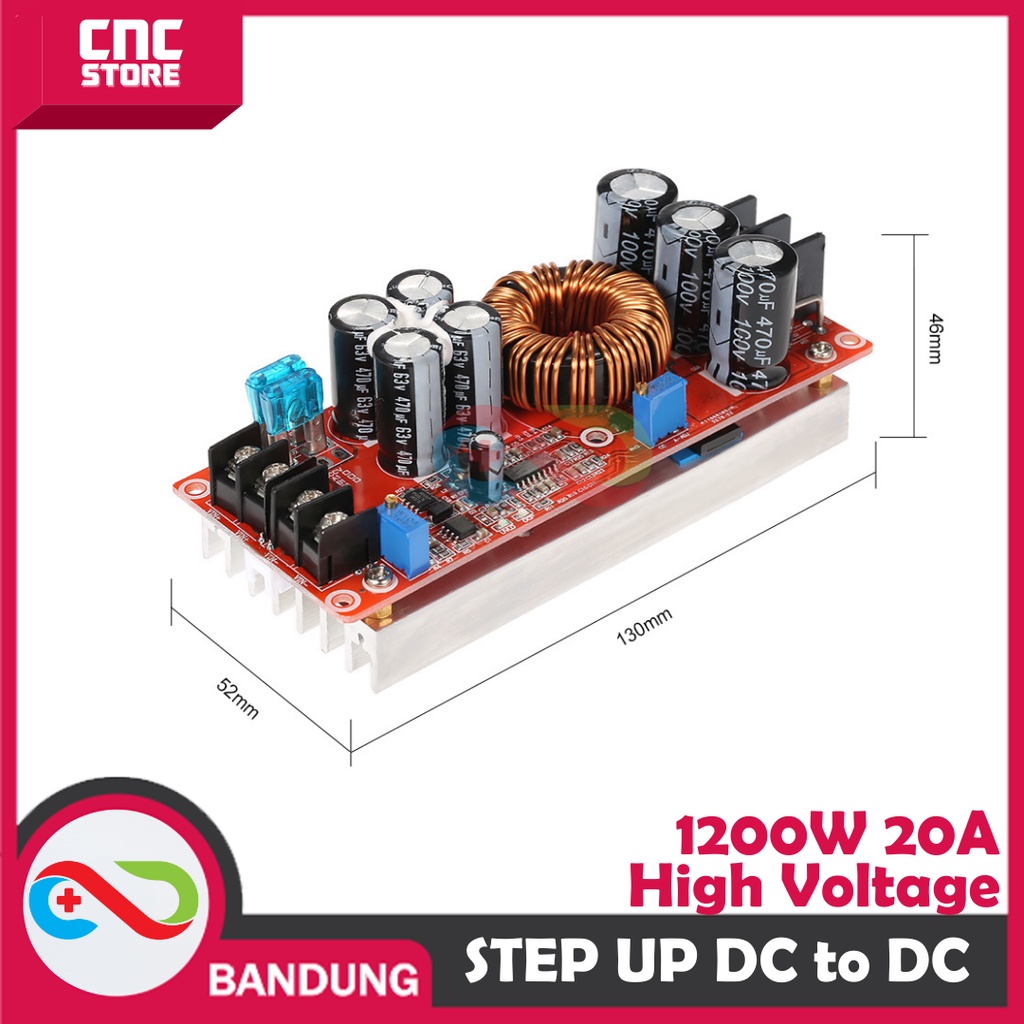

Dimension: 130x52x53mm


**Fitur proteksi:
Short circuit protection: Yes (fuse 30A)
Input Reverse protection: Yes (150A power MOS)

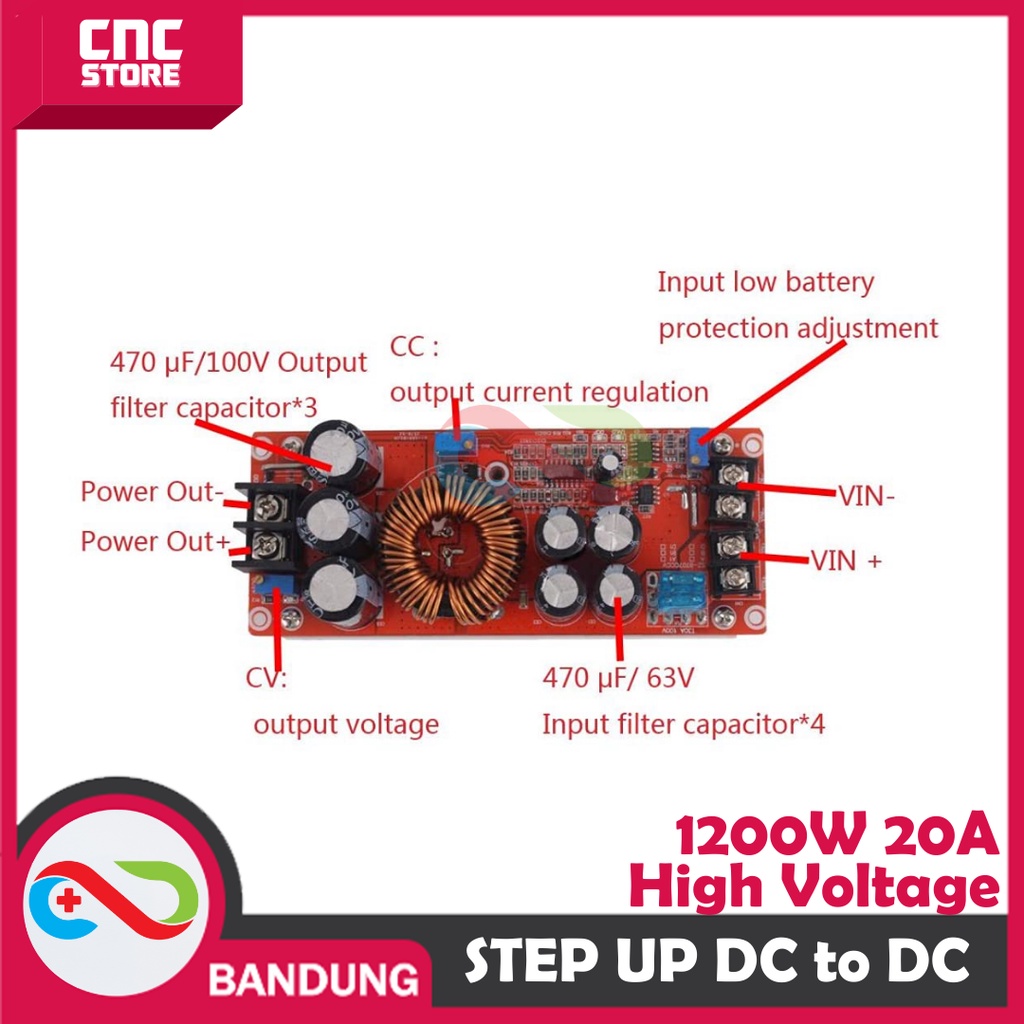

**Dilengkapi 3 potensio pengaturan:
1. Voltage Regulation (CV)
2. Current Regulation (CC)
3. Input low battery protection adjustment (RV1)

Paket:
===============
1 x High Power DC DC Step Up 10-60V to 12-80V Boost Converter I 1200W 20A

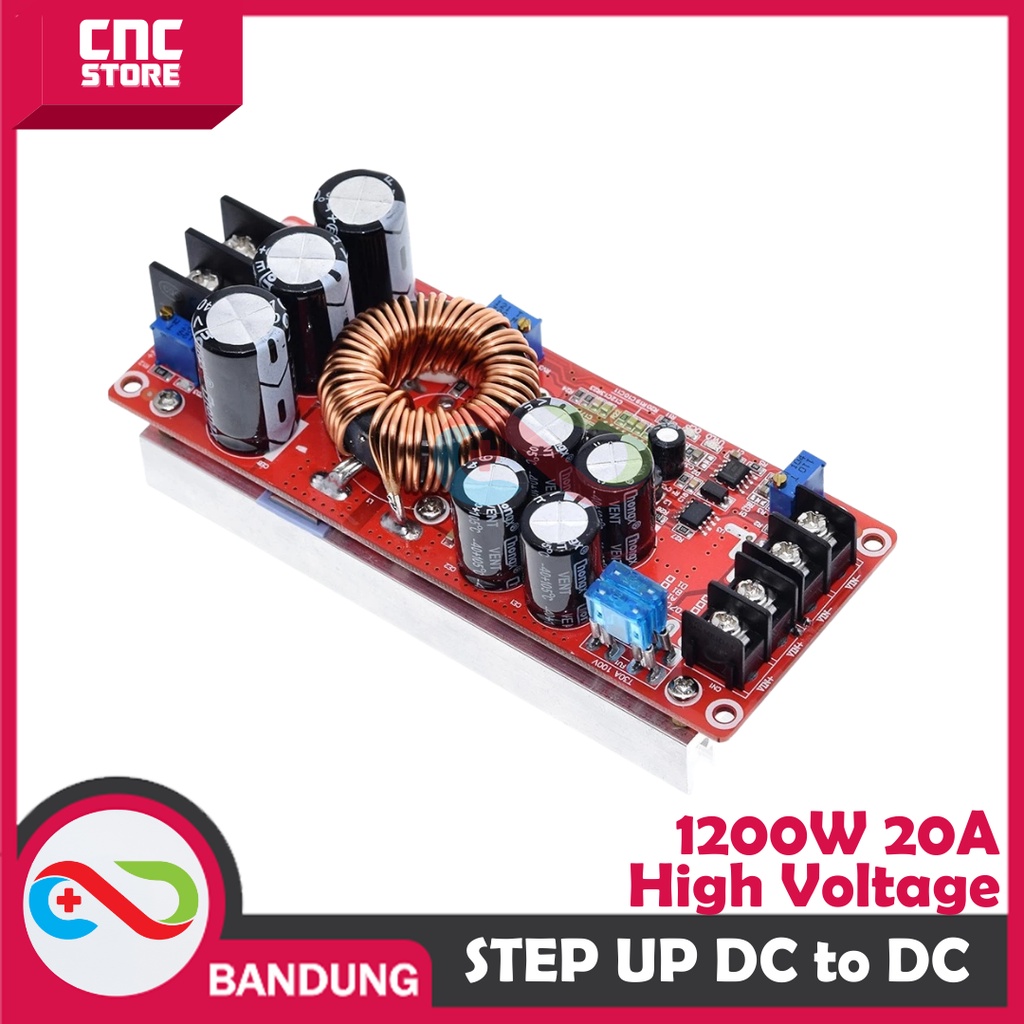

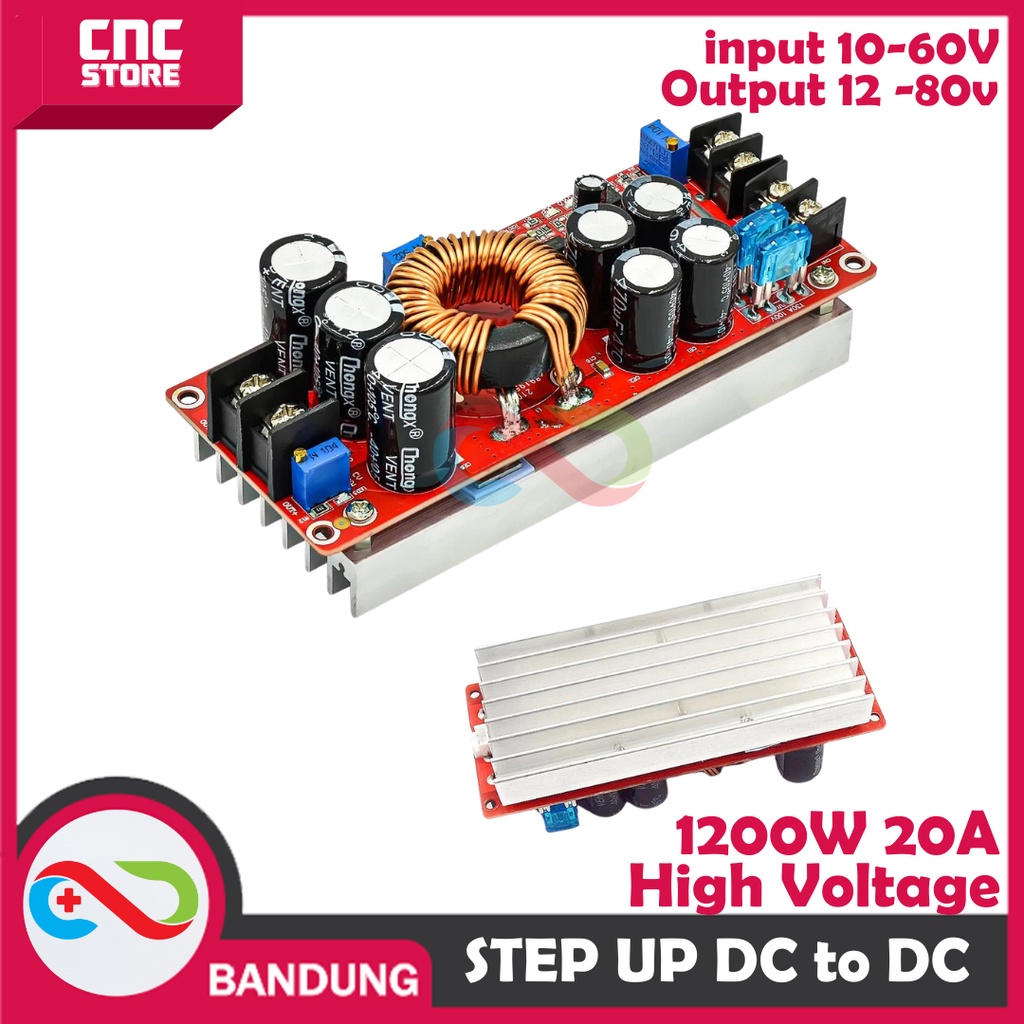

Gambar produk
