High power boost DC-DC 1200W solar charging 12-80V (D195)

Detail High power boost DC-DC 1200W solar charging 12-80V (D195)

Power Supply DC-DC 1200W solar charging 12-80V (1200)

Module parameters:

* Module name: 1200W boost constant current module
* Module nature: non-isolated boost module (BOOST)
* Input voltage: 8-36V
*Input current: 20A (real 20A input, many sellers on Taobao almost have false standards, one inductor, one MOS power tube can reach 20A, I don’t believe it if it is killed)
*Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the static current will increase)
*Output voltage: 13-80V continuously adjustable
13-80V adjustable
*Output current: 20A MAX Please strengthen heat dissipation if it exceeds 10A (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)
*Constant current range: maximum 20A
* Input power: = input voltage*20A, such as: input 12V*20A=240W, input 24V*20A=480W, input 36V*10A=720W,
If you need more power, you can use two modules in parallel. For example, if the output is 30A, you can use two modules in parallel and adjust the current of each module to 15A.
Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)
* Working frequency: 150KHz

Module size: length 85mm width 63mm height 64mm

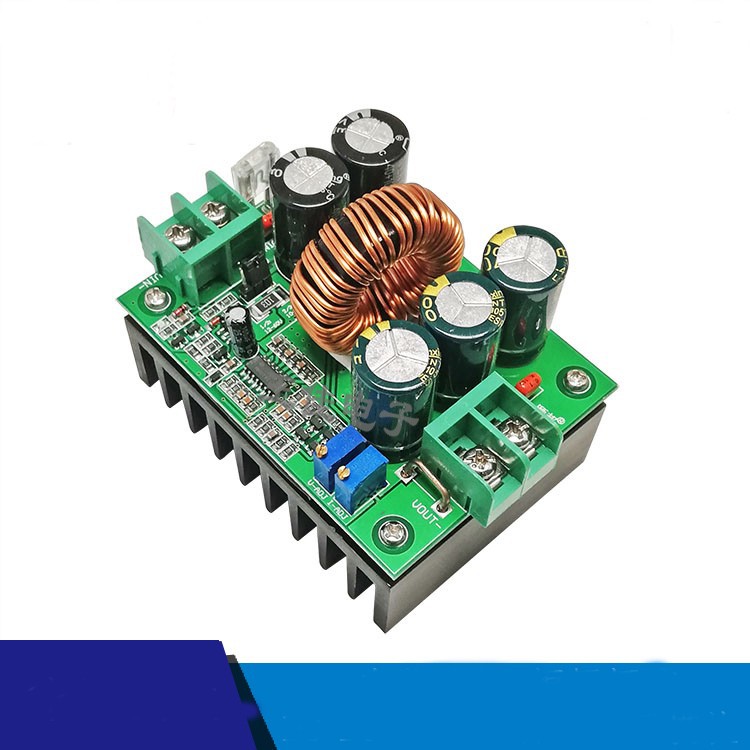

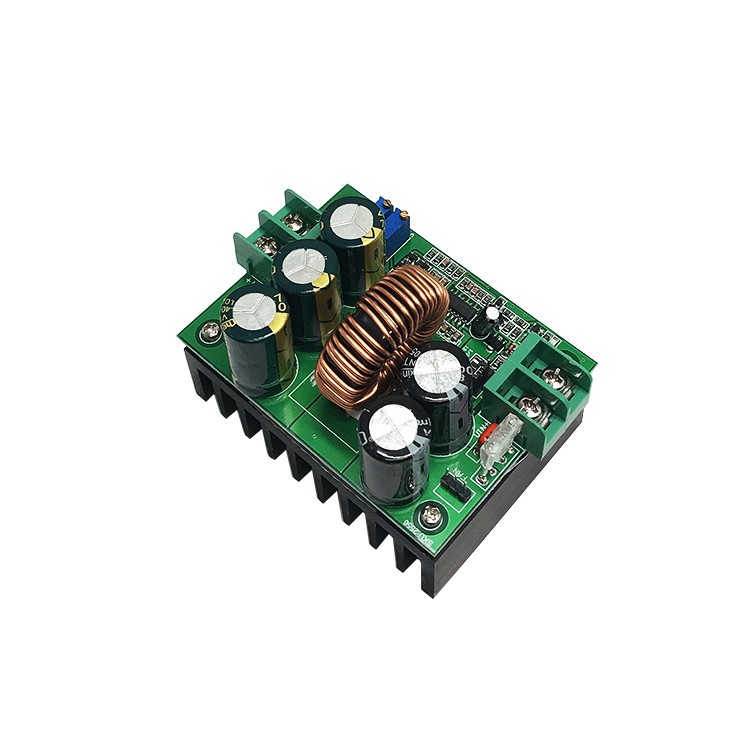

Gambar produk
