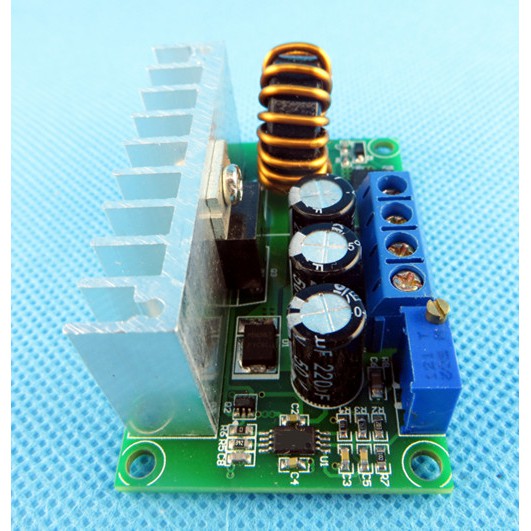

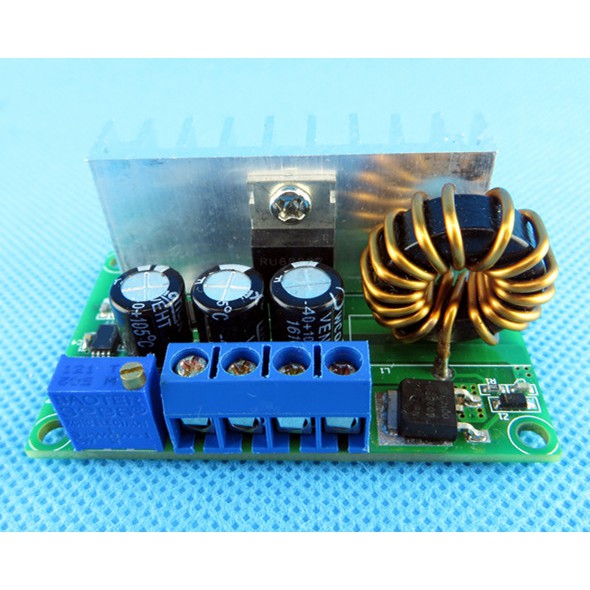

Detail High efficiency DC-DC adjustable boost power supply (533)

Parameter :

Input voltage range: 10V (load current hour) ~ 30V

Input current range: input current can reach 6A (peak current can reach 7A)

Output voltage range: 12V~35V (adjustable output mode)

No-load current: ≤12mA

Output current range: up to 5A (more than 5A when the boost ratio is small)

Conversion efficiency: ≤89% (depending on the input and output pressure difference)

Operating temperature range: -10~85 ℃

Dimensions: length 56.5mm X width 35mm X height 24mm

Gambar produk

High efficiency DC-DC adjustable boost power supply (533)
High efficiency DC-DC adjustable boost power supply (533)
High efficiency DC-DC adjustable boost power supply (533)
High efficiency DC-DC adjustable boost power supply (533)
High efficiency DC-DC adjustable boost power supply (533)
High efficiency DC-DC adjustable boost power supply (533)
