HiFi SQ Digital Power Amplifier Mobil Class D 60W 2.1 Stereo Subwoofer

Detail HiFi SQ Digital Power Amplifier Mobil Class D 60W 2.1 Stereo Subwoofer

Sebelum bertransaksi mohon diperhatikan Catatan Toko sebagai kesepakatan jual beli di Toko ini, karena pelanggan yang telah bertransaksi berarti menyetujui Catatan Toko tersebut.

Untuk informasi harga grosir termurah silahkan chat admin kami.

- KUALITAS Suara HIFI Class-D 2.1
- Bass Subwoofer Mantap
- Tanpa "Jedug" power ON
- Tested 100%

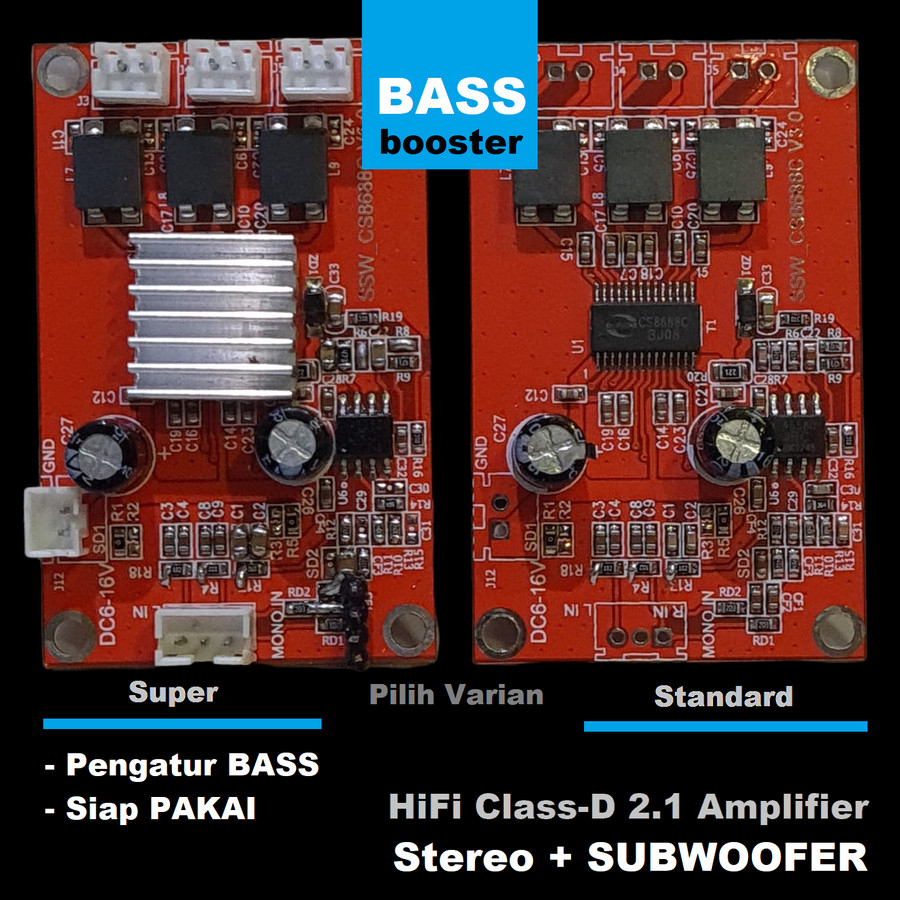

Ada 2 varian :

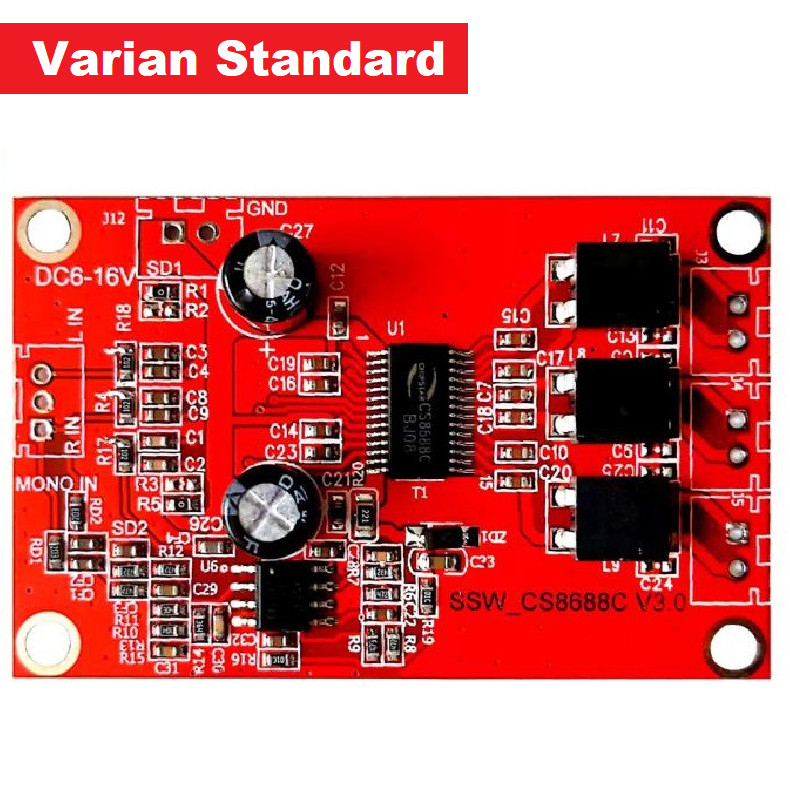

1. Standard

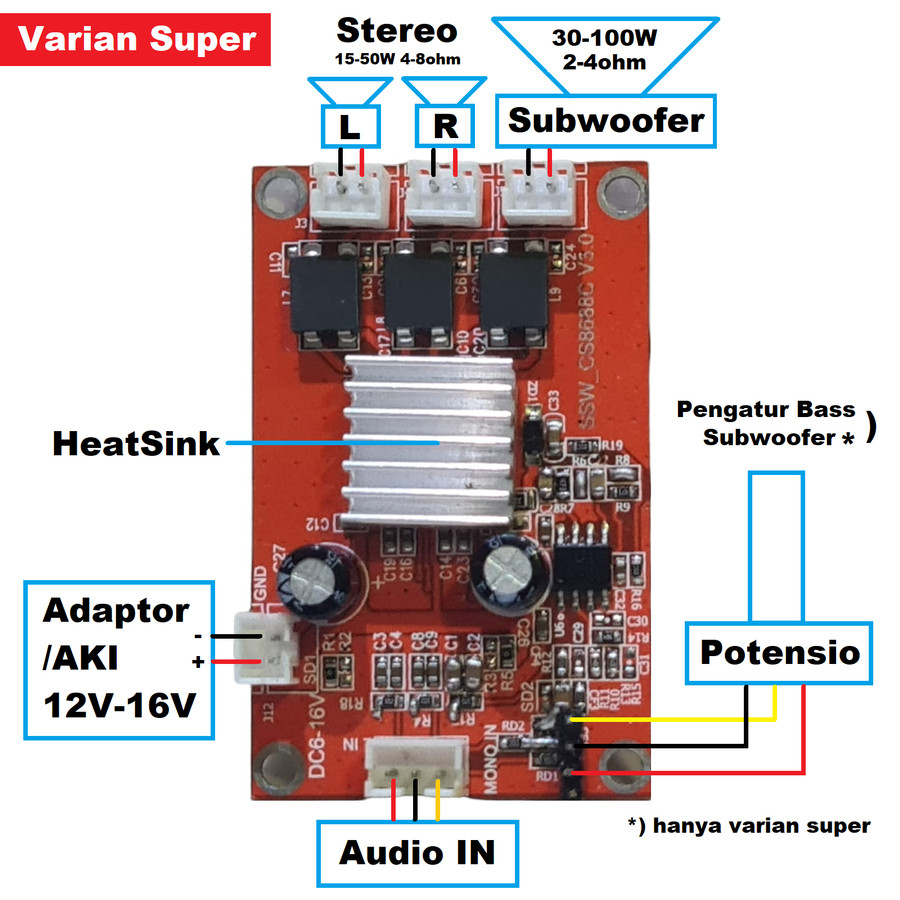

2. Super : modifikasi varian standard dengan beberapa kelebihan :
- Suara subwoofer, bass nya lebih dalam, empuk dan minim suara vokal
- Potensio pengatur level suara subwoofer

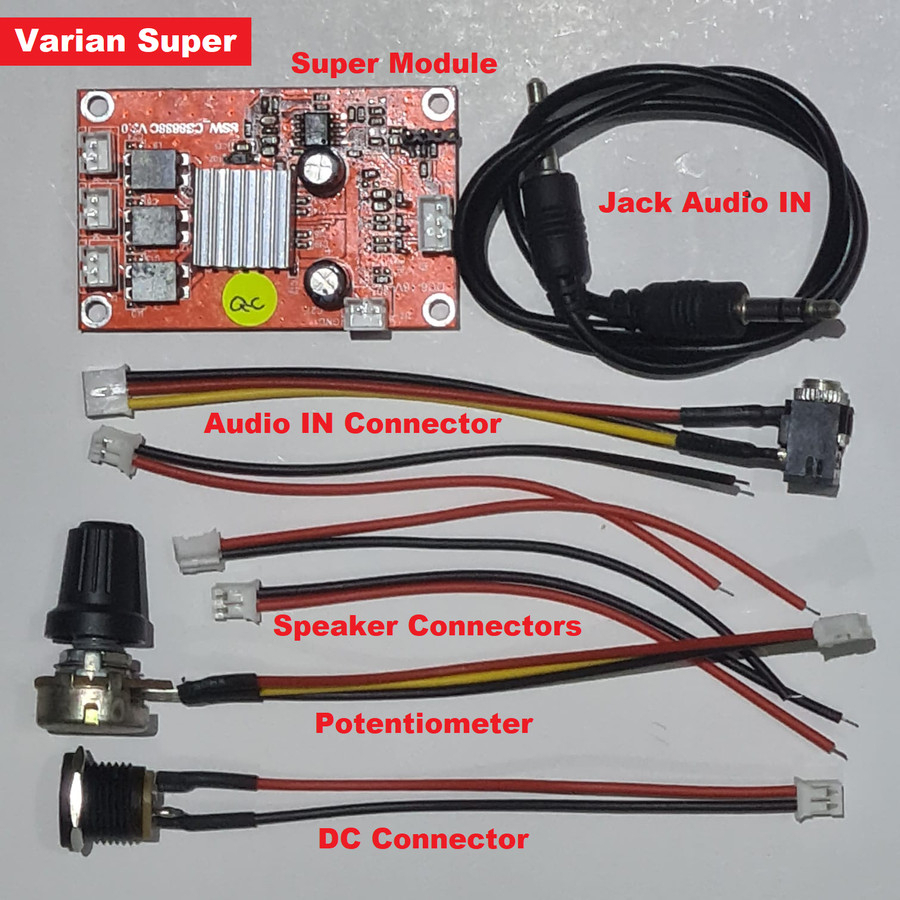

- Siap pakai, dengan kabel dan konektor untuk speaker, adaptor dan audio input
- Tambahan Heatsink agar IC tetap dingin

Using IC CS8688C, 2.1-channel high-efficiency class D audio power amplifier. Advanced EMI suppression technology can meet EMC requirements, and has an efficiency of up to 90%, without the need for additional heat sinks.
Built-in overcurrent protection, short circuit protection, and overheating protection
The protection function effectively protects the chip from being damaged under abnormal working conditions.
Specifications
1. Output power:
PO at 10%THD+N,VDD=16V,RL=2*8Q +4Q 2*16W+30W
PO at 10%THD+N,VDD=14V,RL=2*8Q +4. Q 2*12.5W+24W
PO at 10%THD +N,VDD=12V,RL=2*8. Q +4Q 2*9.5W+10W
2. Very Cool , Efficiency is as high as 90%
3. Large power supply voltage range: 6.5-18.5V
4. Filter-free function
5. Good short circuit protection and temperature protection with automatic recovery function
6. Good distortion and anti-noise functions
7. Built-in 20 times gain

Gambar produk
