Detail Hifi Pre Amp tone control Subwoofer (2028)

Hifi Pre Amp tone control Subwoofer (2028)

The main parameters
Power supply voltage: DC10-24V single power supply direct current
Frequency range: 22Hz-300Hz
Audio input: single channel or dual channel
Audio output: mono

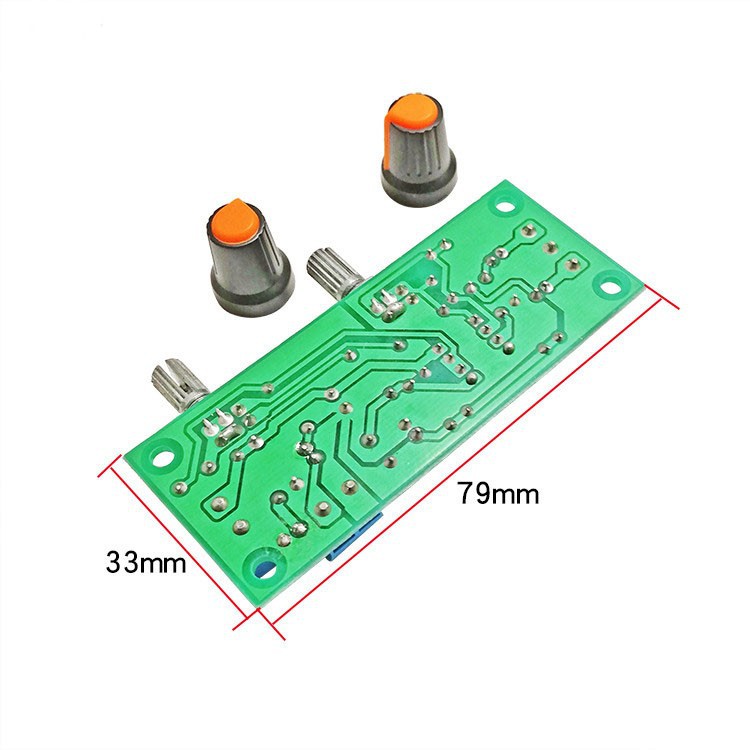

PCB specification: 78x32mm, thickness: 1.6mm
PCB material: ultra-hard FR-4 glass fiber board
Net weight of finished board: 30g
Center spacing of plate fixing holes: 70x24mm, hole diameter: 3.2mm
Center distance between potentiometer axis: 32.5mm

Gambar produk

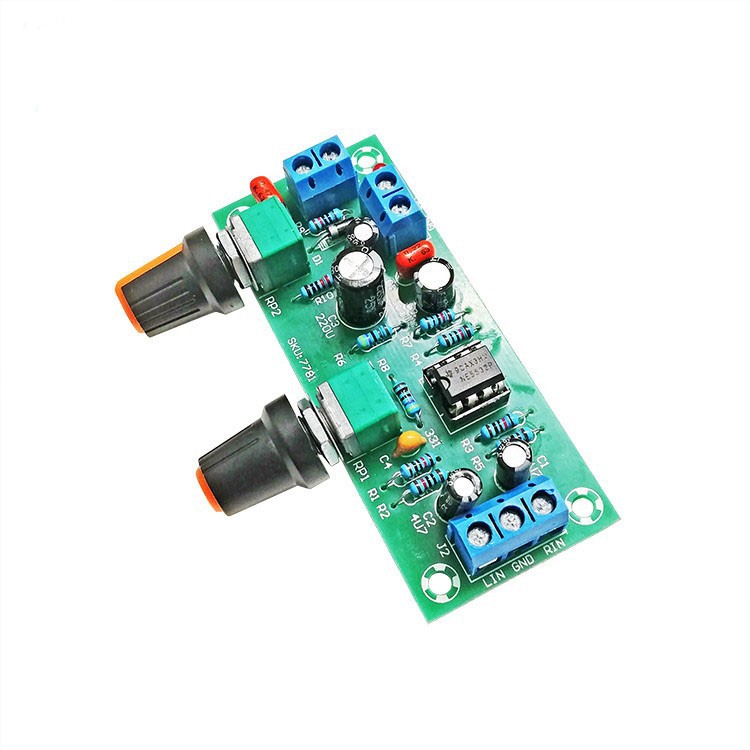

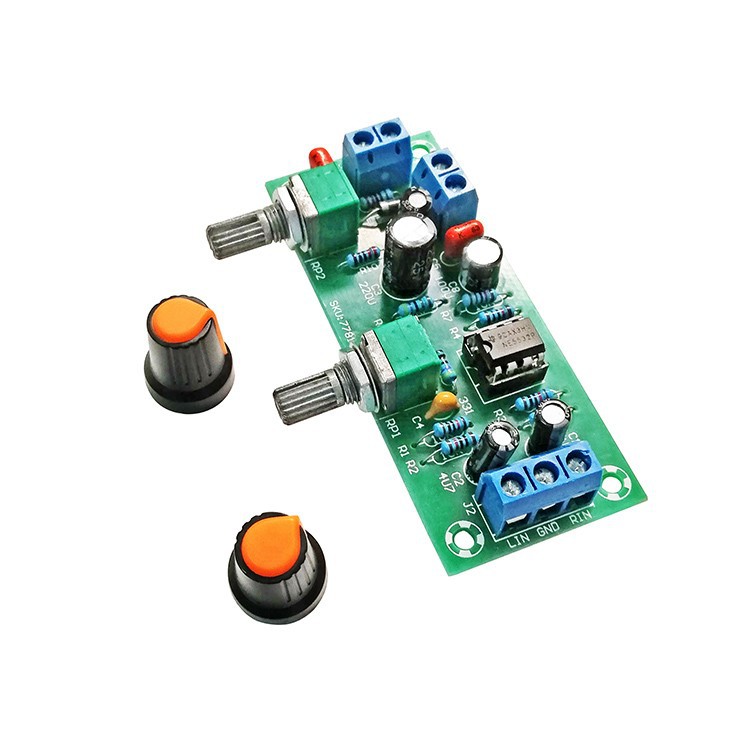

Hifi Pre Amp tone control Subwoofer (2028)
Hifi Pre Amp tone control Subwoofer (2028)
Hifi Pre Amp tone control Subwoofer (2028)
Hifi Pre Amp tone control Subwoofer (2028)
Hifi Pre Amp tone control Subwoofer (2028)
Hifi Pre Amp tone control Subwoofer (2028)
