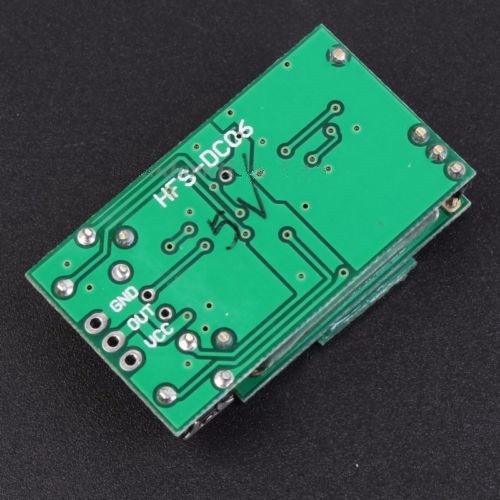

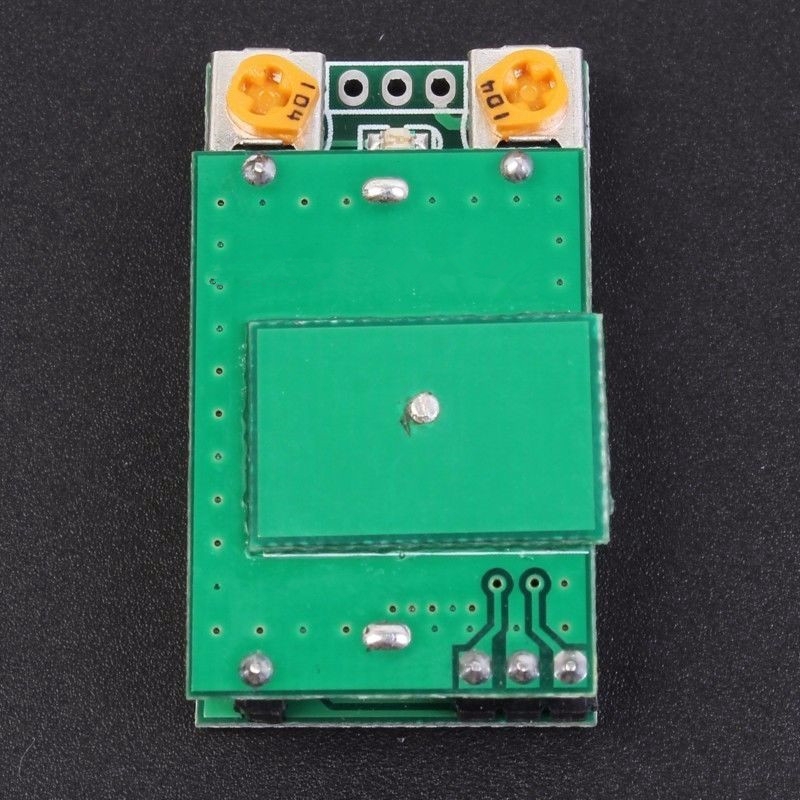

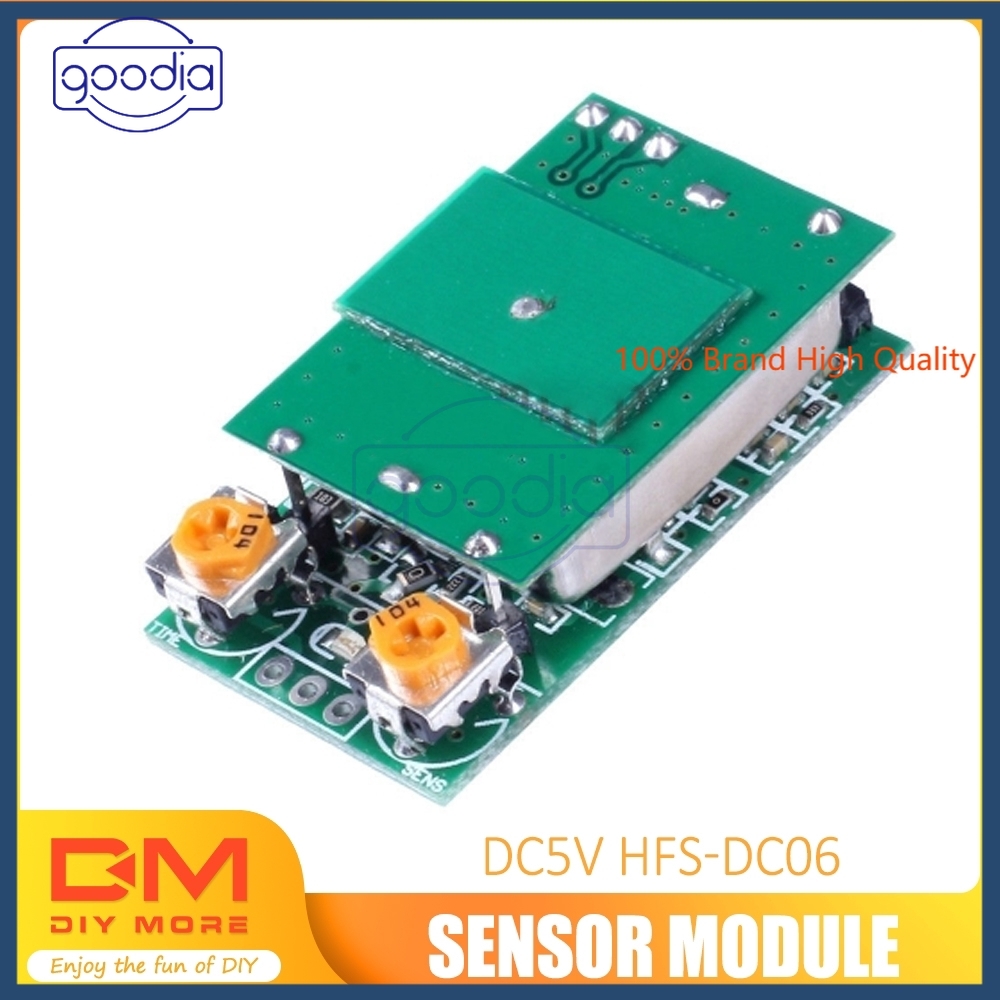

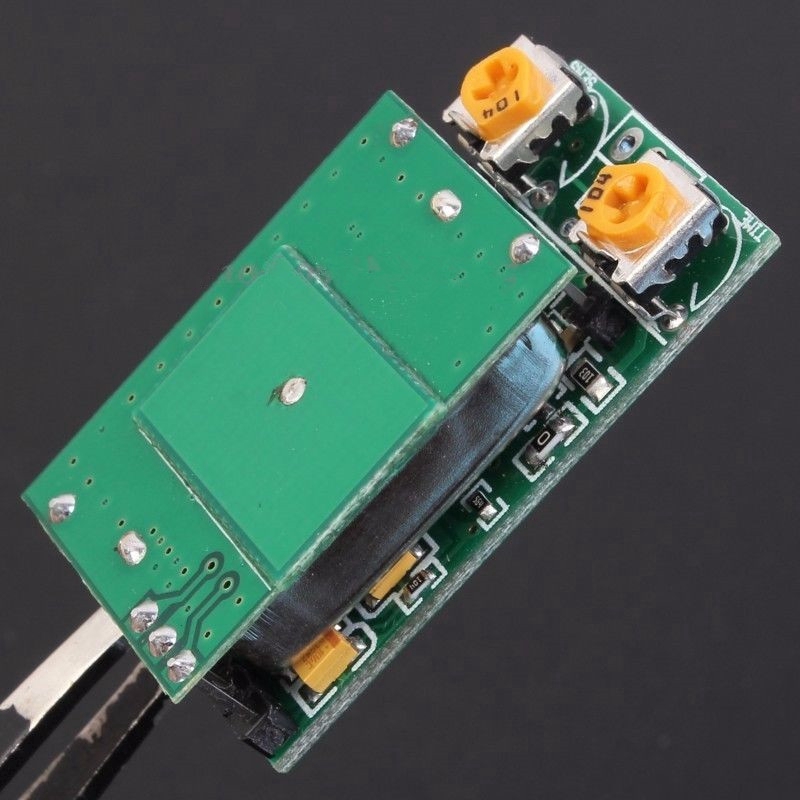

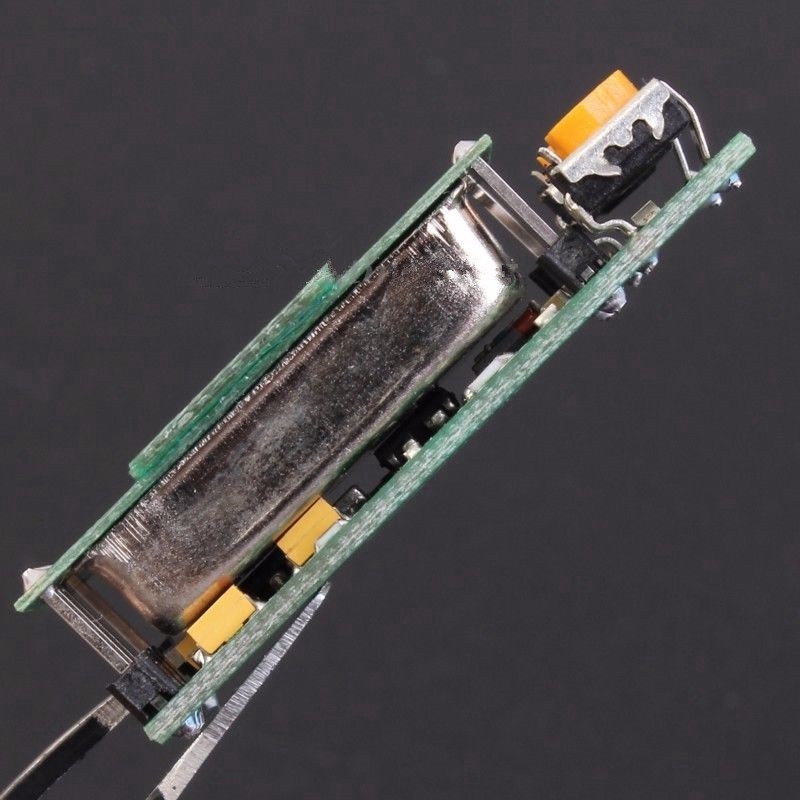

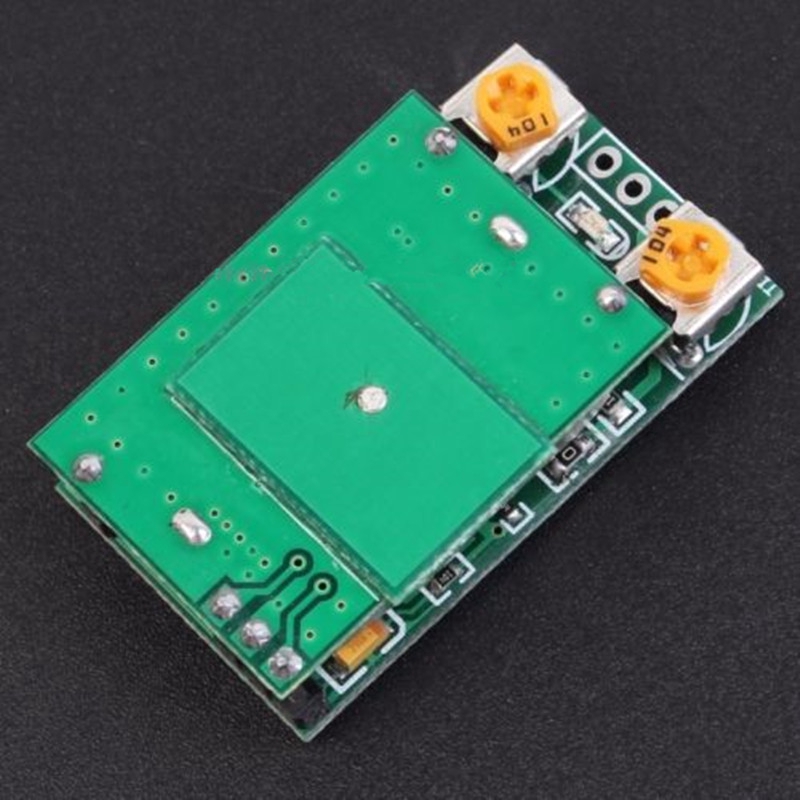

Detail Hfs-Dc06 Modul Sensor Radar Gelombang Microwave Dc 5v 39x22 X 11mm 5.8ghz Ism
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickProduct Introduction:
1.Model:HFS-DC06
2.Frequency:5.8G
3.Waveband:ISM band
4.Size:39*22*11mm
5.Input Voltage:DC 5V
6.Minimum Input Current:30mA
7.Output Type:High level signal
8.Connection Type:VCC connects with power positive,GND connects with negative;GND and OUT connect with level signal outptut
9.Installation Height:2-6m
10.Sensing Distance:right forward 12m
11.Sensing Angle:right forward cone 360 degree
12.Sensing Time:2s
Notice:
1.Please use more than 30mA current power supply to drive this module,and voltage should be stable
2.It is not advisable to install this module by the side of large scale metal,and please don't put it to completely close metal shell,or its performance will be destroyed
Package included:
1*Microwave Radar Sensor Module DC 5V 39*22*11mm 5.8GHz ISM Waveband
