HEF4027BP DIP-16 NXP ORIGINAL HEF 4027 BP DIP 16 IC FLIP FLOP

Detail HEF4027BP DIP-16 NXP ORIGINAL HEF 4027 BP DIP 16 IC FLIP FLOP

Hi #RekanEasyWare ...
SKU: EP001836

*** Bismillaah ...
Item ini merupakan pre order. Terima kasih. ***

The HEF4027B is a dual positive-edge triggered JK flip-flop featuring independent set direct (nSD), clear direct (nCD), clock inputs (nCP) and complementary outputs (nQ and nQ). Data is accepted when nCP is LOW, and transferred to the output on the positive-going edge of the clock. The asynchronous clear-direct (nCD) and set-direct (nSD) are independent and override the nJ, nK, and nCP inputs. Schmitt-trigger action in the clock input makes the circuit highly tolerant to slower clock rise and fall times. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VDD.

Spesifications :
- Manufacturer: NXP USA Inc.
- Manufacturer Product Number: HEF4027BP,652
- Detailed Description: Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-DIP (0.300", 7.62mm)
- Function: Set(Preset) and Reset
- Type: JK Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 30 MHz
- Max Propagation Delay @ V, Max CL: 60ns @ 15V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 3mA, 3mA
- Voltage - Supply: 3V ~ 15V
- Current - Quiescent (Iq): 16 µA
- Input Capacitance: 7.5 pF
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Supplier Device Package: 16-DIP

Package :
- 1x HEF4027BP DIP-16

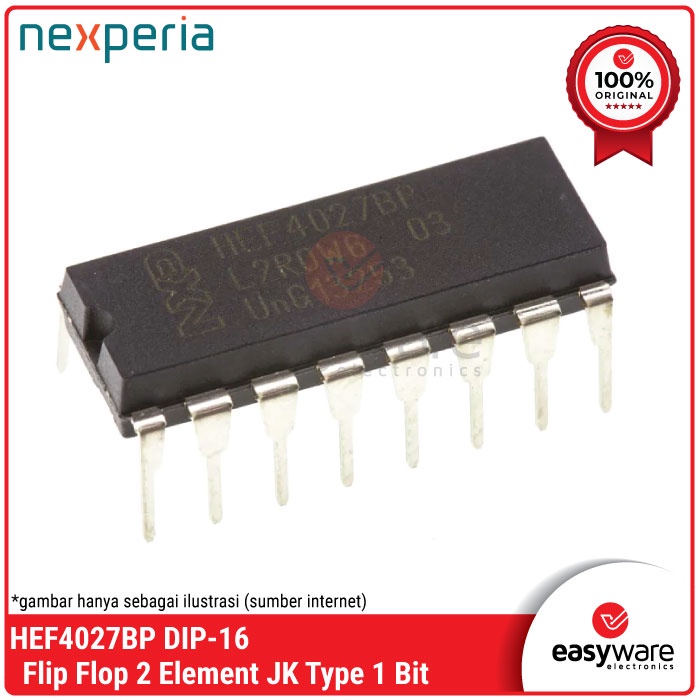

Gambar produk
