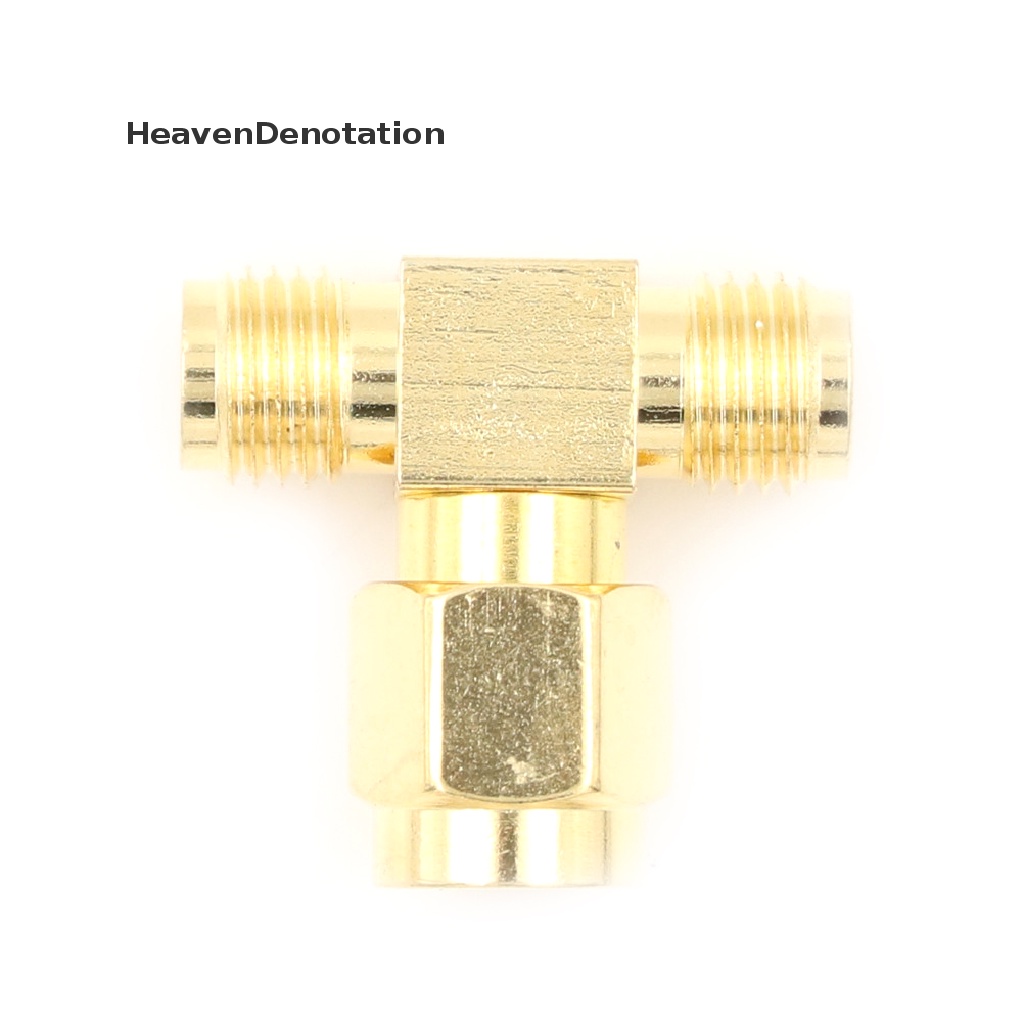

Detail [HeavenDenotation] SMA Male to 2 Double SMA Female T Type RF Coaxial Connector SMA Plug to Jack 3 Way

Temperature range from: -65 to +165 C (PE Cable -40 to +85 degree C)
Vibration: MIL-STD-202, Method 213
Characteristic impedance: 50 Omega
Frequency range from: DC to 12.4GHz (semi rigid cable 0 to 18GHz)
Working voltage: 335V max (effective value)
Pressure: 1000V RMS (minimum sea level)

Contact resistance
The inner conductor between less than 3 m.
The outer conductor are less than 2 m.
The insulation resistance is greater than or equal to 5000M.
The insertion loss is less than 0.15 dB/6GH

Packing: 1Pcs
