Heatsink PS5 SSD nvme m.2 PNY XLR8 PS5 SSD Cover w Integrated Heatsink

Detail Heatsink PS5 SSD nvme m.2 PNY XLR8 PS5 SSD Cover w Integrated Heatsink

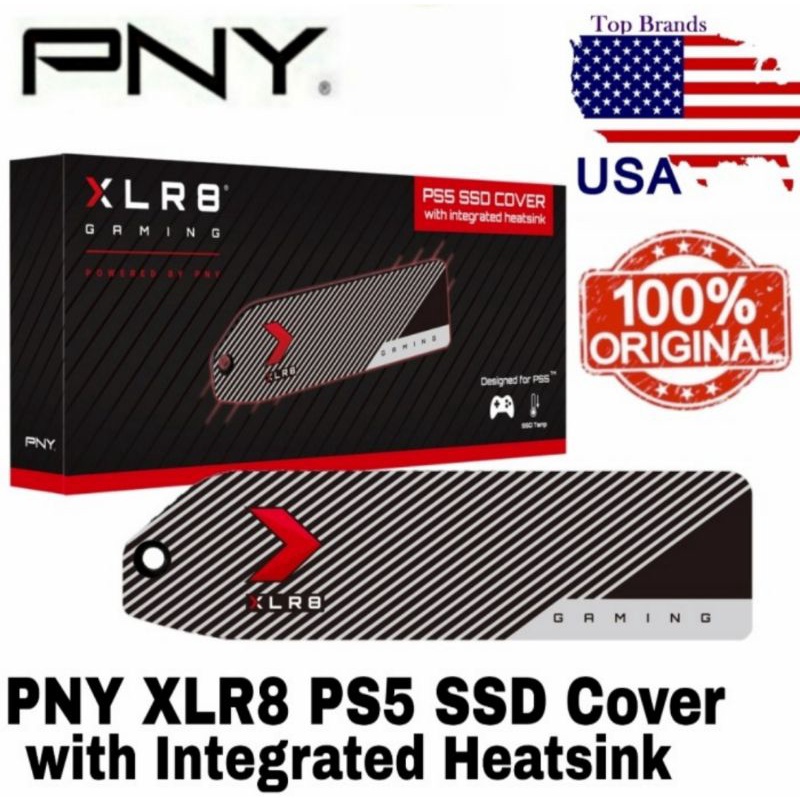

PNY XLR8 PS5 SSD Cover with Integrated HeatsinkPart No : M22110PSVHS-XR-RB

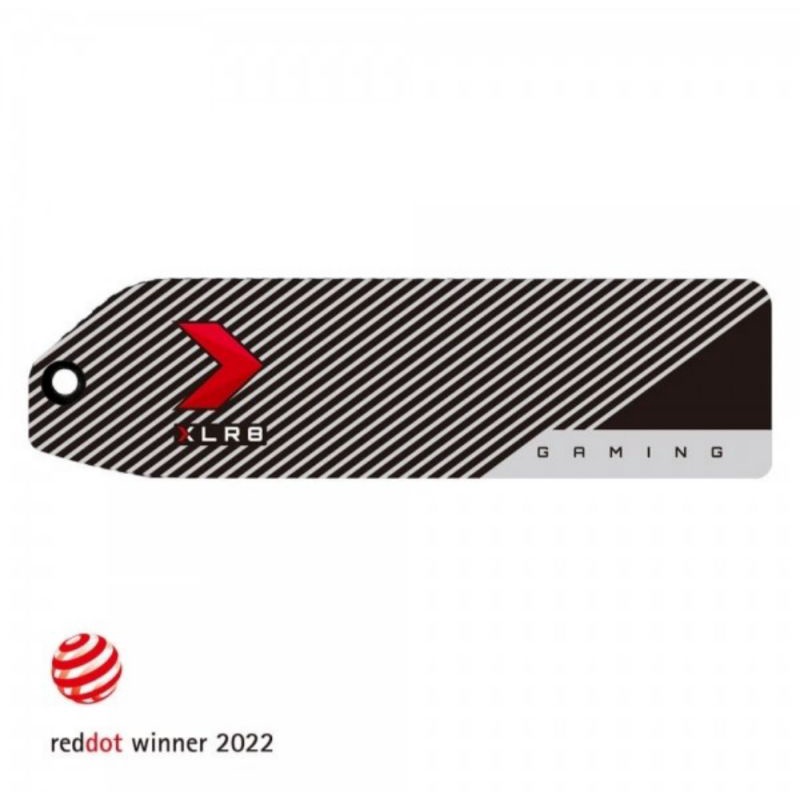

Red Dot Award Winner 2022.
Design to integrate PS5 SSD cover & Heatsink.
Greatly improves cooling efficiency. Included a spare screw and thermal pad.
Compare to no heatsink, cools downs the SSD over 40%
*Recommended SSD: XLR8 CS3140 Gen 4x4

Specification

Form Factor

Compatibile with M.2 22110, 2280, 2260, 2242, 2230
Single / double side SSD

Package Dimensions (L×W×H)

170 x 77 x 24mm

Product Dimensions (L×W×H)

126 x 33.2 x 13.4 mm (Heatsink)
96 x 22 x 1mm (Thermal pad)

Weight

72.6 g (Heatsink)
5.2 g (Thermal pad)

Certifications

REACH, RoHS

Included in Box

Spare screws x1 pc & Thermal pad x 1 pc (1.5W/mk)

Note

* Cooling efficiency Based on PNY internal testing on PNY CS3140, performance may be lower depending on the host devices and user’s settings and configurations
