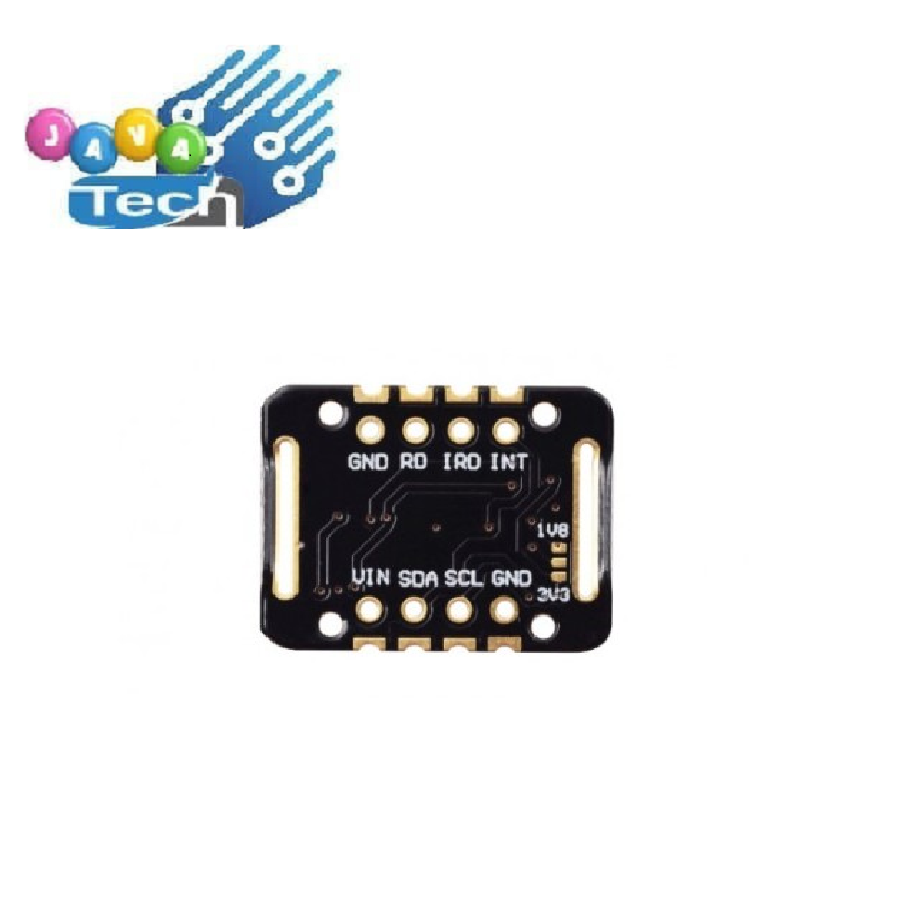

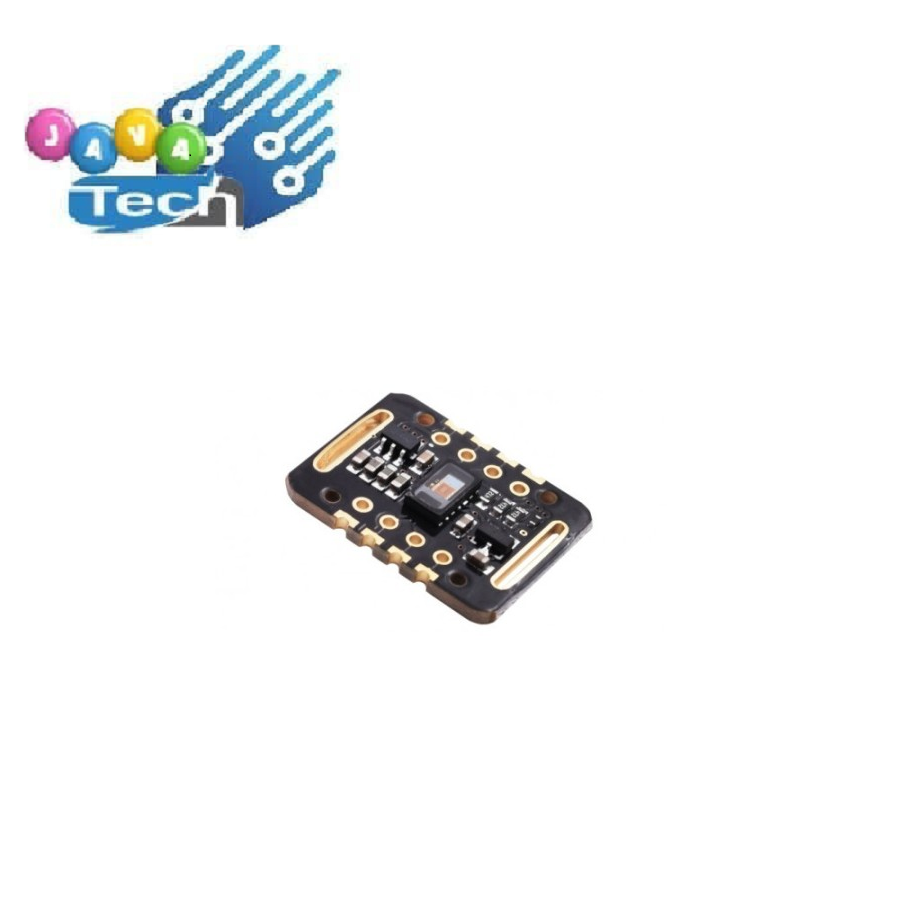

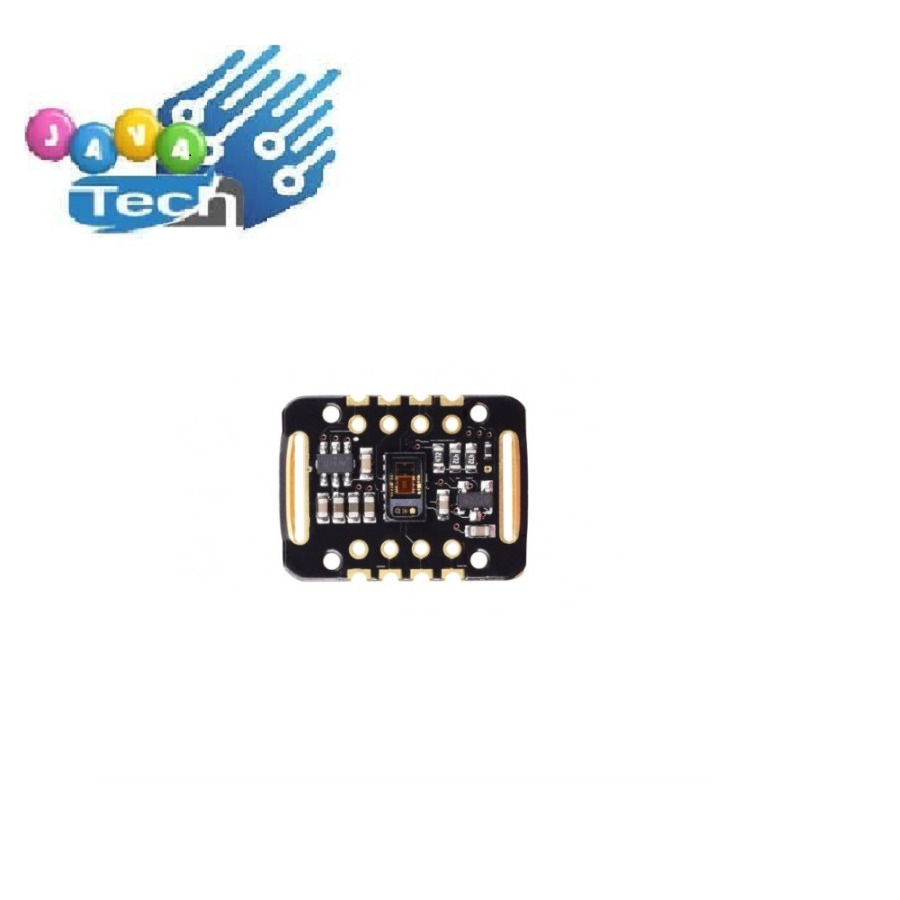

Heart Rate Sensor MAX30102 Pulse Oximeter Module Sensor Detak Jantung

Detail Heart Rate Sensor MAX30102 Pulse Oximeter Module Sensor Detak Jantung

The MAX30102 can be used as an oximeter by measuring the oxygen concentration in the blood (SpO2 percentage) and also can be used as heart rate sensor (beats per minute). The device has two LEDs, one emitting red light, another emitting infrared light. For pulse rate, only the infrared light is needed. Both the red light and infrared light is used to measure oxygen levels in the blood.

When the heart pumps blood, there is an increase in oxygenated blood as a result of having more blood. As the heart relaxes, the volume of oxygenated blood also decreases. By knowing the time between the increase and decrease of oxygenated blood, the pulse rate is determined.

It turns out, oxygenated blood absorbs more infrared light and passes more red light while deoxygenated blood absorbs red light and passes more infrared light. This is the main function of the MAX30102: it reads the absorption levels for both light sources and store them in a buffer that can be read via I2C.

Quick Spec
Working voltage: 1.8-5.5V
Integrates both complete pulse oximeter and heart rate sensor including the optics. No need for a separate probe
Ultra-Low-Power Operation Increases Battery Life
Interface: I2C
LED Peak Wavelength: 660nm/880nm
Operating Temperature Range: -40°C ~ +85°C
Dimensions: 20.3 x 15.2mm
Net Worth: 3g
