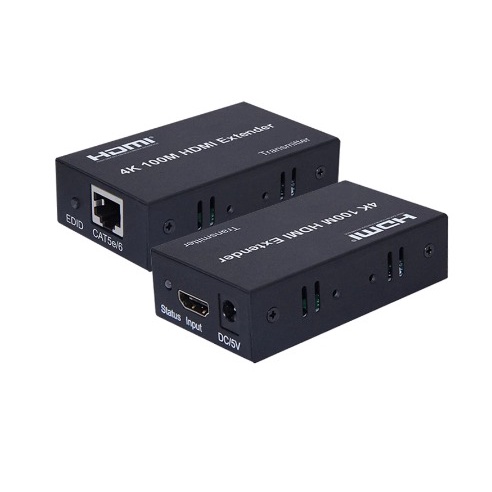

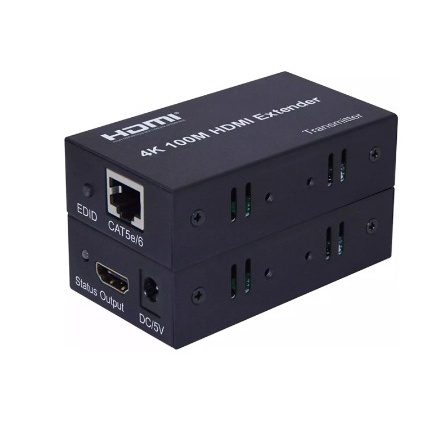

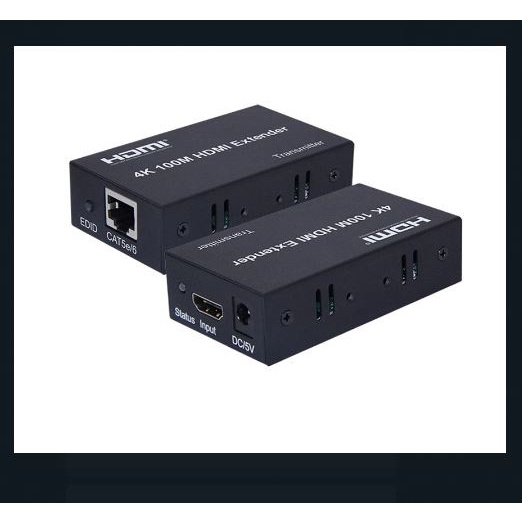

Hdtv Extender over NB lan cat 5e 6 6e 6a single tx rx 100 meter 4k 2k adaptor - Hdtv to rj45 100m UHD adapter

Detail Hdtv Extender over NB lan cat 5e 6 6e 6a single tx rx 100 meter 4k 2k adaptor - Hdtv to rj45 100m UHD adapter

Hdtv extender adalah alat yang berupa sepasang konverter dengan fungsi membuat kabel LAN UTP cat 5e/6 sebagai pengganti fungsi Kabel HDMI. Sepasang konverter ini terdiri dari Sender (pengirim) dan Receiver (Penerima).

Features:
1. Support Hdtv 1.4b.
2. 100M long distance transmission
3. Low power consumption, low temperature and high safety.

Specifications:
Length of CAT5e/CAT6 cable between Rx and TX: Up to 100 meters
Hdtv Input : 4K/1080p/720p/576p/576i/480p/480i
Hdtv Output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth : 340MHz
Max baud rate : 3.4x3Gbps
Input video signal : 0.5~1.5Volts p-p
Output DDC signal : 5Volts p-p (TTL)
Input Hdtv cable distance : ≤10m AWG26 HDMI standard cable
Output Hdtv cable distance : ≤10m AWG26 HDMI standard cable
TX Max working current : 350mA
RX Max working current : 200mA
Power adapter format : Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range : (-15 to +55℃)
Operating Humidity range : 5 to 90%RH (No Condensation)
Dimension (L x W x H) : 81x47x22 (mm)

Package included:
1 x 4K 100M Hdtv Transmitter
1 x 4K 100M Hdtv Receiver
2 x Power Adapter 5V/1A
1 x User Manual
