HDMI Video Wall Controller & Player 3x3 4K 3840x2160 30Hz HDMI 1.4 HDCP 1.4 Support 3x3, 1x3, 1x4, 2x3, 2x4, 3x2, 4x2 mode with 1 HDMI input 9 HDMI Output

Detail HDMI Video Wall Controller & Player 3x3 4K 3840x2160 30Hz HDMI 1.4 HDCP 1.4 Support 3x3, 1x3, 1x4, 2x3, 2x4, 3x2, 4x2 mode with 1 HDMI input 9 HDMI Output

HDMI 3X3 WALL CONTOLLER & MEDIA PLAYER 4K 13 MULTITYPE DISPLAY MODE

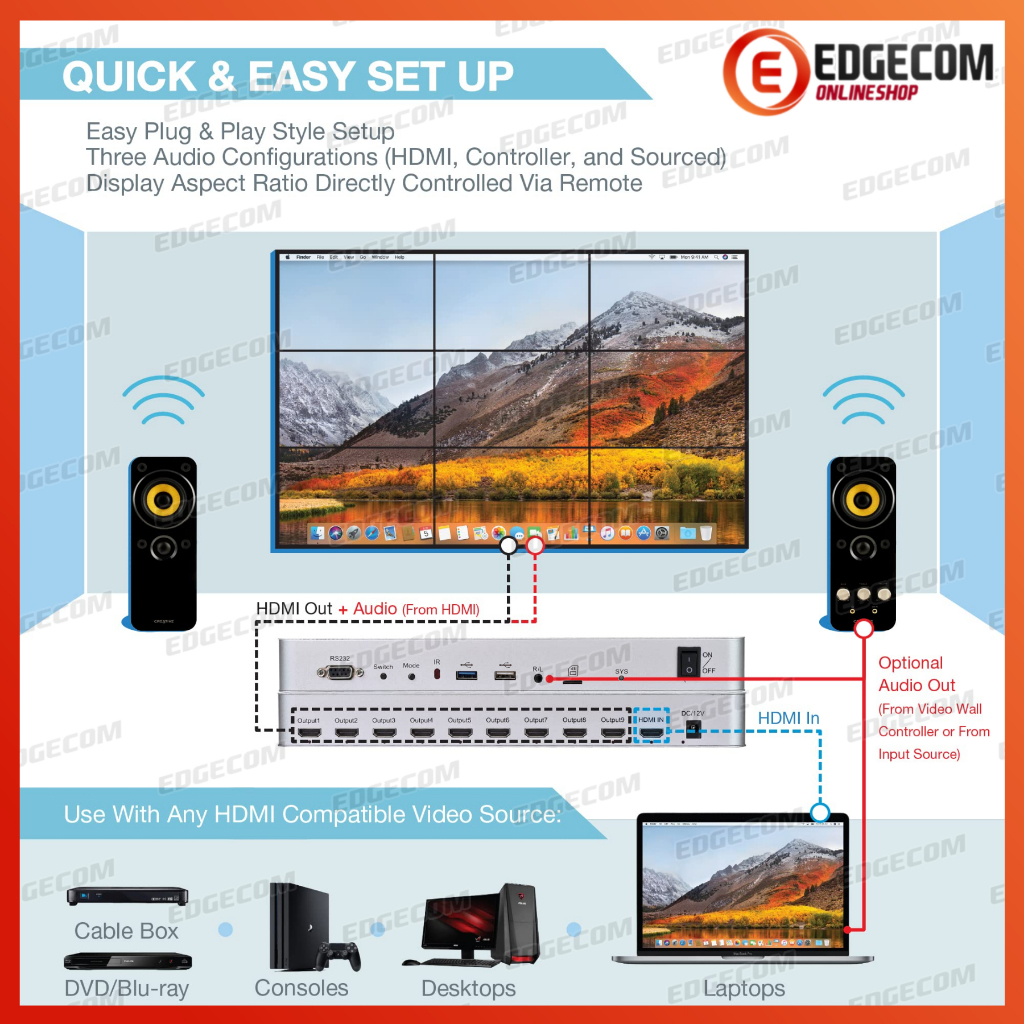

Easy to operate: plug and play, no driver installation. supports 1-way HDMI or DVI input and 9-way HDMI output signal, connecting to 9 LCD TV

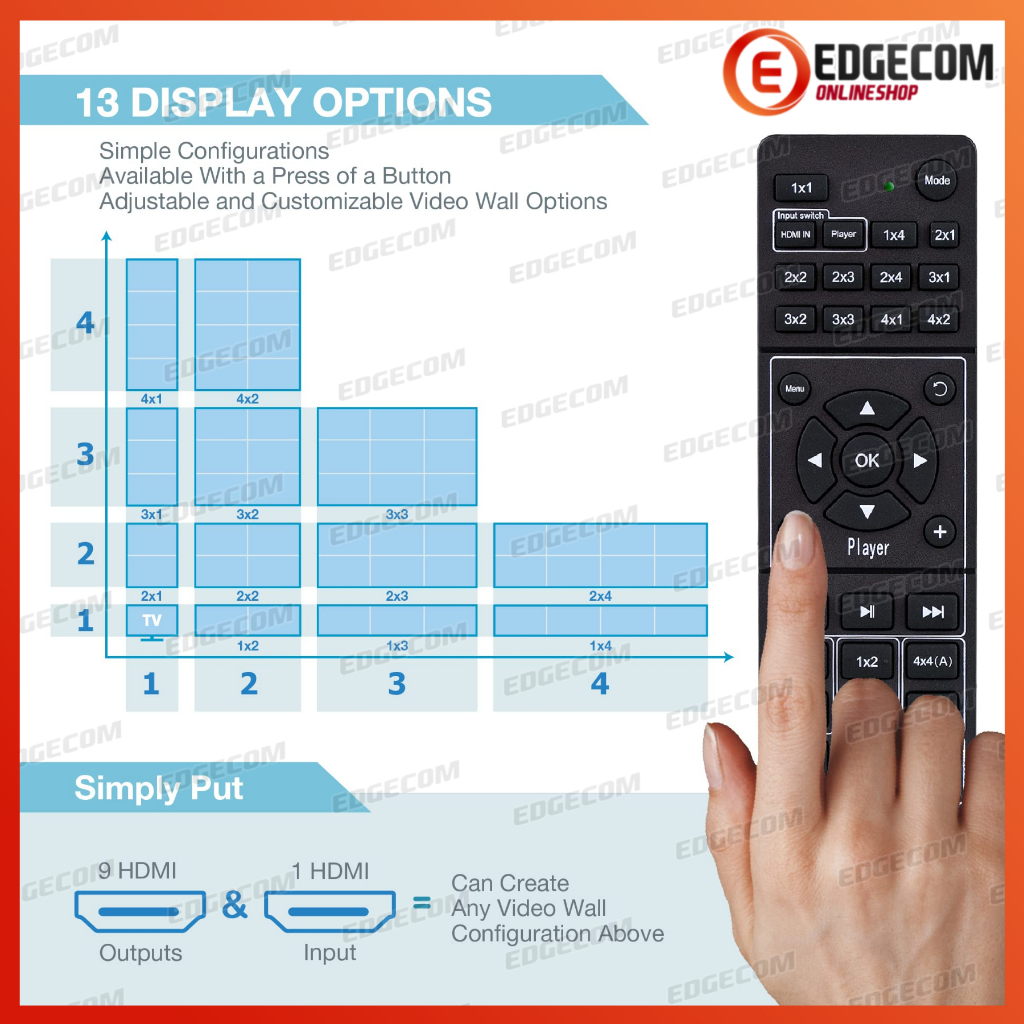

13 display modes: support 1x1,1x2,1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 3x1, 3x2, 3x3, 4x1, 4x2 providing diversities on the display options.

Input compliant with HDMI 1.4 and HDCP 1.4, Input Video Resolutions: 1920x1080P 50/60Hz, 3840x2160P 25/30Hz; Output Resolution: 1920x1080P 50/60Hz. Support 8/10/12 bit deep color, support U disk and IR control.

The player support Wifi, DLAN connection and 2-ways USB input

Support function of audio extraction, analog 3.5mm audio output, Supported Audio Formats - PCM 2.0.



Specification:

HDMI input resolution: the highest support 3840x2160/30Hz

HDMI output resolution: the highest support1920x1080/60Hz

Support audio format: PCM2.0

Input cable length: ≤8m AWG26 HDMI standard cable

Output cable length: ≤10M,AWG26 HDMI standard cable

Power adapter specifications: input AC (50HZ, 60HZ) 100V-240V, output 12VDC/3A

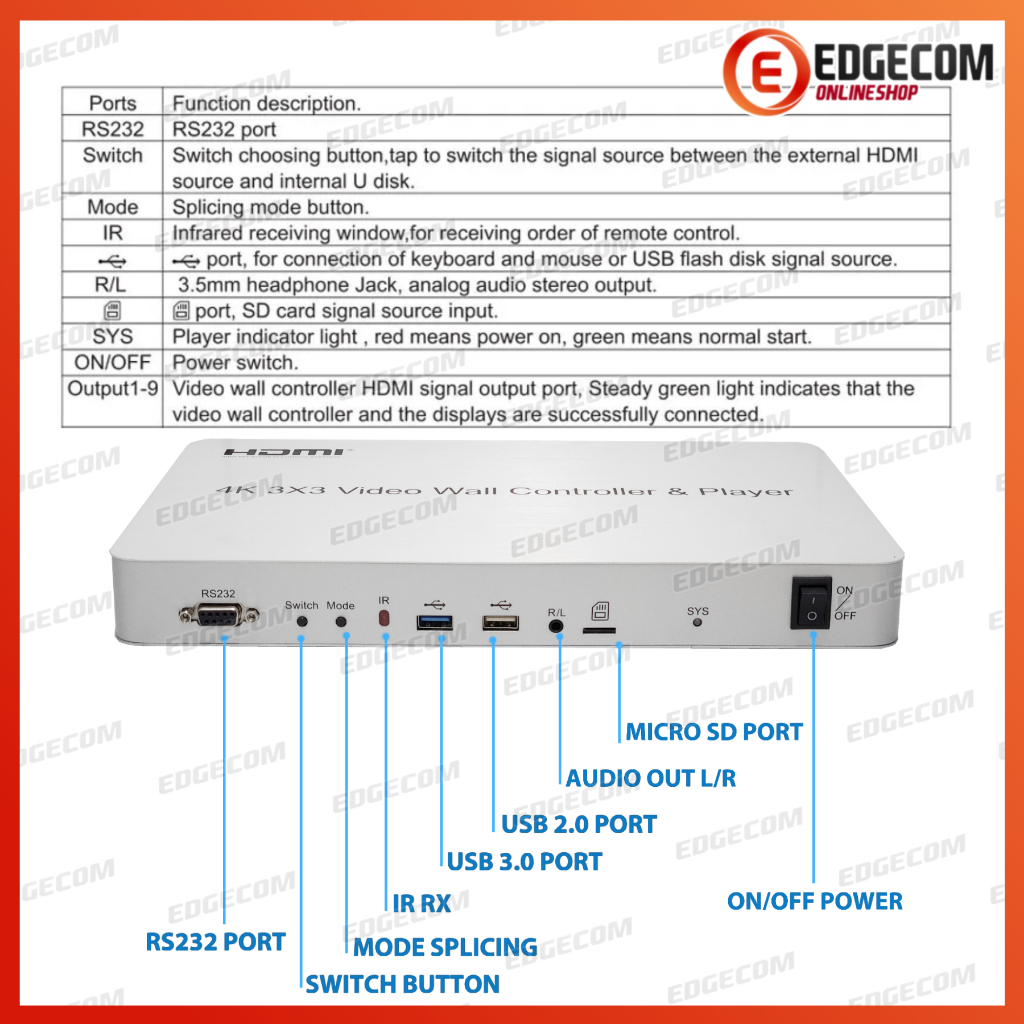

Ports

RS232

Switch

Mode

IR

USB1-2

R/L

SD

SYS

ON/OFF

Output 1-9

HDMI IN

DC/12V



Package include:

1*4K 3×3 video wall controller & player

1*Remote controller

1*12V DC power adaptor

1*User’s manual
